Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
54

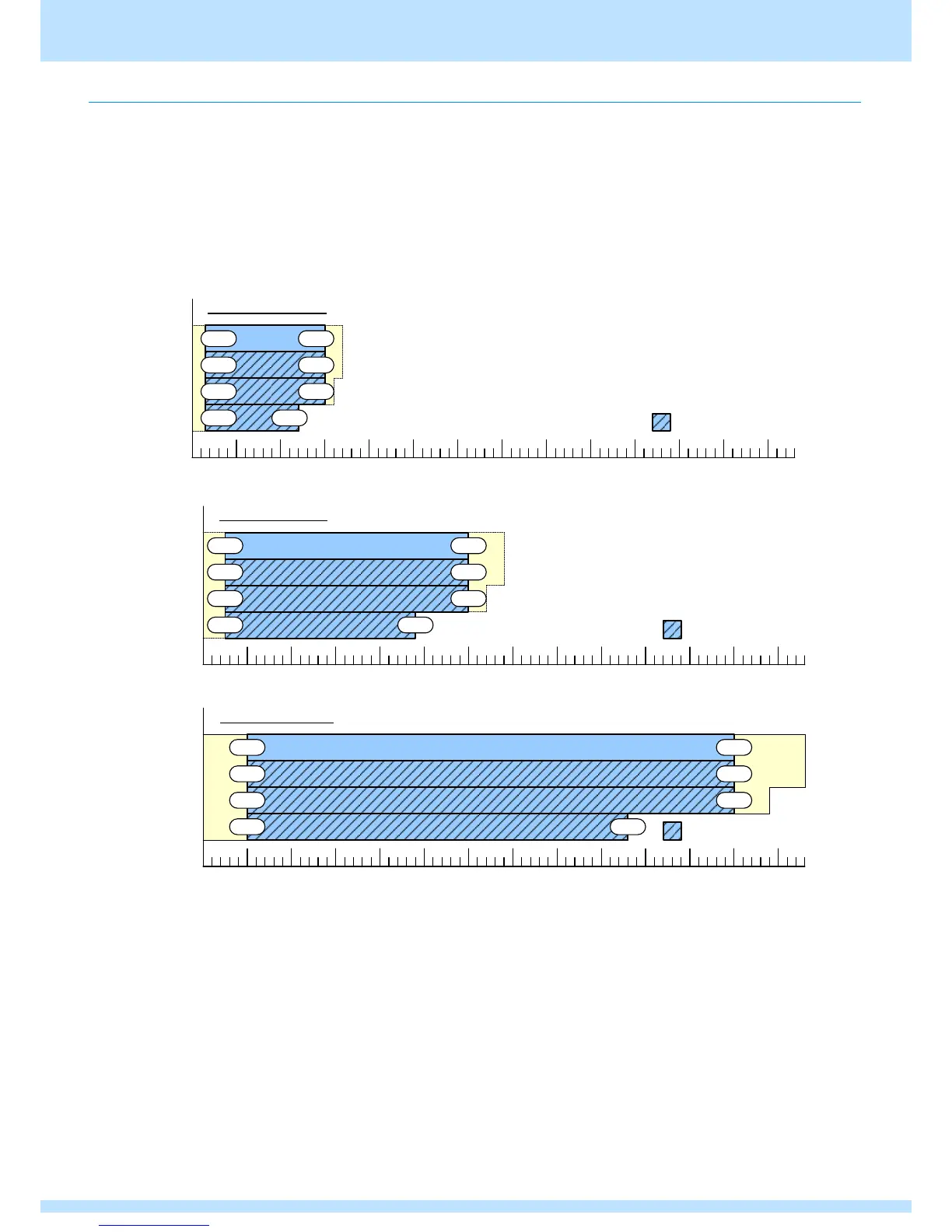

4.1.10 Relationship between Pattern Rendering Bit Length and Dot Clock
The dot clock is limited by the pattern rendering bit length (color depth) and dot clock operation mode (DotClk Mode) as
shown in the following figures. Furthermore, when the output video bit length (video width) is smaller than the pattern
rendering bit length (color depth), data thinning occurs.
For details on the dot clock operation mode (DotClk Mode) and pattern bit length (color depth), refer to “2.1 ALL OUTPUT”.
For details on the output video bit length (video width), refer to “4.1.7 HDMI data transfer method”.
1) When the output video bit length (video width) is 8 bits
To Next Page
