Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
76
4.2.9 Relationship between Pattern Rendering Bit Length and Dot Clock
The dot clock is limited by the pattern rendering bit length (color depth) and dot clock operation mode (DotClk Mode) as
shown below. Furthermore, when the output bit length (video width) of the DisplayPort interface is smaller than the pattern
rendering bit length (color depth), data thinning occurs.
For details on the dot clock operation mode (DotClk Mode) and pattern bit length (color depth), refer to “2.1 ALL OUTPUT”.
For details on the video width, refer to “4.2.5 DisplayPort output setting items”.
● DisplayPort Unit VM-1876-M1

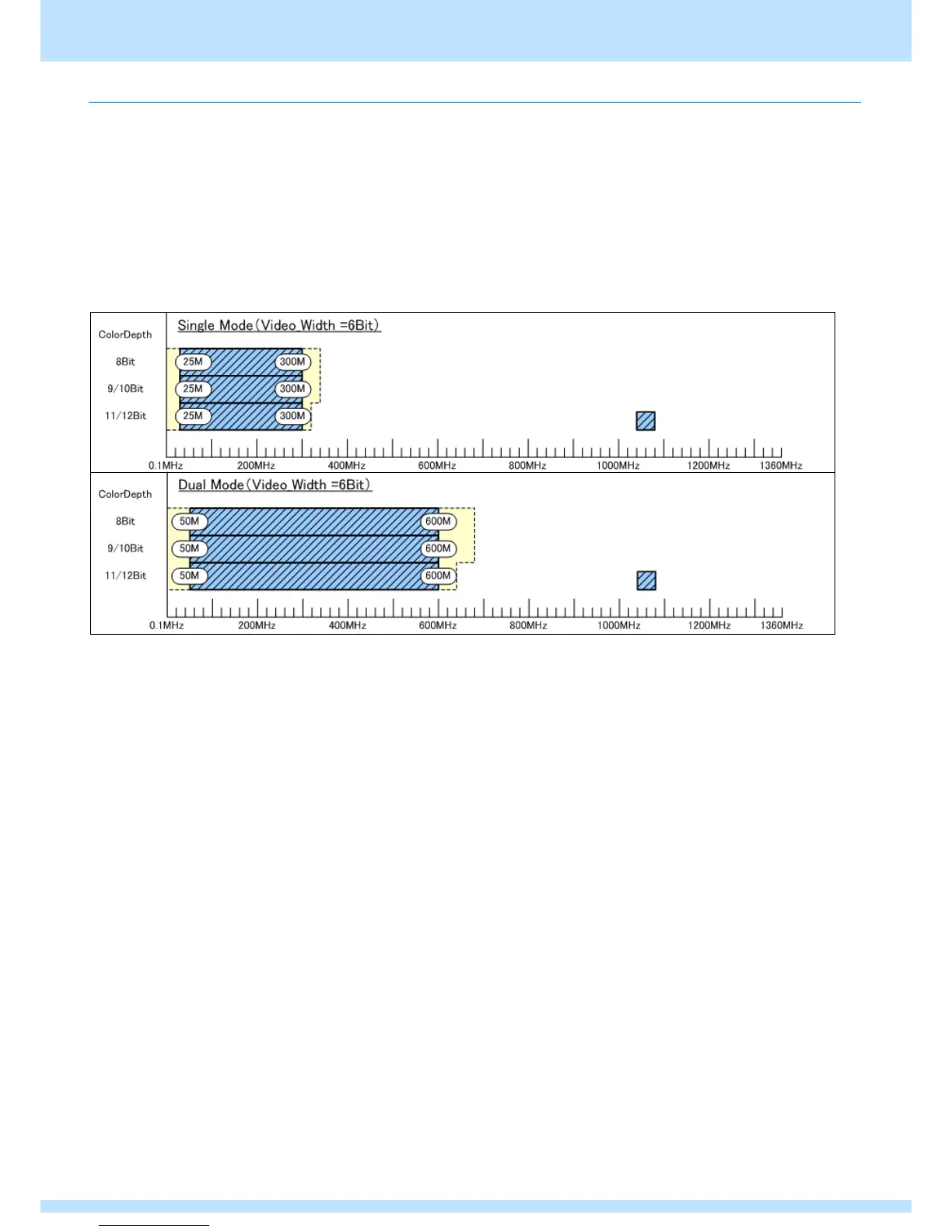

1) When the video width is 6 bits
Data is truncated.
Data is truncated.
