Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
77

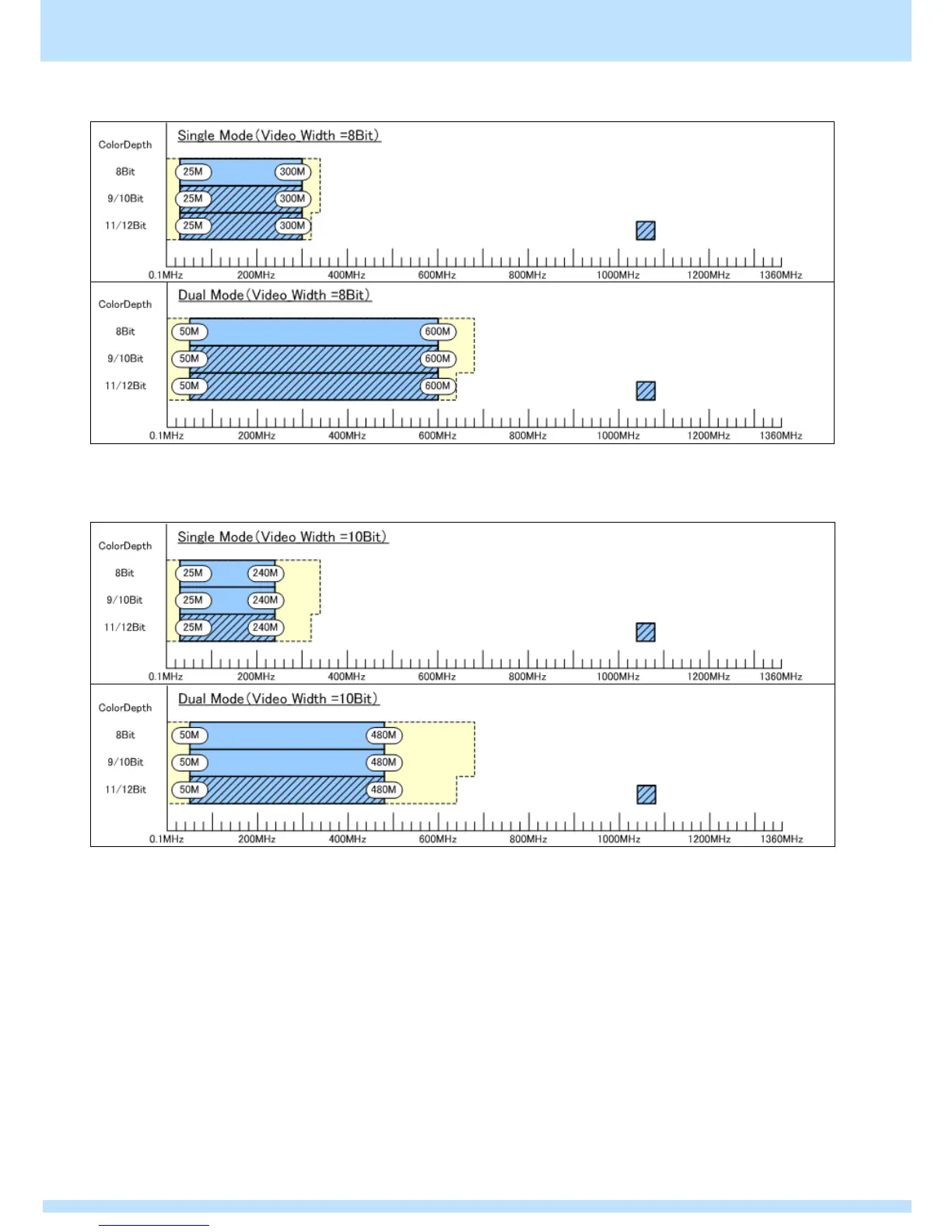

2) When the video width is 8 bits
3) When the video width is 10 bits
Data is truncated.
Data is truncated.
Data is truncated.
When color depth < video width (= 10 bit), "0" data
is added at the lower level.
When color depth < video width (= 10 bit), "0" data
is added at the lower level.
Data is truncated.
