Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
143
4.6.3 Connection method
The following shows an image of connecting the multi link connectors.

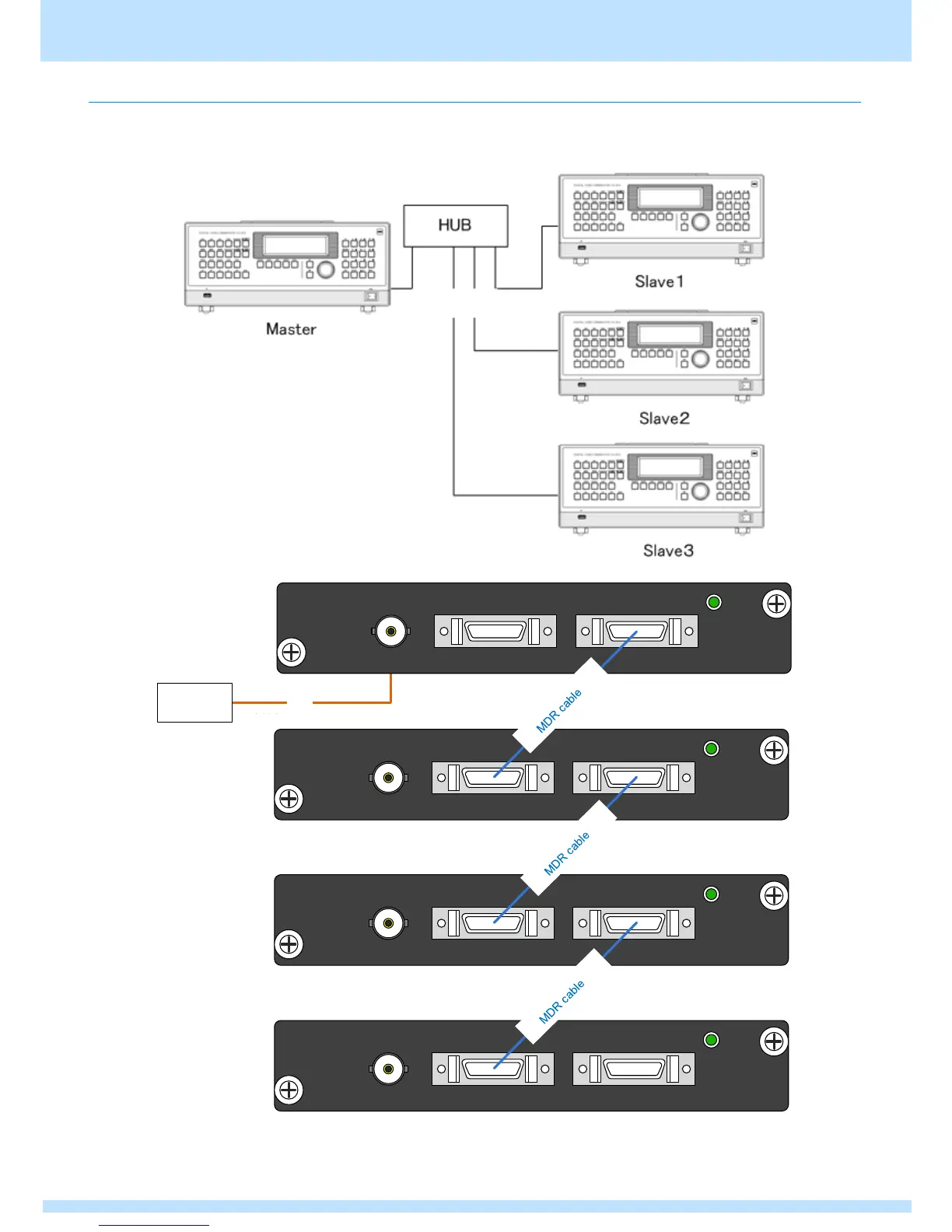

● VG unit connection diagram
The master and slave devices are connected by LAN (straight cable) via a hub.
For details on how to set the master and slave devices, refer to “4.6.7 Synchronization unit setting items”.
● VM-1876-MX connection diagram
VM-1876-MX
ST-BY
REF IN
GENLOCK IN
LINK IN LINK OUT
VM-1876-MX
ST-BY
REF IN
GENLOCK IN
LINK IN LINK OUT
VM-1876-MX
ST-BY
REF IN
GENLOCK IN
LINK IN LINK OUT
MDR
ケーブル
MDR
ケーブル
同期信号
発生器
CS
※未対応
Master
Slave1
Slave2
VM-1876-MX
ST-BY
REF IN
GENLOCK IN
LINK IN LINK OUT
Slave3
MDR
ケーブル
Straight
*Not supported
Synchronization
signal generator
