Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
66

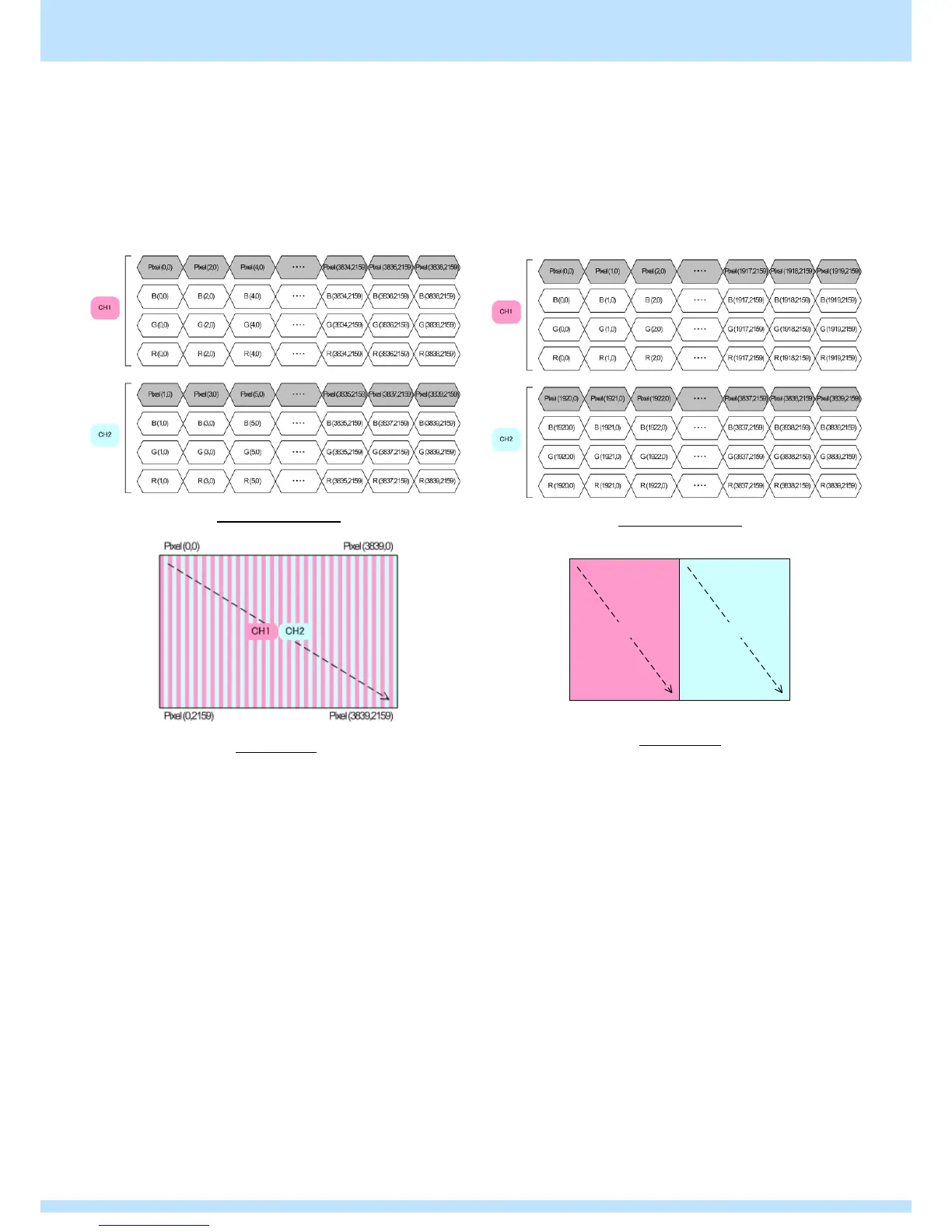

● 《Dual clock mode(DotClk Mode = 2) /
Split Mode5, 7 (ODD/EVEN)》
The signals of channel 1 and channel 2 are matched and
the data is output as an arbitrary timing/pattern.
ODD/EVEN output (split mode = 5, 7) * Select any one of
the values on the left
Data transfer method
Screen panes
● 《Dual clock mode(DotClk Mode = 2) /
Split Mode1, 3, 8, 9
(split into left/right 2 panes)》
The signals of channel 1 and channel 2 are matched and
the data is output as an arbitrary timing/pattern.
Left / right 2 panes output (split mode = 1, 3, 8, 9) * Select
any one of the values on the left
Data transfer method
Screen panes
