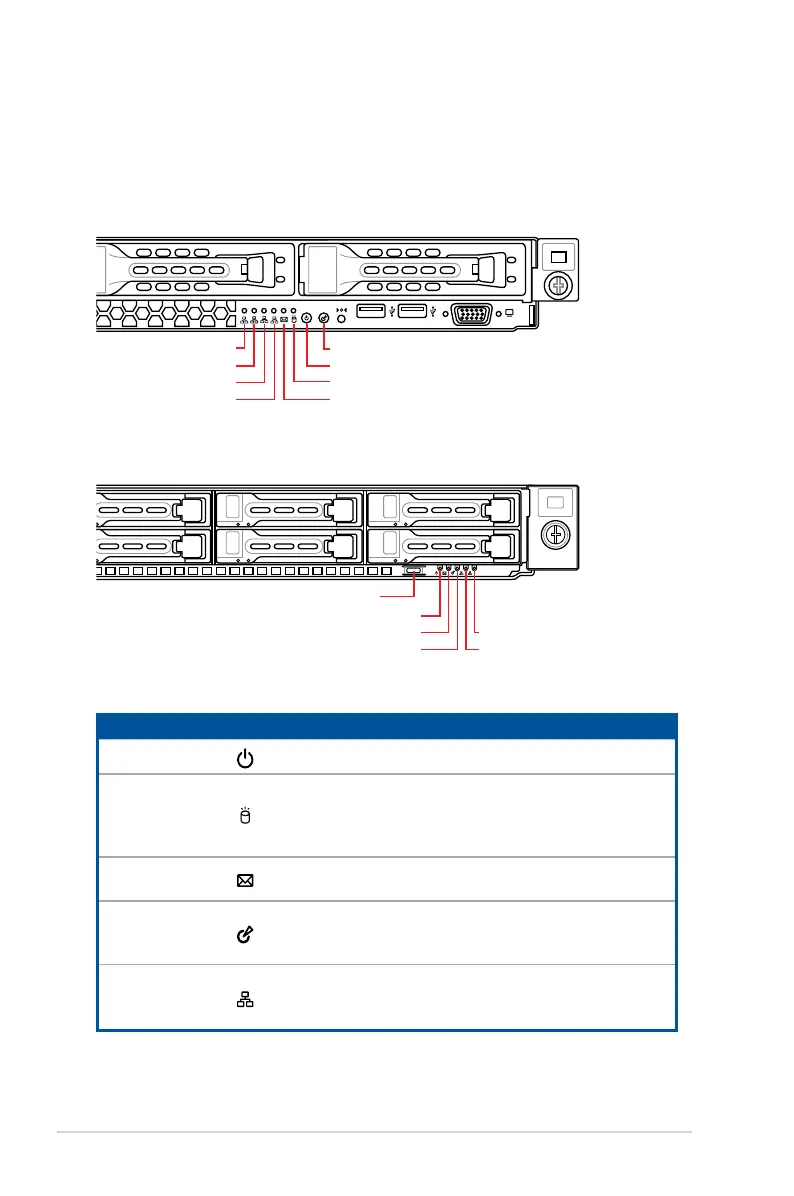

1.7 LED information
1.7.1 Front panel LEDs
LED Icon Display status Description
Power LED
ON System power ON
Storage Device
Access LED
OFF
Blinking
No activity
Read/write data into the storage device
(Does not support storage devices
conencted to the onboard SATA)
Message LED
OFF
ON
System is normal; no incoming event
A hardware monitor event is indicated
Location LED
OFF
ON
Normal status
Location switch is pressed
(Press the location switch again to turn off)
LAN LEDs
OFF
Blinking
ON
No LAN connection
LAN is transmitting or receiving data
LAN connection is present
1
2
3
4
1
2
LAN 2 LED
LAN 1 LED
LAN 4 LED
LAN 3 LED
Message LED
Power button with LED
Location button with LED
Storage device LED
RS700A-E9-RS4
RS700A-E9-RS12
Power LED
Message LED
Location LED
LAN 2 LED
Power button
LAN 1 LED
