Chapter 4: Motherboard Information
4-12
4.3 Internal connectors

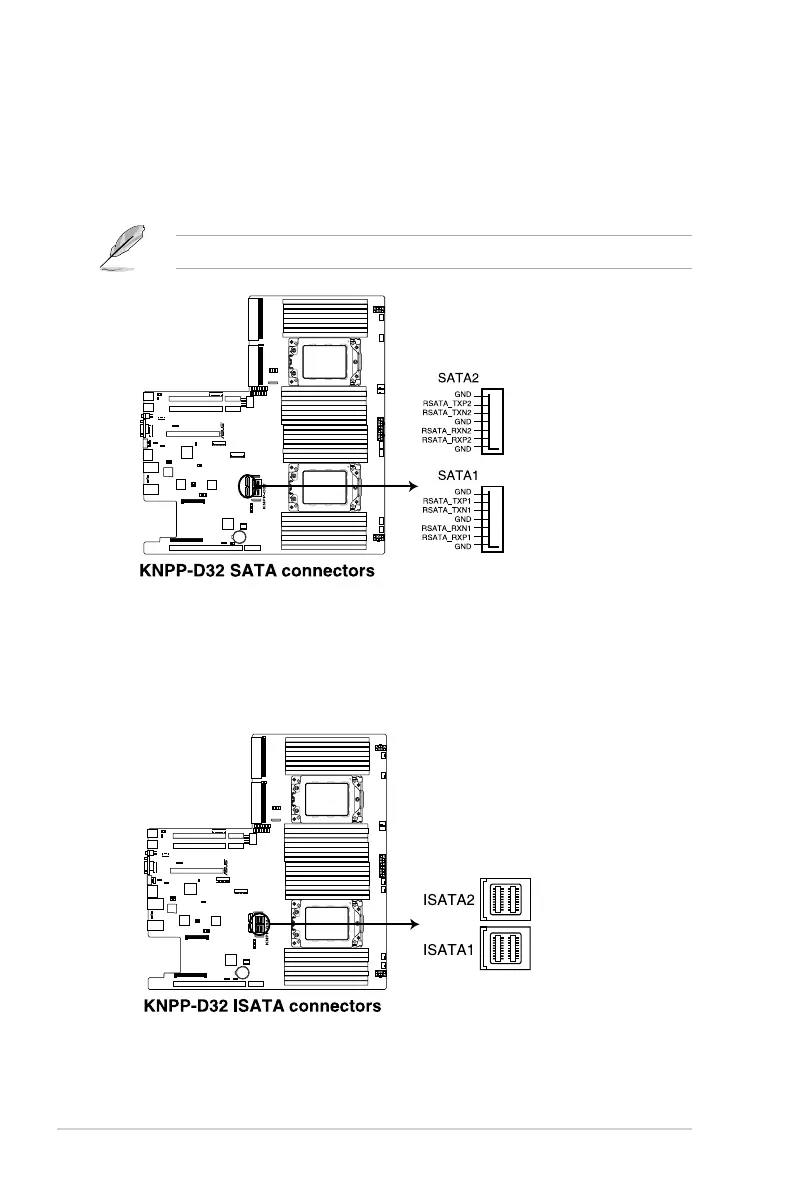

1. Serial ATA connectors (7-pin SATA1-2)
These connectors, controlled by AMD integrated SATA controller, are for the Serial
ATA signal cables for Serial ATA drives (SATA 1 connector is used for the optical drive
by default).
If the SATA M.2 (NGFF1) slot is occupied, the SSATA2 slot will be disabled.
2. Mini-SAS HD connector (ISATA1-2)
This motherboard comes with mini Serial Attached SCSI (SAS) HD connectors, the
storage technology that supports Serial ATA. Each connector supports up to four
devices.
