2-33
ASUS RS700A-E9 Series
2.6 Cable connections
• Thebundledsystemcablesarepre-connectedbeforeshipment.Youdonotneedto
disconnect these cables unless you are going to remove pre-installed components to
install additional devices.
• RefertoChapter4fordetailedinformationontheconnectors.

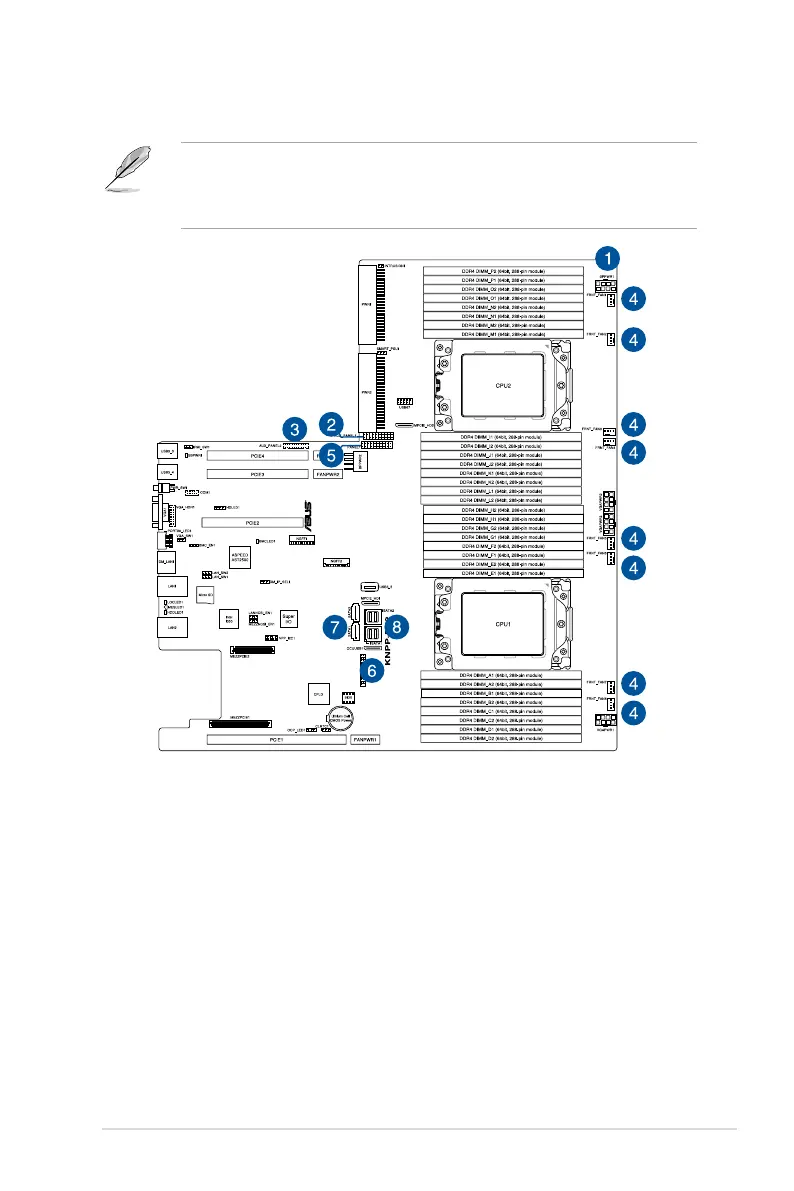

Pre-connected system cables
1. 8-pin BPPWR1 power connector (from power supply to backplane)
2. Auxiliarypanel1connector(frommotherboardtofrontI/Oboard)
3. Auxiliarypanel2connector(frommotherboardtofrontI/Oboard)
4. System fan connectors (from motherboard FAN1-8 to system fans)
5. Panelconnector(frommotherboardtofrontI/Oboard)
6. OCU-USBtoUSBconnector(frommotherboardtofrontI/Oboard)
7. SATAconnectors(frommotherboardtoSATA/SASbackplaneboard)
8. ISATAconnectors(frommotherboardtoSATA/SASbackplaneboard)
