ASUS RS700A-E9 Series
4-13

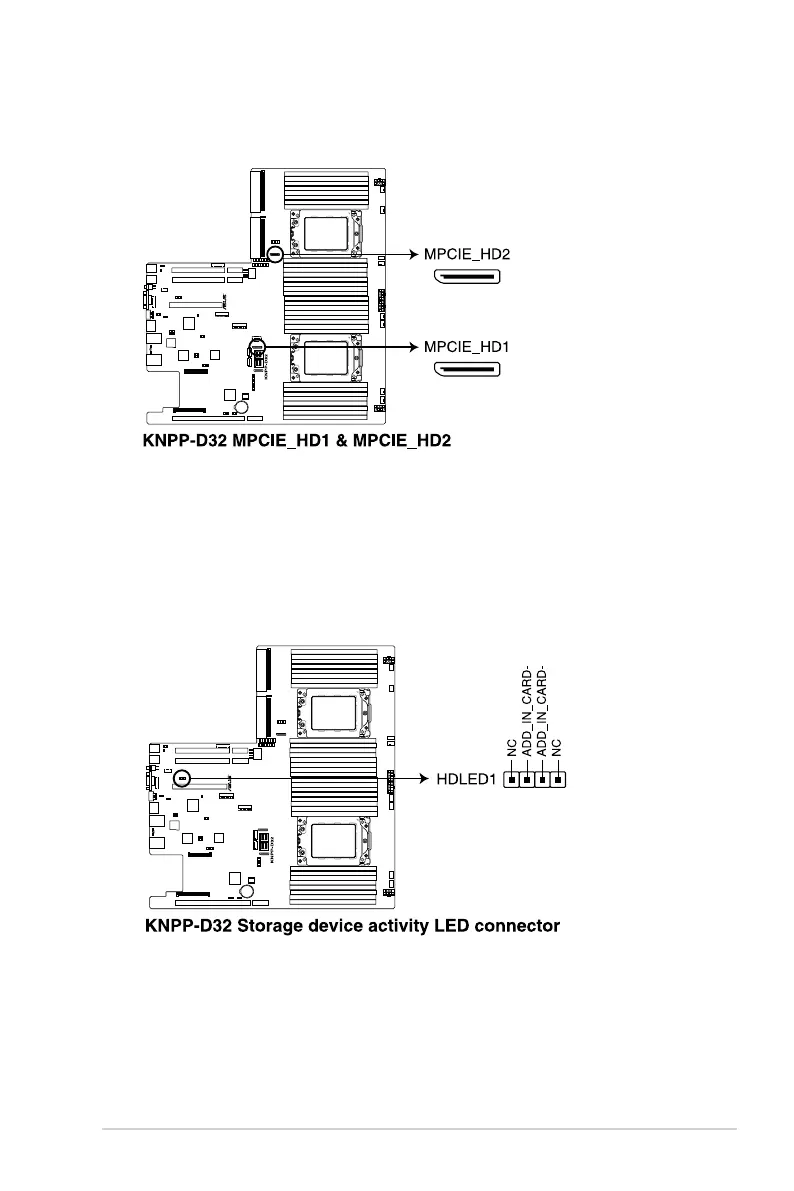

4. Storage device activity LED connector (4-pin HDLED1)
This LED connector is for the storage add-on card cable connected to the SATA or
SAS add-on card. The read or write activities of any device connected to the SATA or
SAS add-on card causes the front panel LED to light up.
3. MPCIE_HD connectors (MPCIE_HD1-2)
The MPCIE_HD connectors allows you to connect NVME storage device.
