Chapter 4: Motherboard Information
4-14

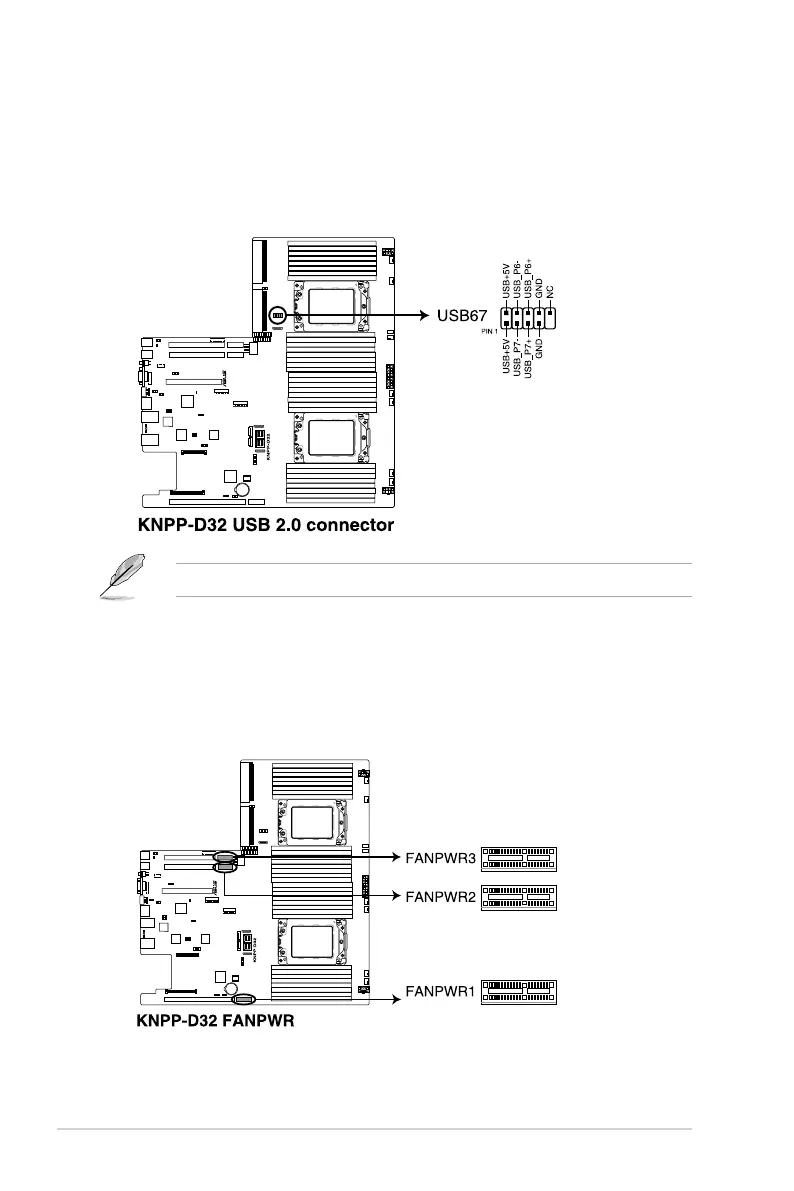

5. USB 2.0 connector (10-1 pin USB67)
This connector is for USB 2.0 ports. Connect the USB module cable to the connector,
and then install the module to a slot opening at the back of the system chassis. The
USB connectors comply with USB 2.0 specication that supports up to 480 Mbps
connection speed.
6. Fan power connectors (FANPWR1-3)
These connectors are for the power supply plugs that connects to additional fans. The
power supply plugs are designed to t these connectors in only one orientation. Find
the proper orientation and push down rmly until the connectors completely t.
The USB port module is purchased separately.
