2-21

ASUS RS700A-E9 Series

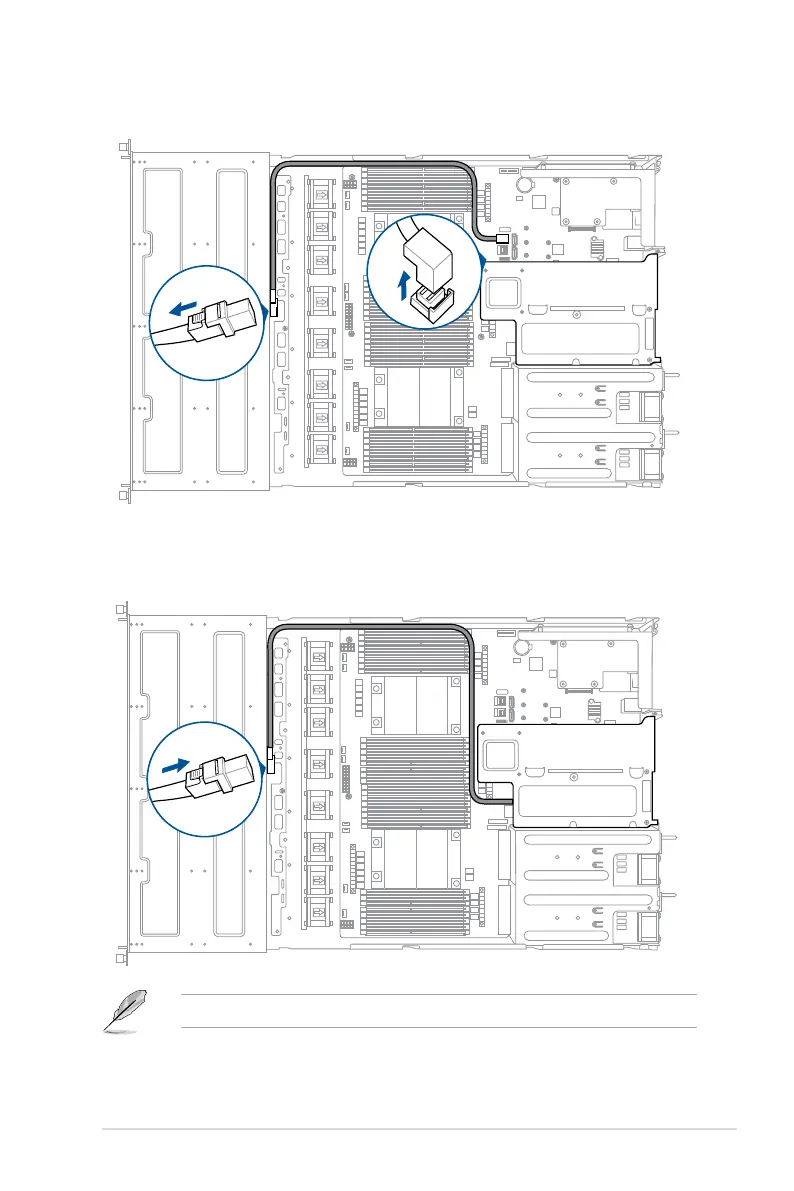

6. Remove the default cable from the motherboard and the backplane.

7. Connect the mini-SAS HD cable to the backplane.

The illustrations shown above are for reference only.
