Chapter 2: Hardware Information

2-30

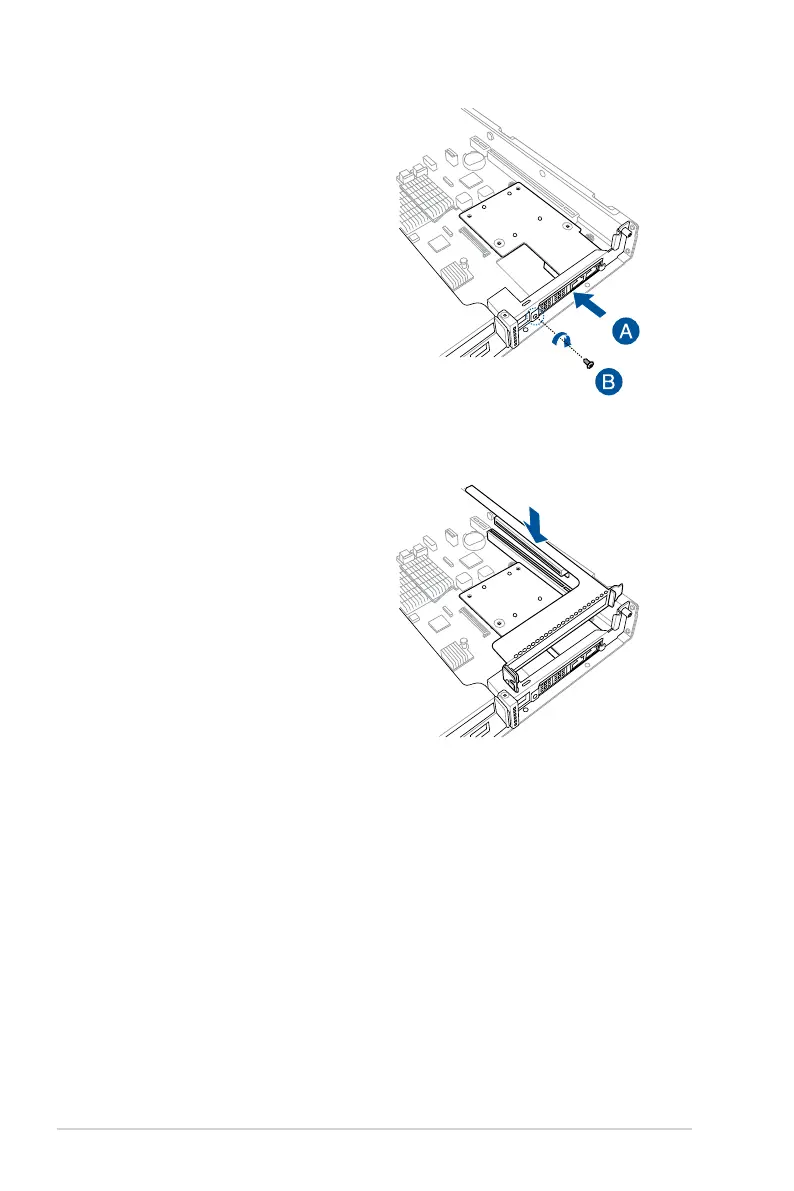

9. Install the riser card bracket into the

PCIE connector on the motherboard.

Ensure that the golden connectors

oftherisercardbracketisrmly

seated in place.

8. Reinstall the metal cover (A) and

secure it with the screw (B).
