Chapter 4: Motherboard Information
4-20

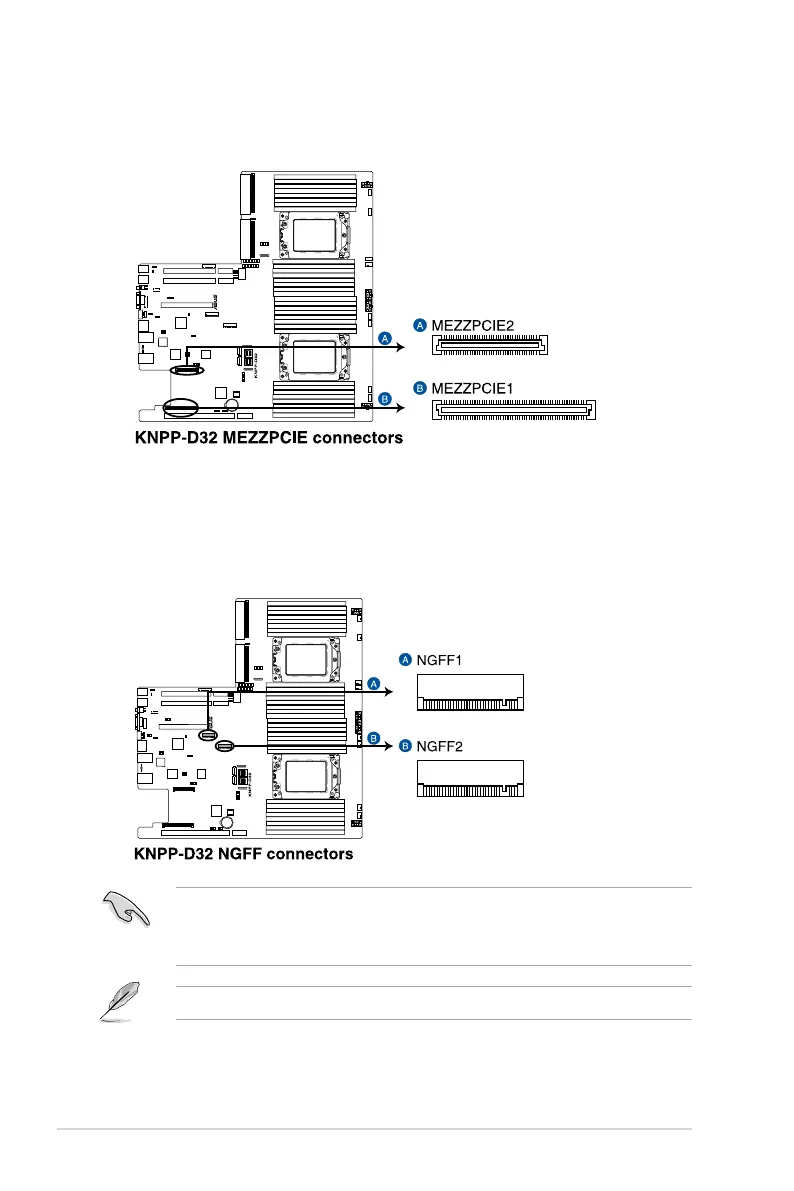

15. Mezzanine PCIE card connectors (MEZZPCIE1-2)
The MEZZPCIE1-2 connector supports Open Compute Project (OCP) cards.
16. M.2 (NGFF) card connectors (NGFF1-2)
These connectors allow you to install M.2 devices.
• This connector supports type 2242 / 2260 / 2280 / 22110 devices on both PCI-E and
SATA interface.
• If the SATA M.2 (NGFF1) slot is occupied, the SSATA2 slot will be disabled.
The M.2 (NGFF) device is purchased separately
