Chap. I - Gas Analyser
Gas-manual-en.docx — 26 —
1 - Tab: for ignition advance selection
Note:
Tab is only available with Multi-Diag Scope

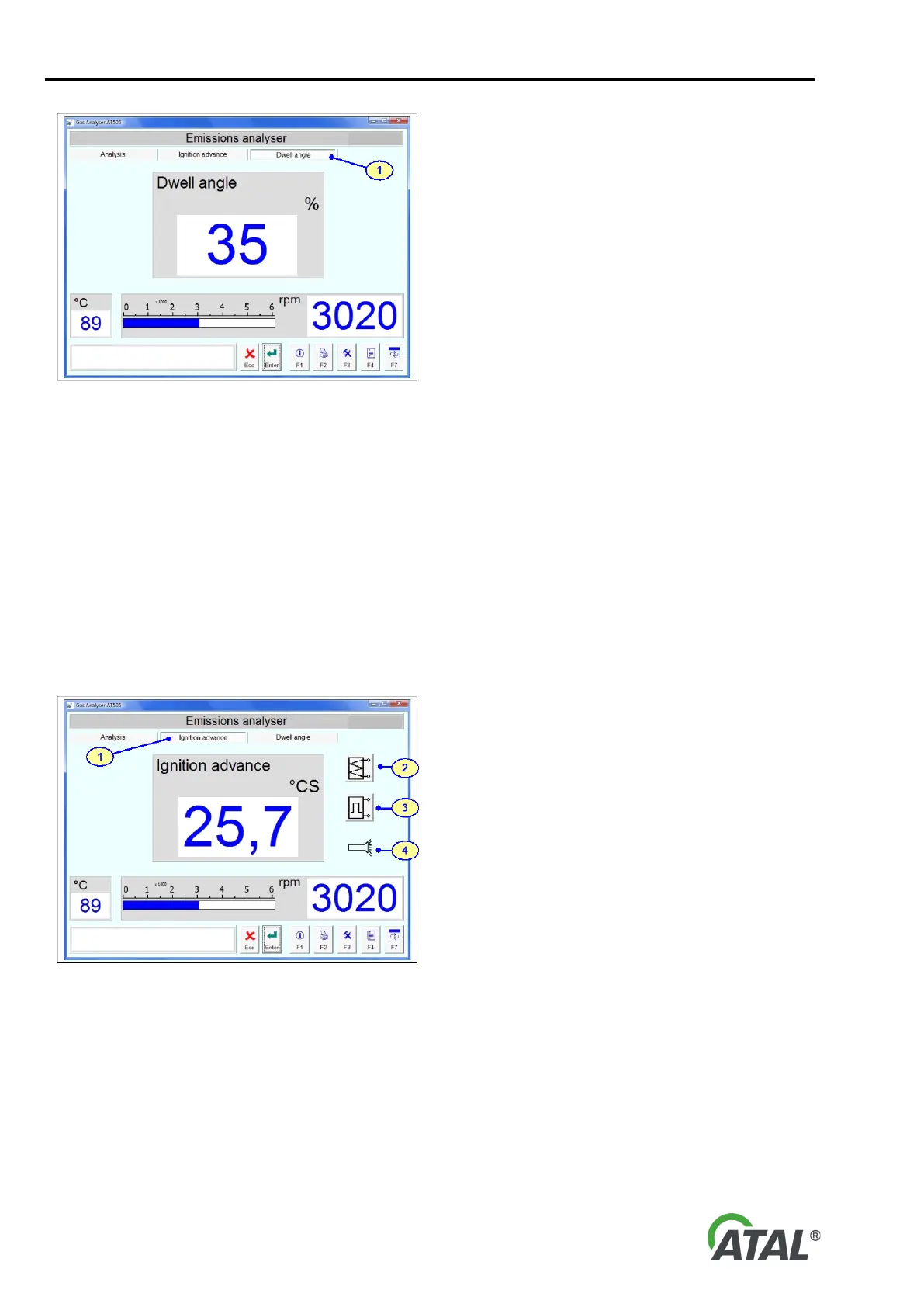

Fig. 48 – Initial Gas Analyser Software screen description Analyser – after
switching into the dwell angle tab
15. IGNITION ADVANCE MEASURING
This function is only available in connection with another device – i.e. with Multi-Diag Scope, Motortester or
Minitester (optional extension). Otherwise no choices for switching into the measuring of ignition advance or dwell
angle will be displayed (Fig. 44).
Measuring is carried out through two sensors which make part of Multi-Diag Scope. One probe is the ignition
sensor and the other probe can be selected from the following:
- Induction sensor
- Semiconductor (optical) sensor
- Stroboscope
1 - Tab: for ignition advance measuring selection
Selection of ignition advance sensors:
2 - Induction sensor
3 - Semiconductor (optical) sensor
4 - Stroboscope
Note:
Tab is available only with Multi-Diag Scope
Fig. 49 – Initial Gas Analyser Software screen description Analyser –
after switching into the ignition advance measuring tab
Note:
In measuring the advance is measured spark-ignition engine speed sensor
16. PRINTING VALUES
The print queue behaves like a storage folder for collecting individual records of the measurement results to be
printed later. The contents of the print queue are printed when the user desires.
To Next Page
