Siren Features and Operation
Digital Life User Manual | Page 27 of 62 ATT-UM-V1.1-201303
Siren (SW-ATT-SRN) Operation
The LIGHT shows the system status, as follows:
• Solid Green—unit is AC powered and backup battery is good.
• Blinking Green—unit is not AC powered and is operating on batteries.
• Solid Red—unit is AC powered and the backup battery needs to be replaced.
• Off—unit is not AC powered and backup battery has failed.

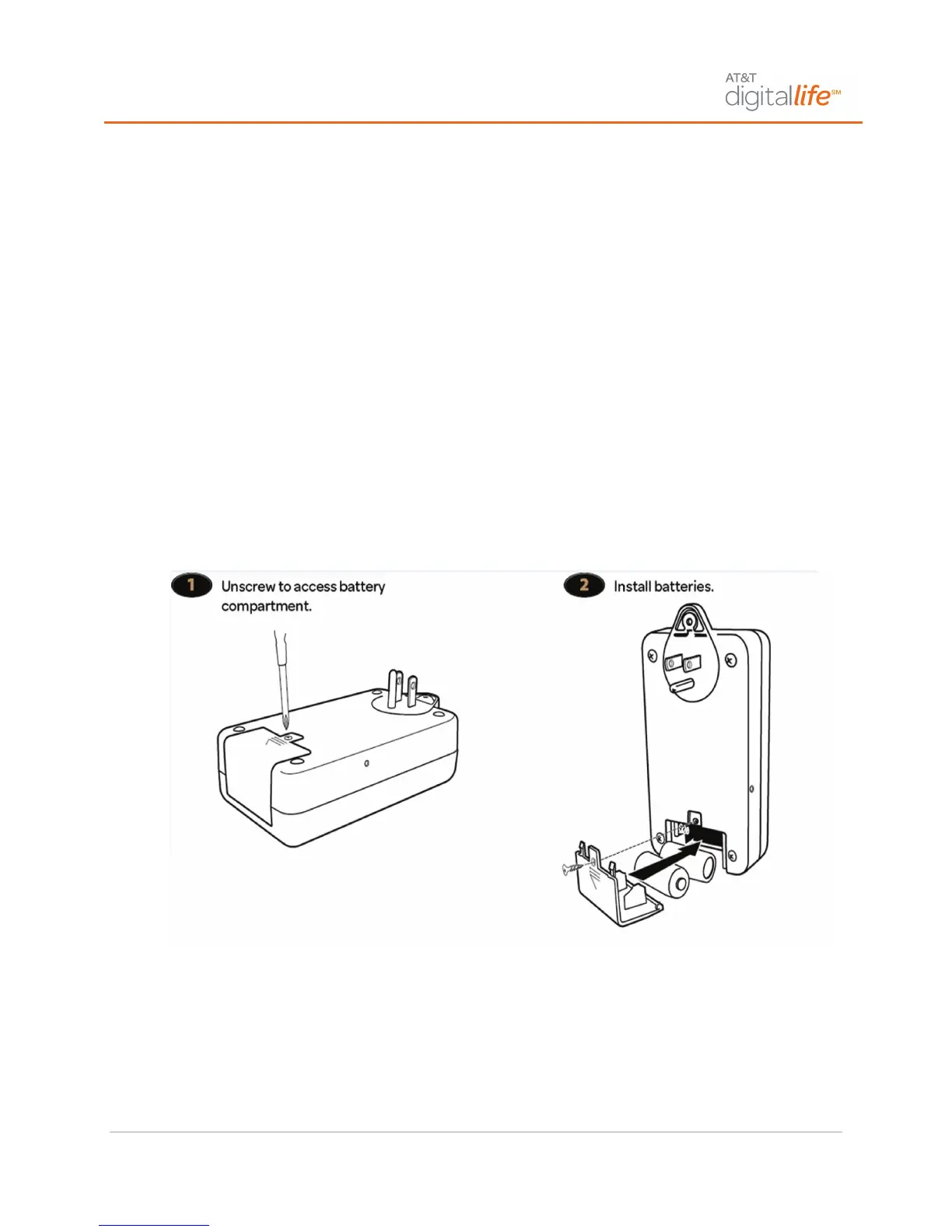

Replacing the Siren (SW-ATT-SRN) Batteries
Your Siren (SW-ATT-SRN) is equipped with two (2) non-rechargeable 3VDC (Duracell
®
DL123A or Panasonic
®
CR123A) batteries. The batteries provide twenty-four (24) hour
battery backup. You must first remove the unit from the AC outlet by removing the
retaining screw that is located at the top of the siren which secures the siren to the AC
outlet. Then you can replace batteries by opening the battery compartment located on
the rear of the unit.
After you have installed new batteries, plug the siren back into the lower socket of the
AC outlet. Then replace the retaining screw in the plastic tab at the top of the siren and
secure the siren to the AC outlet.
