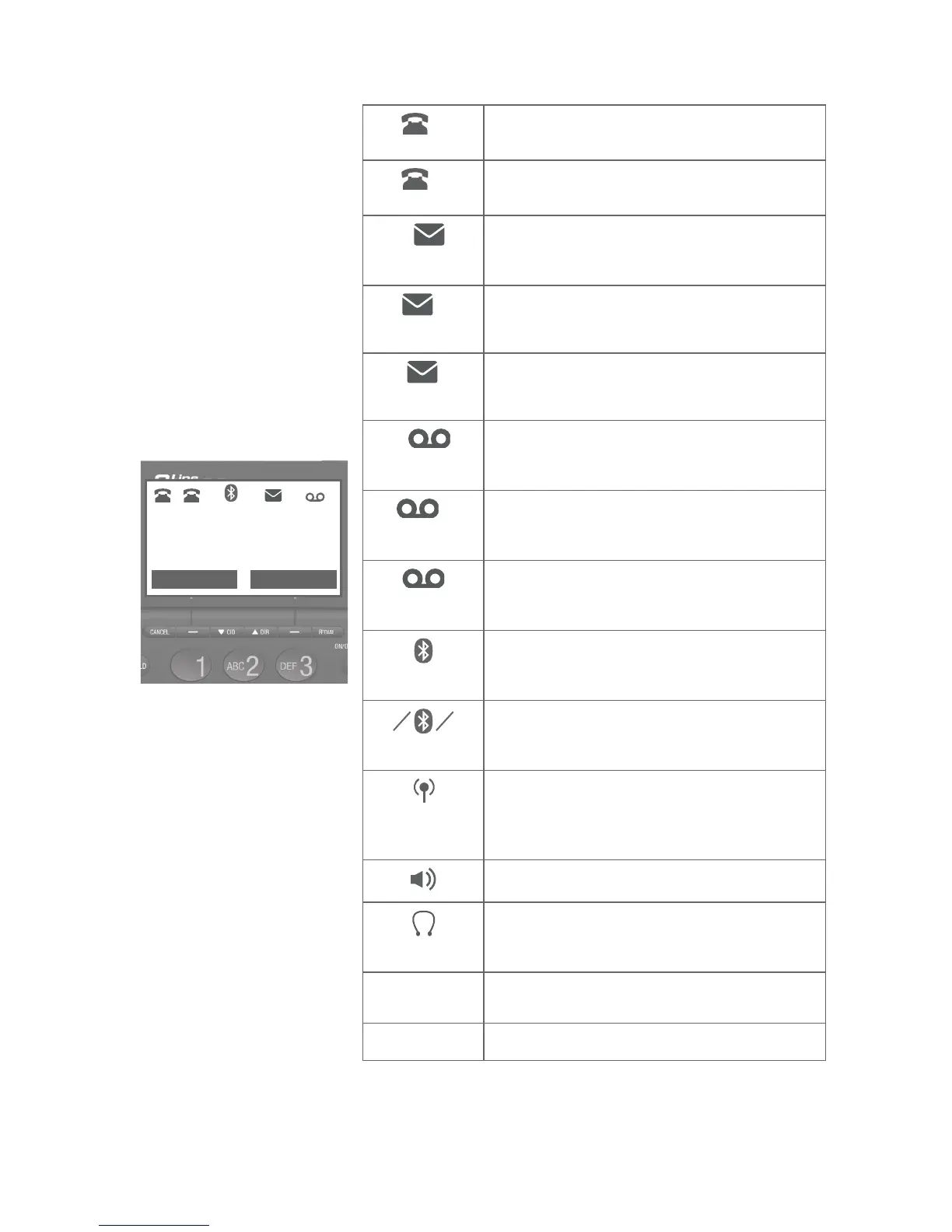

Telephone base screen icons
1
Line 1 - on steadily when line 1 is in use.
Flashes when line 1 is on hold.
2
Line 2 - on steadily when line 2 is in use.
Flashes when line 1 is on hold.
1
New voicemail - indicates you have new
voicemail received on line 1 from the
telephone service provider.
2
New voicemail - indicates you have new
voicemail received on line 2 from the
telephone service provider.
1 2
New voicemail - indicates you have new
voicemail received on line 1 and line 2 from
the telephone service provider.
1
New answering system message - indicates
you have new answering system message(s)
on line 1.
2
New answering system message - indicates
you have new answering system message(s)
on line 2.
1 2
New answering system message - indicates
you have new answering system message(s)
on line 1 and line 2.
Bluetooth connected device(s) - indicates
that there are Bluetooth connected devices
on the active device list.
Bluetooth disconnected device(s) - indicates
that there are Bluetooth disconnected devices
on the active list.
A B
Bluetooth link status - on steadily when the
cell line or the Bluetooth headset is in use,
or when you are downloading a cell phone
directory.
Speakerphone - the speakerphone is in use.
Bluetooth wireless headset - on steadily
when a Bluetooth headset is used during
a call.
NEW
New call log - indicates that the missed call
is new and has not been reviewed.
MUTE
Mute - the microphone is muted.
BA
BA
