ATI Technologies QC-5 - NPN Type Lock and Unlock Sensors

Manual, Robotic Tool Changer, QC-5 through QC-27
Document #9610-20-2254-09
Pinnacle Park • 1041 Goodworth Drive • Apex, NC 27539 USA • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com
35
3.10.2 NPN Type Lock and Unlock Sensors
The NPN Lock and Unlock sensors are 4 mm cylindrical inductive proximity sensor.
Table 3.3—NPN (Current Sinking)
Description Value
Voltage Supply Range 10-30 VDC
Output Current < 100 mA
Nominal Sensing Distance Sn 0.8 mm
Output Circuit NPN make function (NO)

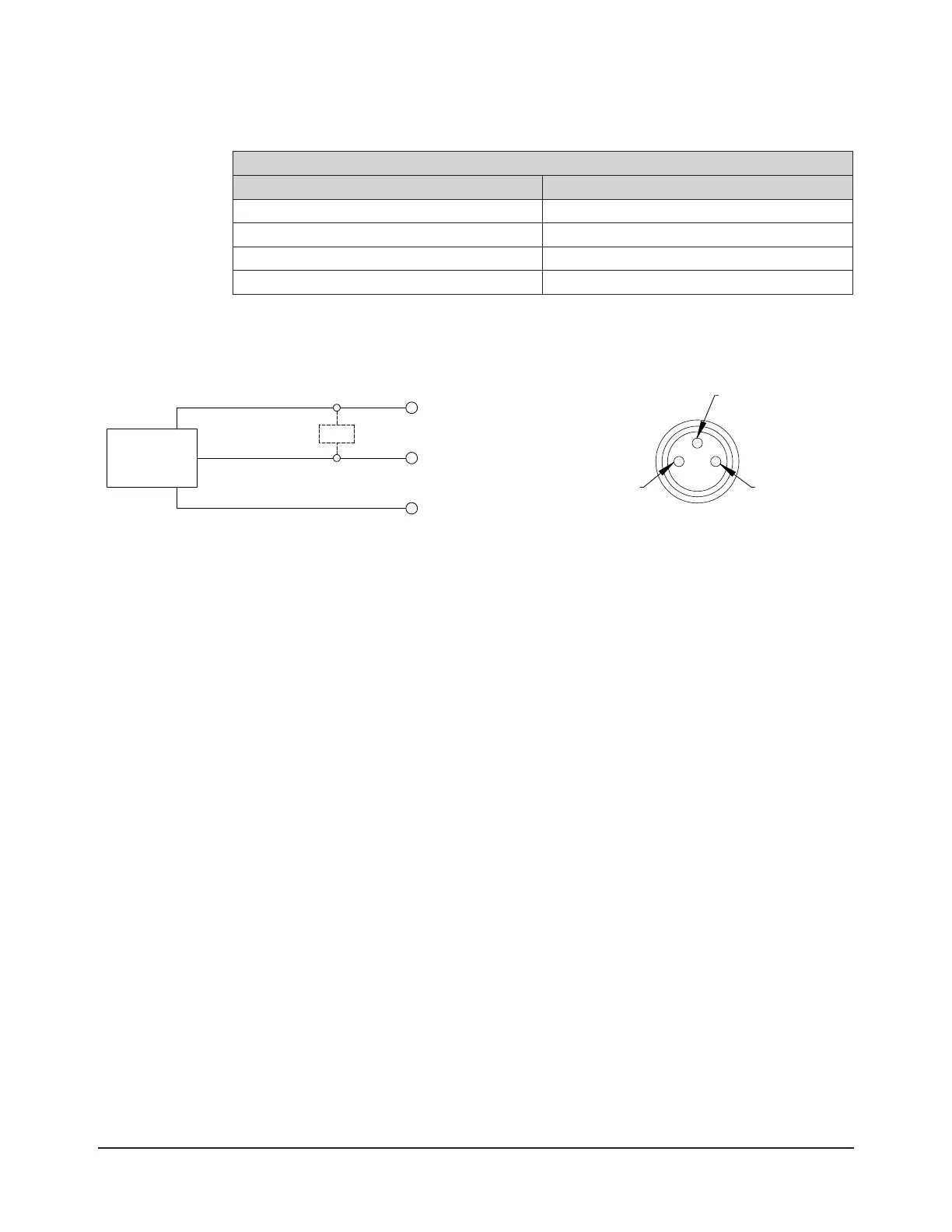

Figure 3.23—NPN Type Lock and Unlock Sensors
(3) Blue Brown (1)
(4) Black
Brown (1)
Black (4)
Blue (3)
+Vs
Output
0 V
NPN
Z
Connector
NPN (Current Sinking)
