ATI Technologies QC-5 - Models QC-11 Serviceable Parts

Manual, Robotic Tool Changer, QC-5 through QC-27
Document #9610-20-2254-09
Pinnacle Park • 1041 Goodworth Drive • Apex, NC 27539 USA • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com
57

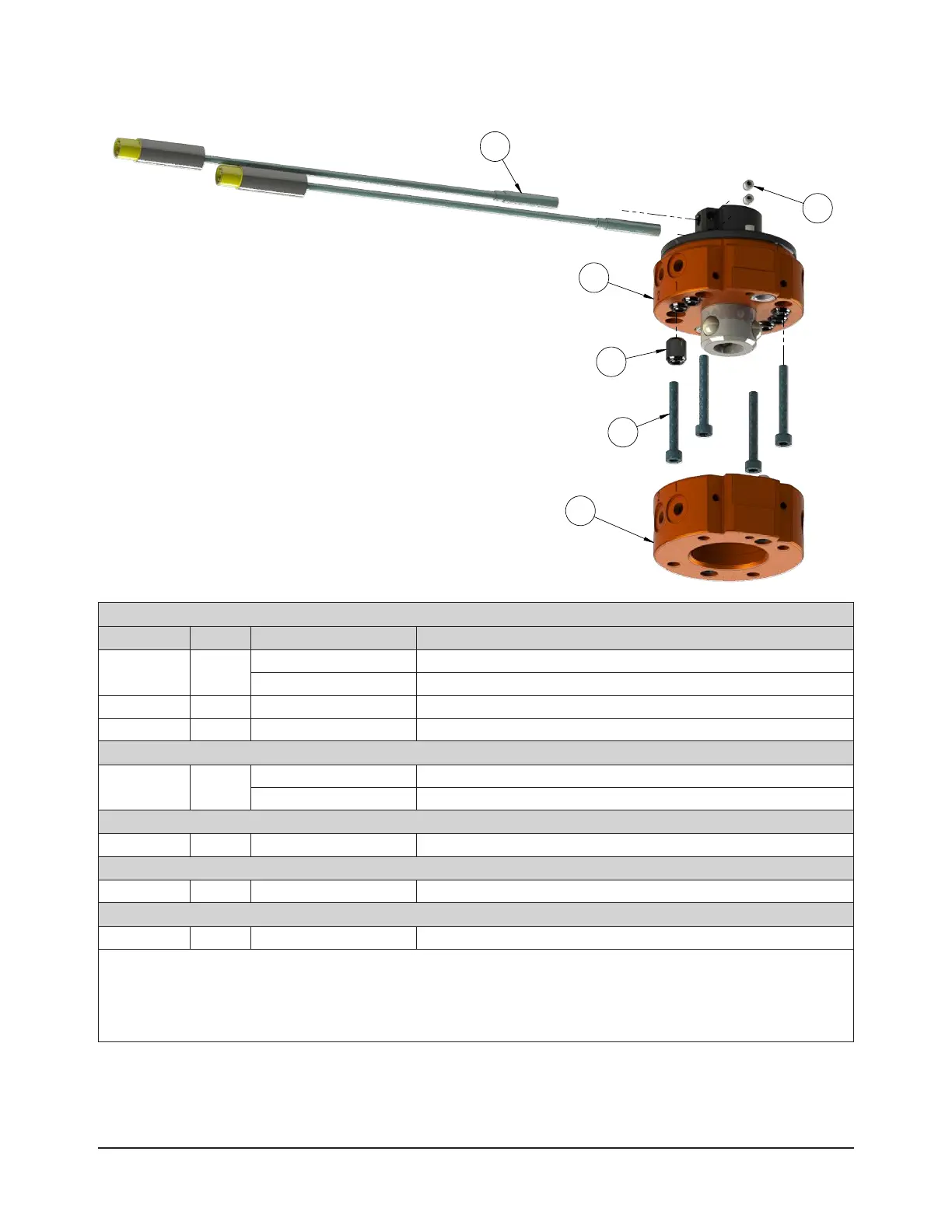

8.2 Models QC-11 Serviceable Parts
3
2
6
5
4
1
QC-11 Master plate
Item No. Qty Part Number Description
1 1
9120-011M-000-000
QC-11 Master Assembly, No Options (Orange Anodized)
9120-011M-000-000-B
QC-11 Master Assembly, No Options (Black Anodized)
2 6 4010-0000009-02 M5 Rubber Bushing, Nitrile, Light-5
3 4 3500-1058025-11 M3 x 25mm socket head cap screws Black Oxide
QC-11 Tool plate
4 1
9120-011T-000-000 QC-11 Tool Assembly, No Options (Orange Anodized)
9120-011T-000-000-B QC-11 Tool Assembly, No Options (Black Anodized)
SIP Assemblies
5 2 3500-1957030-11 SSCR, M3 x 3, NYLON TIP
PNP Sensors - 9120-011M-000-000-SQ-yyyy (9120-011M-SIP Q-yyyy)
6 2 8590-9909999-27 M4-0.5 PNP Sensor with M8 Male Plug
NPN Sensors - 9120-011M-000-000-SQN-yyyy (9120-011M-SIP-QN-yyyy)
6 2 8590-9909999-78 M4-0.5 NPN Sensor
Notes:
1. Tool Changer Master Assemblies can be ordered with a (SIP) sensor interface plate. The -SQx in the Part Number
indicates the sensor type, SQ for PNP type sensors or SQN for NPN type sensors. If no SIP is ordered, the -SQx will
not exist in the Part Number (i.e. 9120-011M-000-000-B).
2. The -yyyy species the Interface plate model, contact an ATI sales representative for custom interface plate available.
