Manual, Robotic Tool Changer, QC-5 through QC-27
Document #9610-20-2254-09
Pinnacle Park • 1041 Goodworth Drive • Apex, NC 27539 USA • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com
56
8. Serviceable Parts
The following items are commonly used as spare parts for the QC-5 through QC-27 Tool Changers.

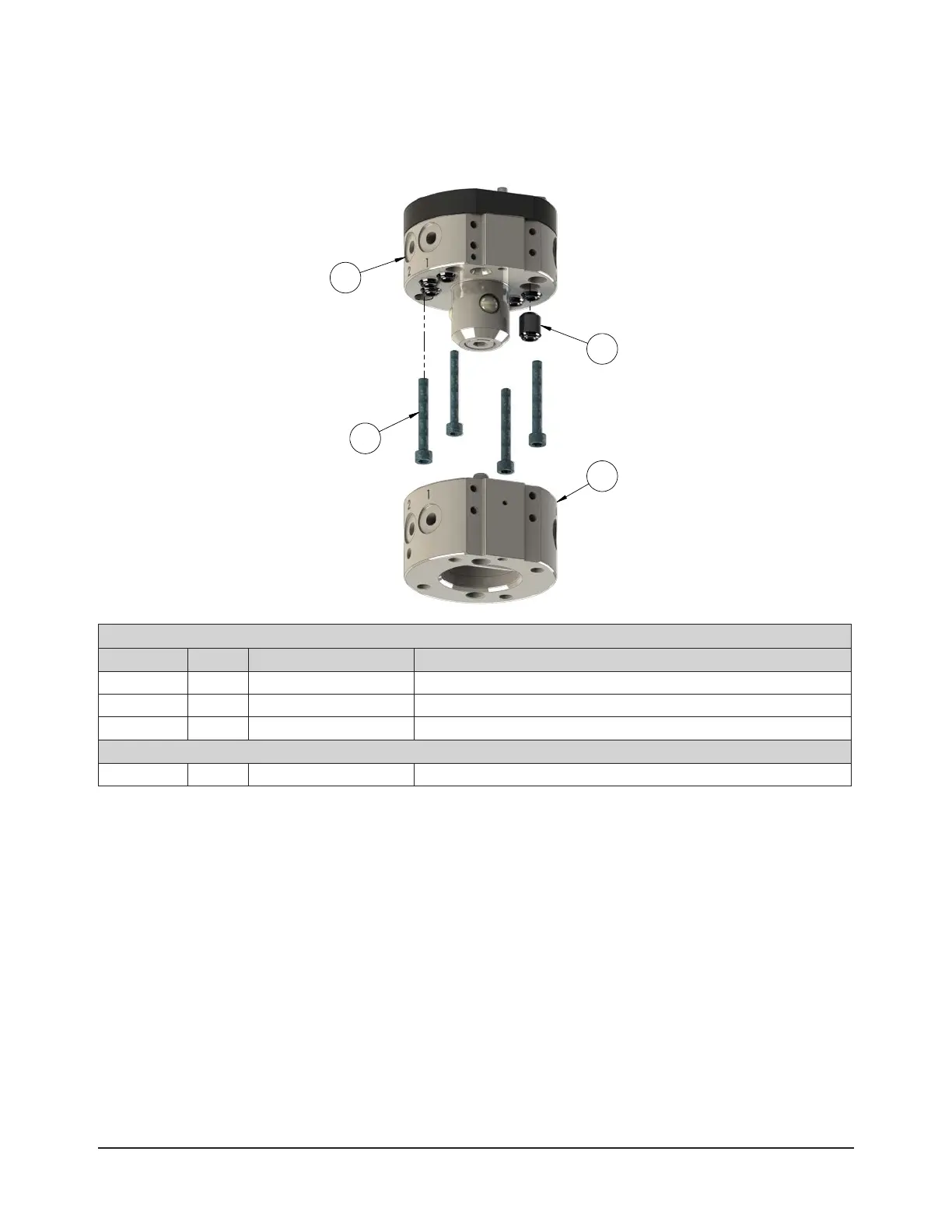

8.1 Models QC-5 Serviceable Parts
3
2
1
4
QC-5 Master plate
Item No. Qty Part Number Description
1 1 9120-005M-000-000 QC-5 Master, no options
2 6 4010-0000009-02 M5 Rubber Bushing, Nitrile, Light-5
3 4 3500-1058025-12 M3 x 25mm socket head cap screws Zinc
QC-5 Tool plate
4 1 9120-005T-000-000 QC-5 Tool, no options
