ATI Technologies QC-5 - Models QC-20 with 16 M5 X 0.8 Pass through Ports Serviceable Parts

Manual, Robotic Tool Changer, QC-5 through QC-27
Document #9610-20-2254-09
Pinnacle Park • 1041 Goodworth Drive • Apex, NC 27539 USA • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com
59

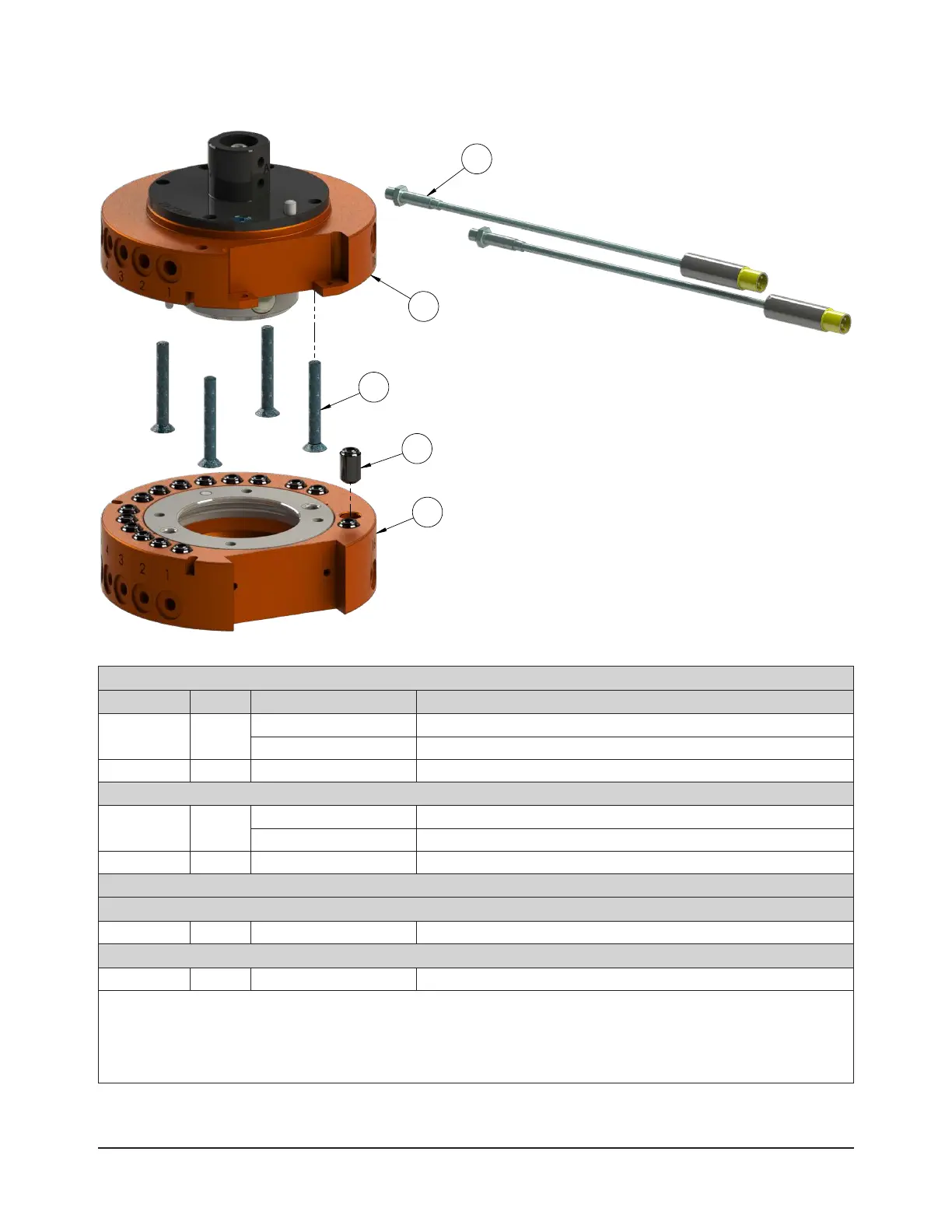

8.4 Models QC-20 with 16 M5 X 0.8 Pass through Ports Serviceable Parts
5
1
2
4
3
QC-20 Master plate
Item No. Qty Part Number Description
1 1
9120-020M-000-P16 QC-20 Master, 16 Ports, No Options, (Orange Anodized)
9120-020M-000-P16-B QC-20 Master, 16 Ports, No Options (Black Anodized)
2 4 3500-1262030-15 M4 x 30mm SFHCS, Blue Dyed Magni-565
QC-20 Tool plate
3 1
9120-020T-000-P16 QC-20 Tool, 16 Ports, No Options, (Orange Anodized)
9120-020T-000-P16-B QC-20 Tool, 16 Ports, No Options, (Black Anodized)
4 16 4010-0000014-02 M5 Rubber Bushing, Nitrile
SIP Assemblies
PNP Sensors - 9120-020M-000-P16-SQ-yyyy (9120-020M-SIP-Q-yyyy)
5 2 8590-9909999-27 M4-0.5 PNP Sensor with M8 Male Plug
NPN Sensors - 9120-020M-000-P16-SQN-yyyy (9120-020M-SIP-QN-yyyy)
5 2 8590-9909999-78 M4-0.5 NPN Sensor
Notes:
1. Tool Changer Master Assemblies can be ordered with a (SIP) sensor interface plate. The -SQx in the Part Number
indicates the sensor type, SQ for PNP type sensors or SQN for NPN type sensors. If no SIP is ordered, the -SQx will
not exist in the Part Number (i.e. 9120-020M-000-P16-B).
2. The -yyyy species the Interface plate model, contact an ATI sales representative for custom interface plate available.
