ATI Technologies QC-5 - Models QC-27 Serviceable Parts

Manual, Robotic Tool Changer, QC-5 through QC-27
Document #9610-20-2254-09
Pinnacle Park • 1041 Goodworth Drive • Apex, NC 27539 USA • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com
61

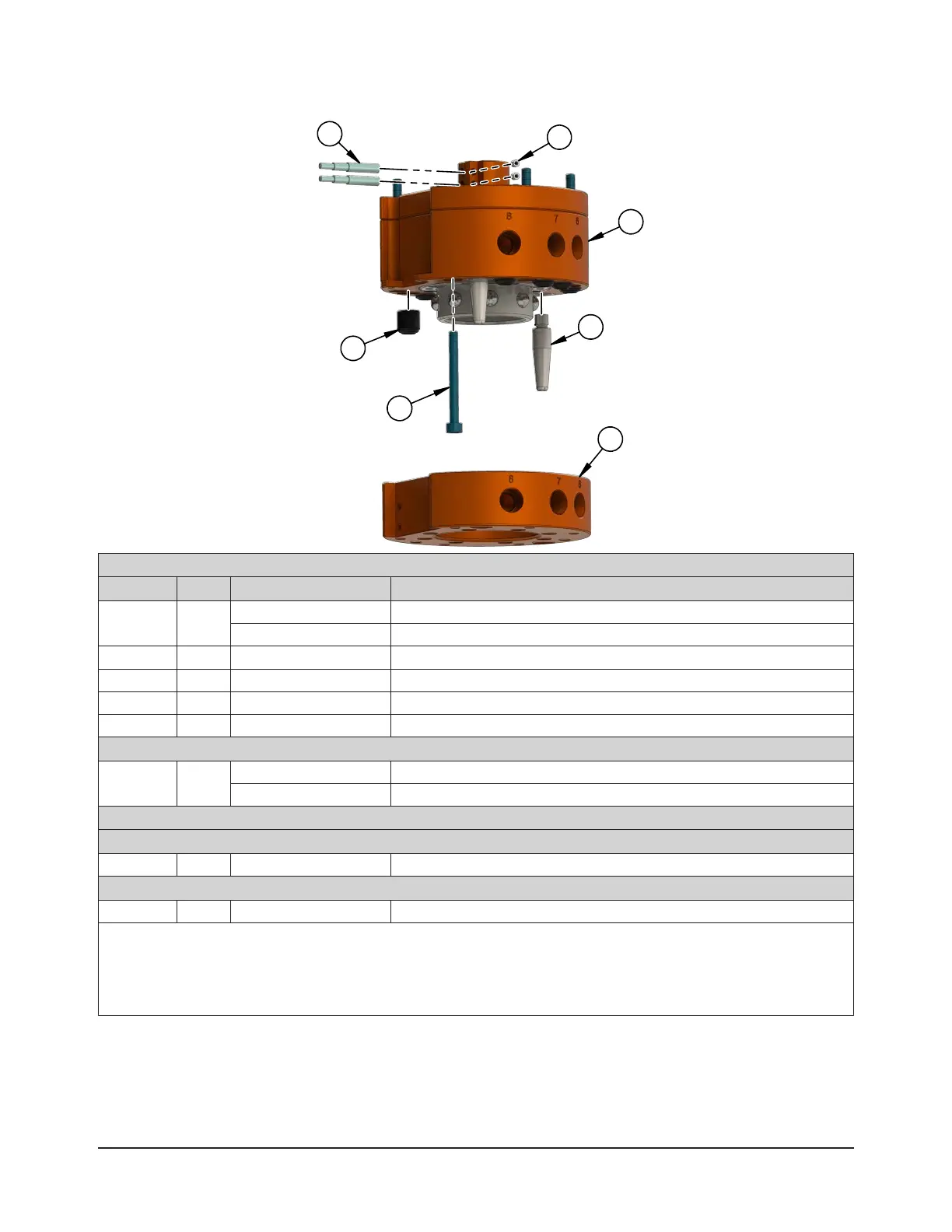

8.6 Models QC-27 Serviceable Parts
6
5
2
1
3
4
7
QC-27 Master plate
Item No. Qty Part Number Description
1 1
9120-027M-000-000
QC-27 Master, no options, 1/8 NPT ports (Orange Anodized)
9120-021M-000-000-E
QC-27 Euro Master, no options, G 1/8 (BSPP) (Black Anodized)
2 2
3700-20-1373 Monolithic Alignment Pin
3 8 4010-0000013-01 1/8” NPT Rubber Bushing, Nitrile
4 6
3500-1062040-15A M4 x 40mm Socket Head Cap Screw Blue Dyed Magni-565 w/Microspheres
5 2
3500-1957030-11 Socket Set Screw, M3 x 3, Nylon Tip
QC-27 Tool plate
7 1
9120-027T-000-000 QC-21 Tool, no options
(Orange Anodized)
9120-027T-000-000-E QC-21 Euro Tool, no options (Black Anodized)
Sensor Options
9120-027M-000-000-SQ-yyyy or 9120-027M-000-000-SQ-yyyy-E
6 2 8590-9909999-27 M4-0.5 PNP Sensor with M8 Male Plug
9120-021M-000-000-SQ1-yyyy or 9120-021M-000-000-SQ1-yyyy-E
6 2 8590-9909999-97
PNP proximity sensor, M4-0.5, 2 m long, no conn
Notes:
1. QC-27 Tool Changer Master Assemblies are equipped with a (SIP) sensor interface plate. The -SQx in the Part Number
indicates the sensor type, SQ for PNP type sensors or SQN for NPN type sensors. If no SIP is ordered, the -SQx will
not exist in the Part Number (i.e. 9120-027M-000-000-B).
2. The -yyyy species the Interface plate model, contact an ATI sales representative for custom interface plates available.
