ACTA 4000 User Guide Interface
9836 4171 01 2008-12 13 (136)
Result header with battery
status, communication symbol,
tool or application name, and
number of tightenings (in
batch)

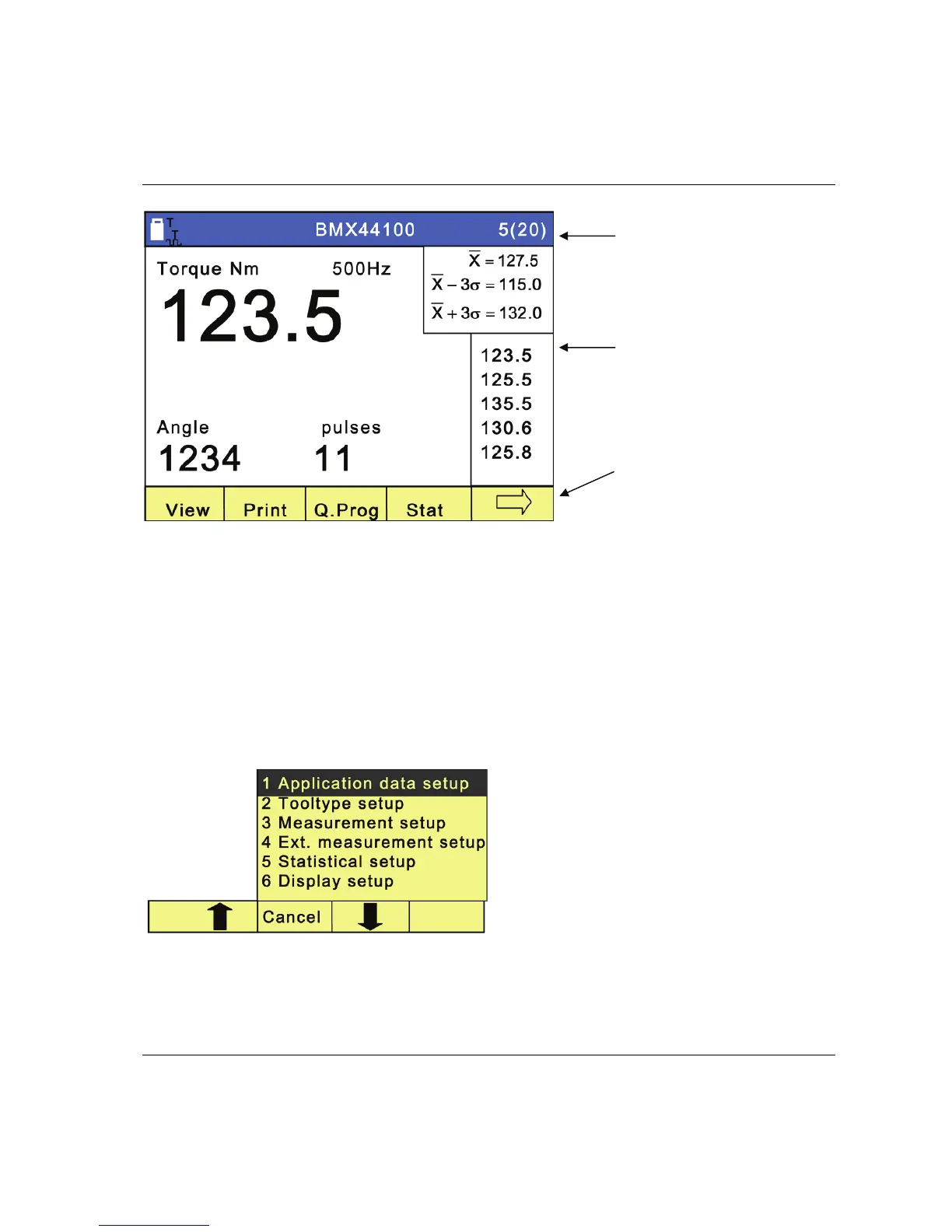

Measurement dialog box with
torque and angle results,
statistical results and last five
tightenings. This figure shows
the basic view
Menu blocks representing
programming tree functions,
arrows, or user defined options.
Controlled by the soft keys
2.1.2 Menu Blocks
The Menu blocks are located at the bottom of the display.
Each
soft key is used to select a menu block. The arrows are used to scroll through the menus.
2.1.3 Pull-up menus
When selecting a menu block with more than one function, a dialog box appears on the display.
A pull-up menu lists the options under a specific
menu block. The figure shows the pull-up menu
from the
Programming menu block.
To select an option, do one of the following:
Highlight it by scrolling up or down using
the soft keys under the arrows. Then press
ENTER.
Press the digit on the numeric keypad that
corresponds to the desired menu option.
