18.9 High-voltage Serial Programming Characteristics

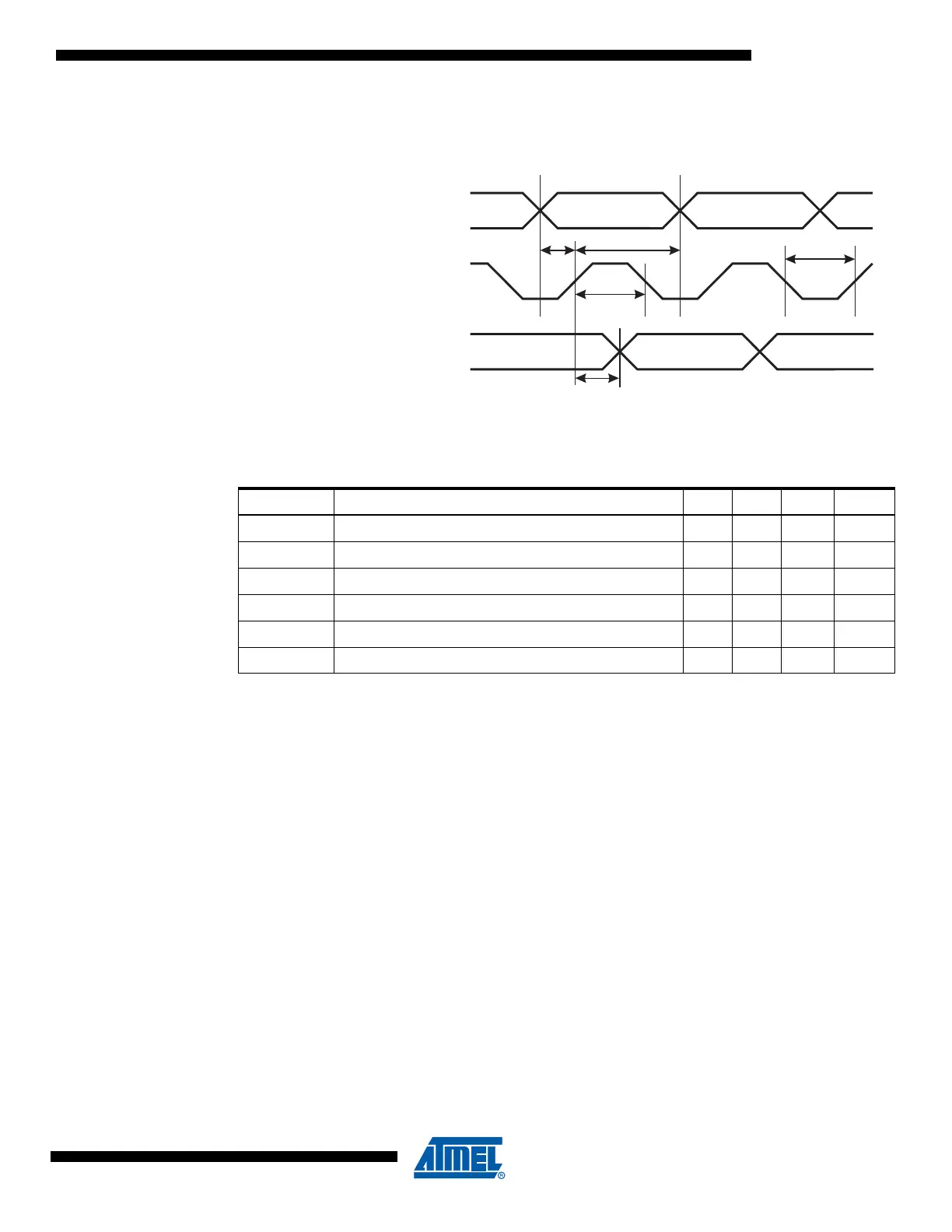

Figure 18-5. High-voltage Serial Programming Timing
Table 18-10. High-voltage Serial Programming Characteristics
T
A
= 25°C, V
CC
= 5.0V ± 10% (Unless otherwise noted)
Symbol Parameter Min Typ Max Units
t
SHSL
SCI (PB3) Pulse Width High 110 ns
t
SLSH
SCI (PB3) Pulse Width Low 110 ns
t
IVSH
SDI (PB0), SII (PB1) Valid to SCI (PB3) High 50 ns
t
SHIX
SDI (PB0), SII (PB1) Hold after SCI (PB3) High 50 ns
t
SHOV
SCI (PB3) High to SDO (PB2) Valid 16 ns
t
WLWH_PFB
Wait after Instr. 3 for Write Fuse Bits 2.5 ms
SDI (PB0), SII (PB1)
SDO (PB2)
SCI (PB3)
t
IVSH
t
SHSL
t
SLSH
t
SHIX
t
SHOV
