19.5 Current Consumption in Reset

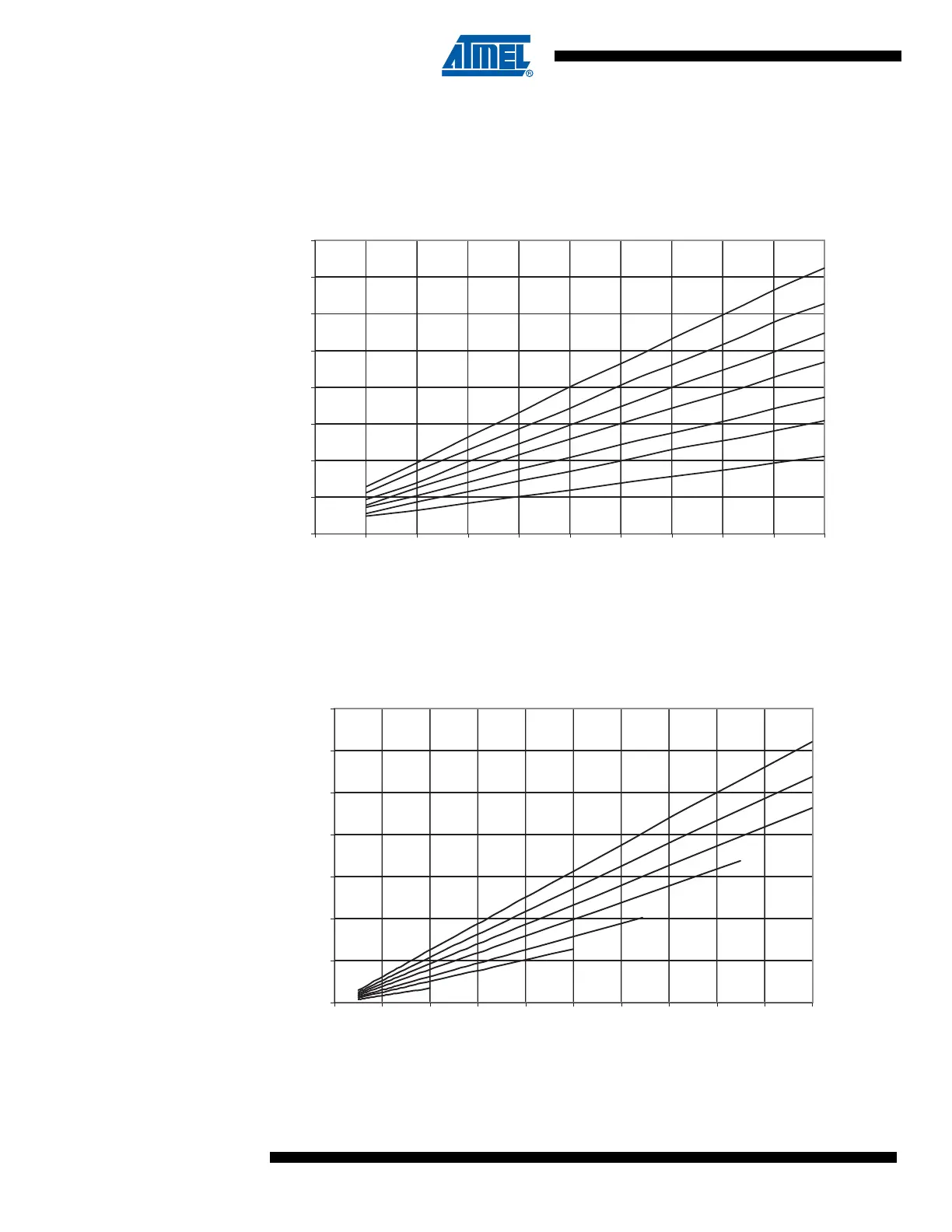

Figure 19-15. Reset Supply Current vs. V
CC
(0.1 - 1.0 MHz, Excluding Current through the
Reset Pull-up)
Figure 19-16. Reset Supply Current vs. V
CC
(1 - 20 MHz, Excluding Current through the Reset
Pull-up)
RESET SUPPLY CURRENT vs. V
CC
EXCLUDING CURRENT THROUGH THE RESET PULLUP
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
2.7 V
1.8 V
0
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Frequency (MHz)
I
CC
(mA)
RESET SUPPLY CURRENT vs. V
CC
EXCLUDING CURRENT THROUGH THE RESET PULLUP
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
2.7 V
1.8 V
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0 2 4 6 8 101214161820
Frequency (MHz)
I
CC
(mA)
