19.12 Internal Oscillator Speed

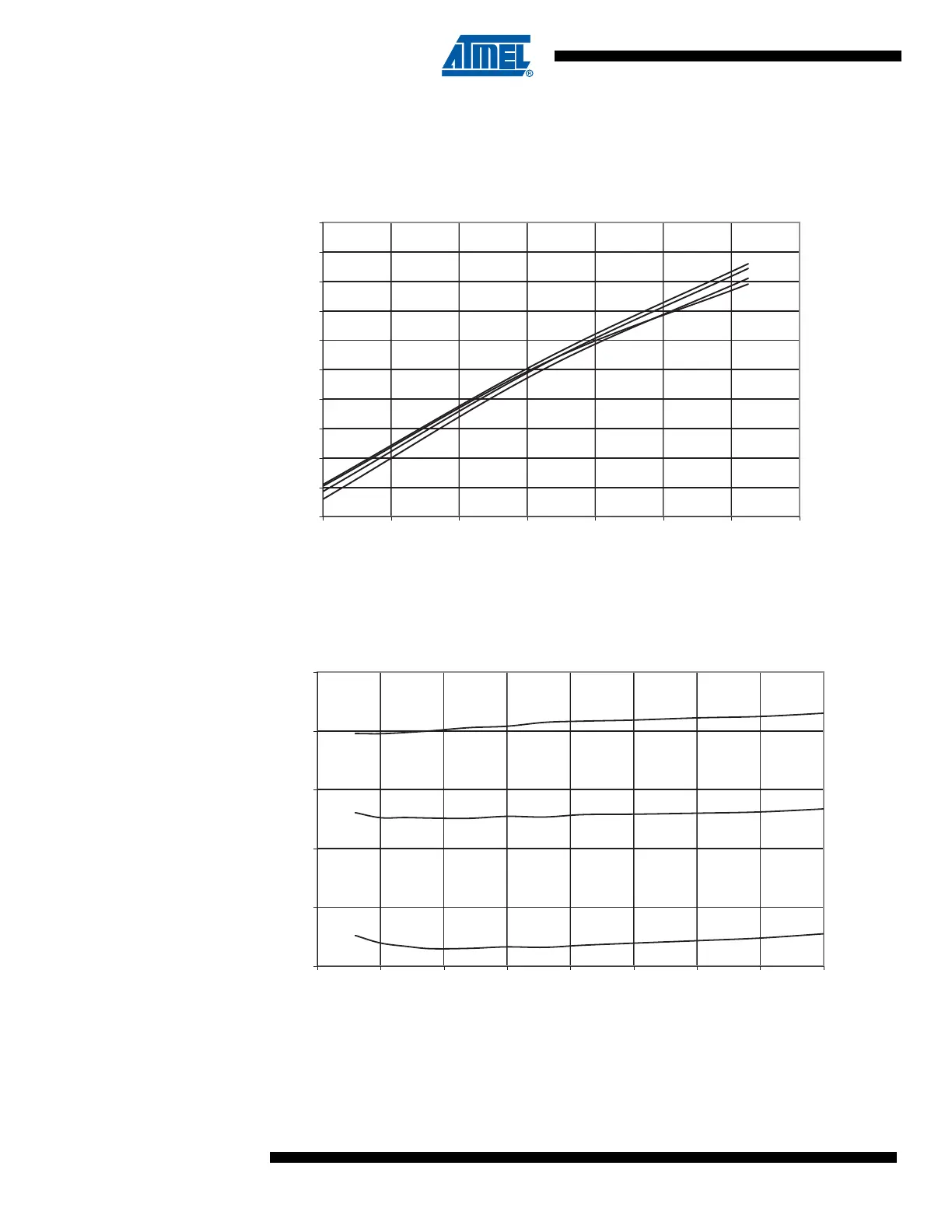

Figure 19-59. Calibrated 9.6 MHz RC Oscillator Frequency vs. Temperature
Figure 19-60. Calibrated 9.6 MHz RC Oscillator Frequency vs. V
CC
CALIBRATED 9.6MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE
5.5 V
4.5 V
2.7 V
1.8 V
9
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
10
-40 -20 0 20 40 60 80 100
Temperature (C)
Frequency (MHz)
CALIBRATED 9.6MHz RC OSCILLATOR FREQUENCY vs. OPERATING VOLTAGE
85 °C
25 °C
-40 °C
9
9.2
9.4
9.6
9.8
10
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Frequency (MHz)
