Atmel ATtiny13A User Manual

155
8126F–AVR–05/12
ATtiny13A

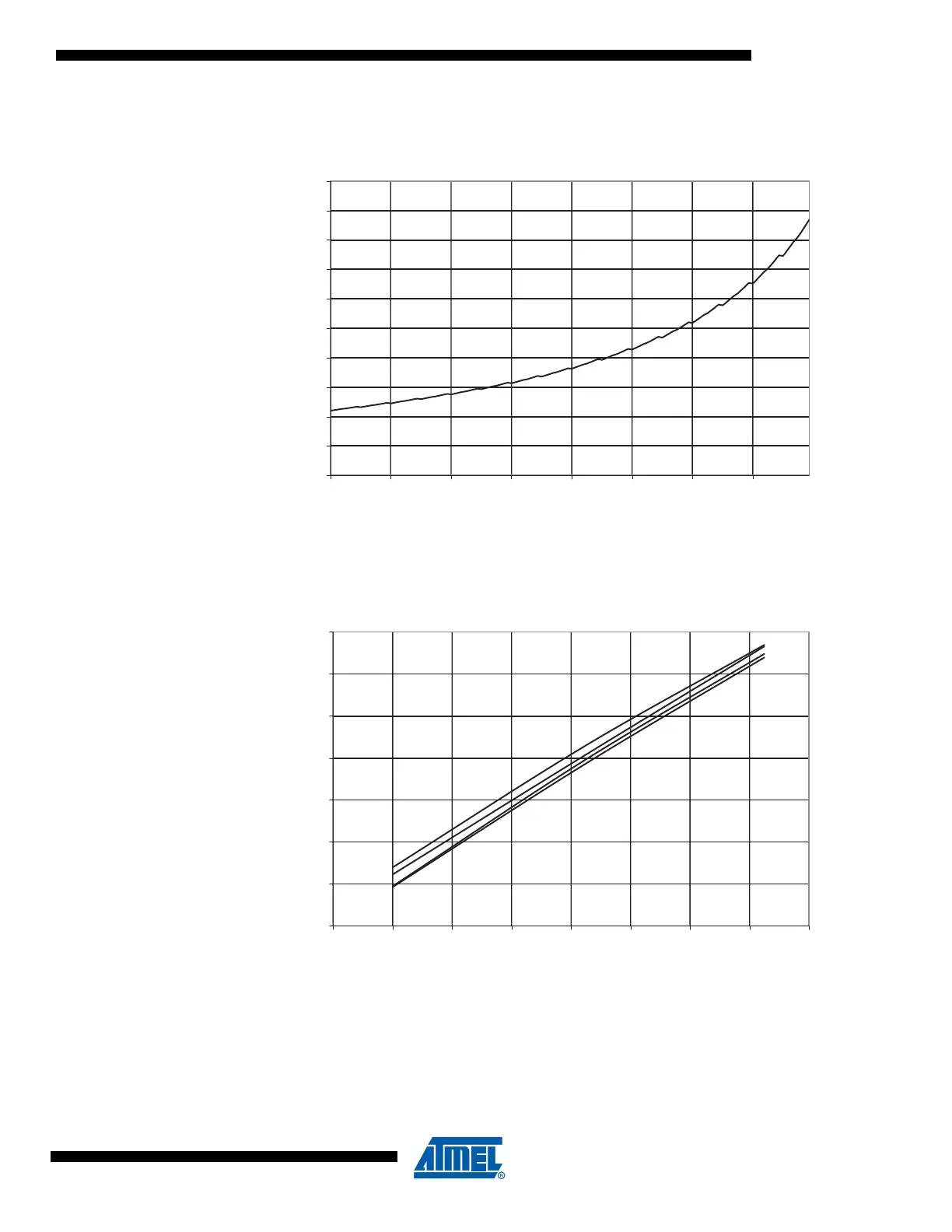

Figure 19-61. Calibrated 9.6 MHz RC Oscillator Frequency vs. Osccal Value
Figure 19-62. Calibrated 4.8 MHz RC Oscillator Frequency vs. Temperature
CALIBRATED 9.6MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE
V
CC
= 3V
25 °C
0
2
4
6
8
10
12
14
16
18
20
0 163248648096112
OSCCAL
Frequency (MHz)
CALIBRATED 4.8MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE
5.5 V
4.0 V
2.7 V
1.8 V
4.3
4.4
4.5
4.6
4.7
4.8
4.9
5
-60 -40 -20 0 20 40 60 80 100
Temperature
Frequency (MHz)
