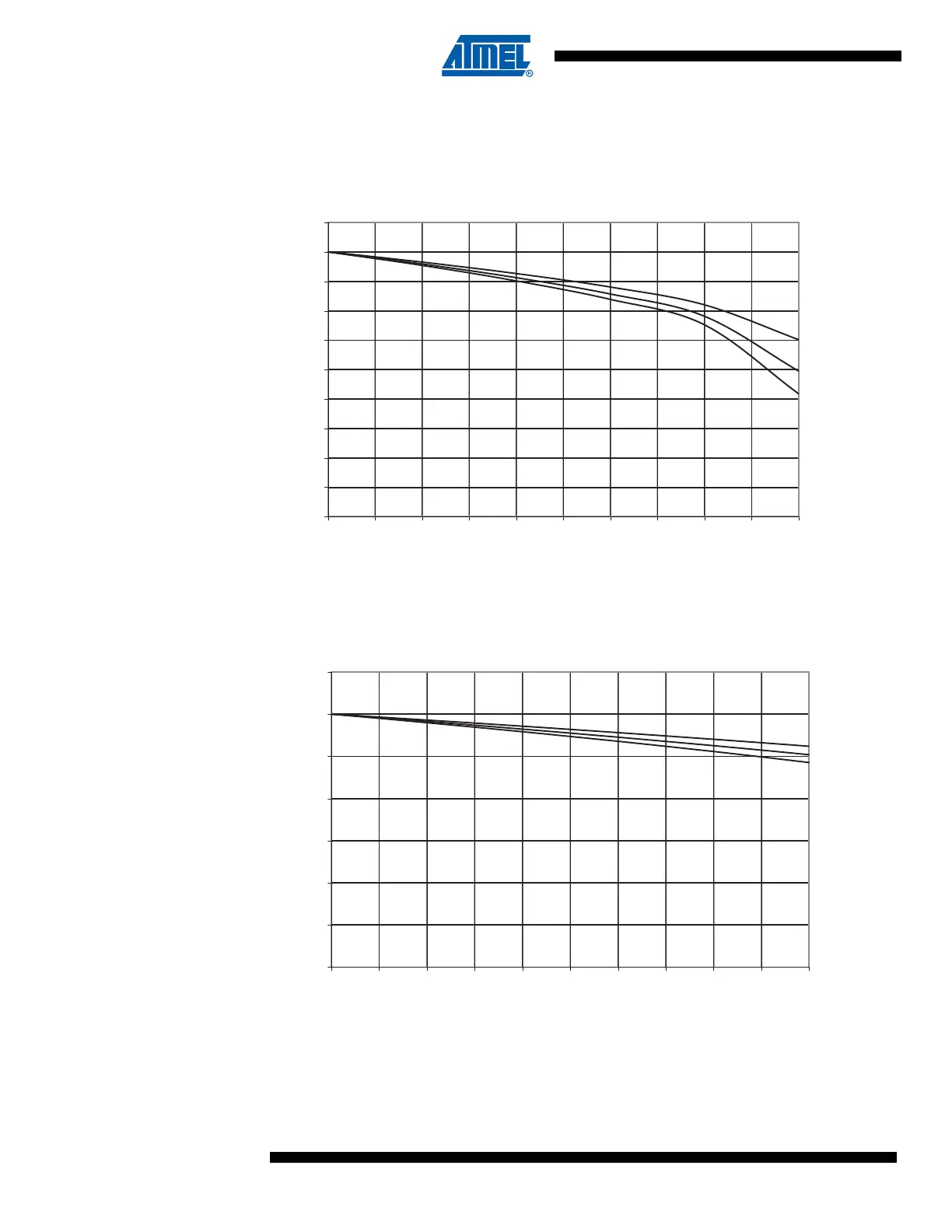

19.8 Output Driver Strength (Low Power Pins)
Figure 19-27. V
OH
: I/O Pin Output Voltage vs. Source Current (Low Power Pins, V
CC
= 1.8V)
Figure 19-28. V
OH
: I/O Pin Output Voltage vs. Source Current (Low Power Pins, V
CC
= 3V)
I/O PIN OUTPUT VOLTAGE vs. SOURCE CURRENT
LOW POWER PINS, V
CC
= 1.8V
85 °C
25 °C
-40 °C
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
I
OH
(mA)
V
OH
(V)
I/O PIN OUTPUT VOLTAGE vs. SOURCE CURRENT
LOW POWER PINS, V
CC
= 3V
85 °C
25 °C
-40 °C
0
0.5
1
1.5
2
2.5
3
3.5
012345678910
I
OH
(mA)
V
OH
(V)
