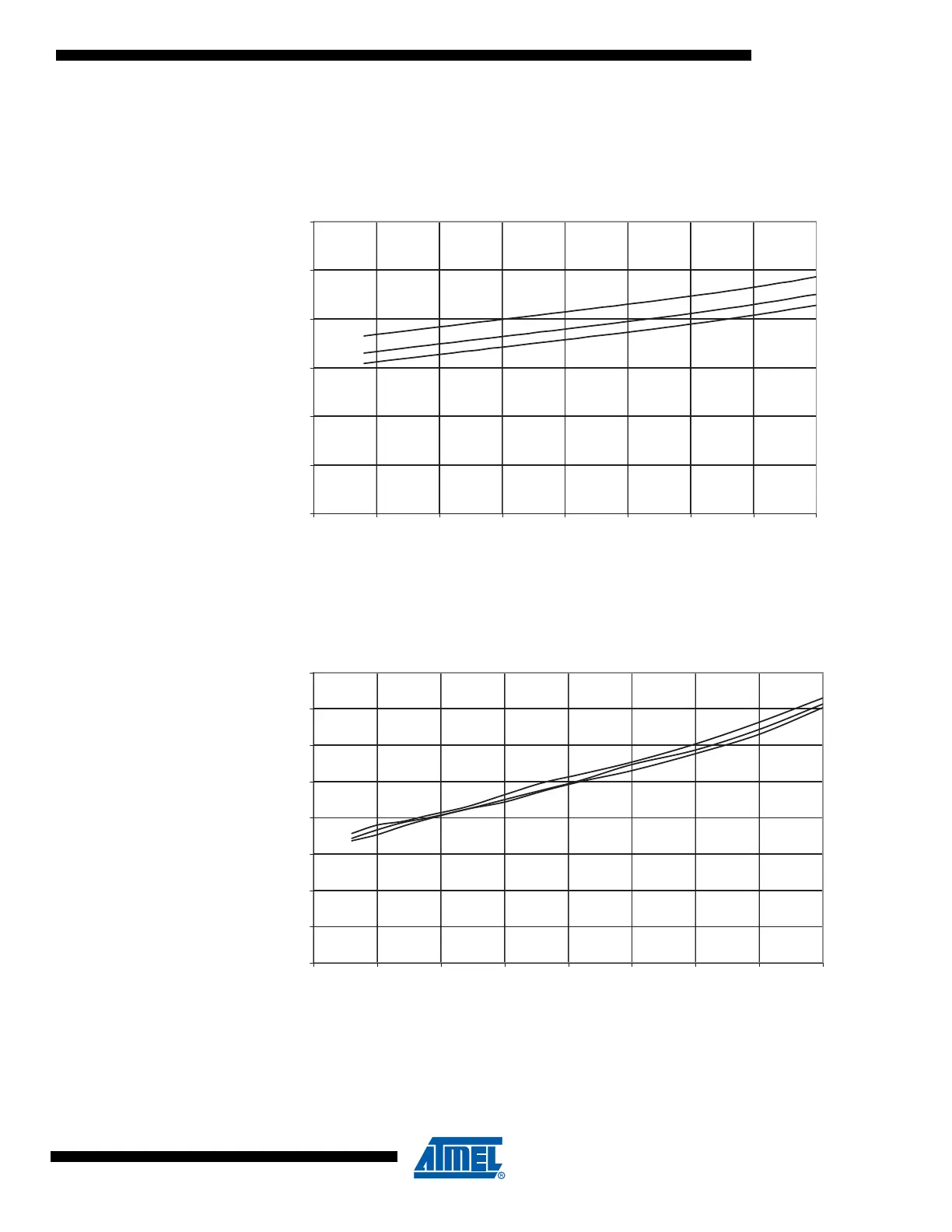

19.6 Current Consumption of Peripheral Units
Figure 19-17. Brownout Detector Current vs. V
CC
Figure 19-18. ADC Current vs. V
CC
BROWNOUT DETECTOR CURRENT vs. V
CC
85 °C
25 °C
-40 °C
0
5
10
15
20
25
30
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
ADC CURRENT vs. V
CC
f = 1.0 MHz
-40 °C
25 °C
85 °C
0
50
100
150
200
250
300
350
400
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
