ATtiny13A
19.7 Pull-up Resistors

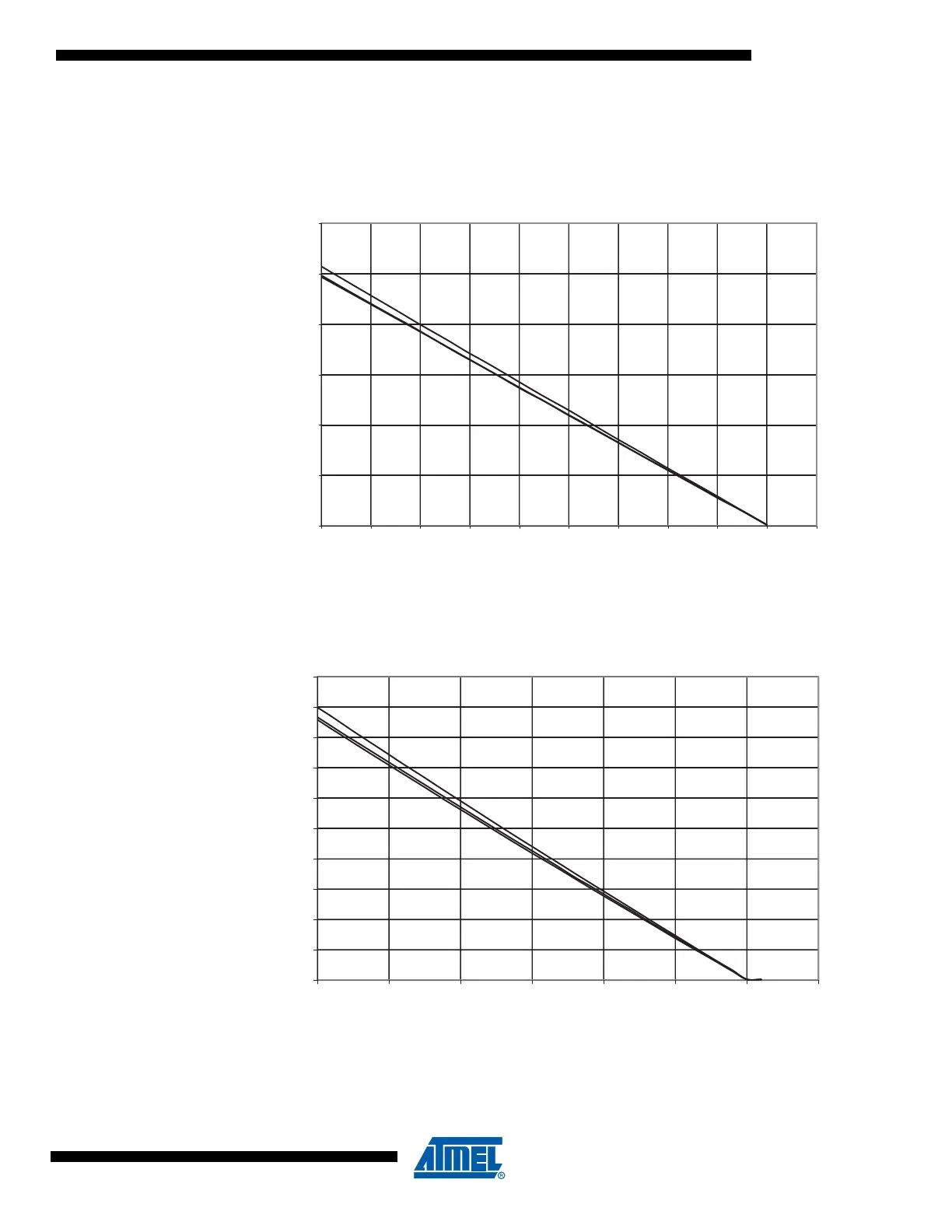

Figure 19-21. Pull-up Resistor Current vs. Input Voltage (I/O Pin, V
CC
= 1.8V)
Figure 19-22. Pull-up Resistor Current vs. Input Voltage (I/O Pin, V
CC
= 3V)
85 °C
25 °C
-40 °C
I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE
V
CC
= 1.8V
0
10
20
30
40
50
60
0 0,2 0,4 0,6 0,8 1 1,2 1,4 1,6 1,8 2
V
OP
(V)
I
OP
(uA)
85 °C
25 °C
-40 °C
I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE
V
CC
= 3V
0
10
20
30
40
50
60
70
80
90
100
00,511,522,533,5
V
OP
(V)
I
OP
(uA)
