2325 Orchard Parkway
San Jose, CA 95131
TITLE
DRAWING NO.
R
REV.

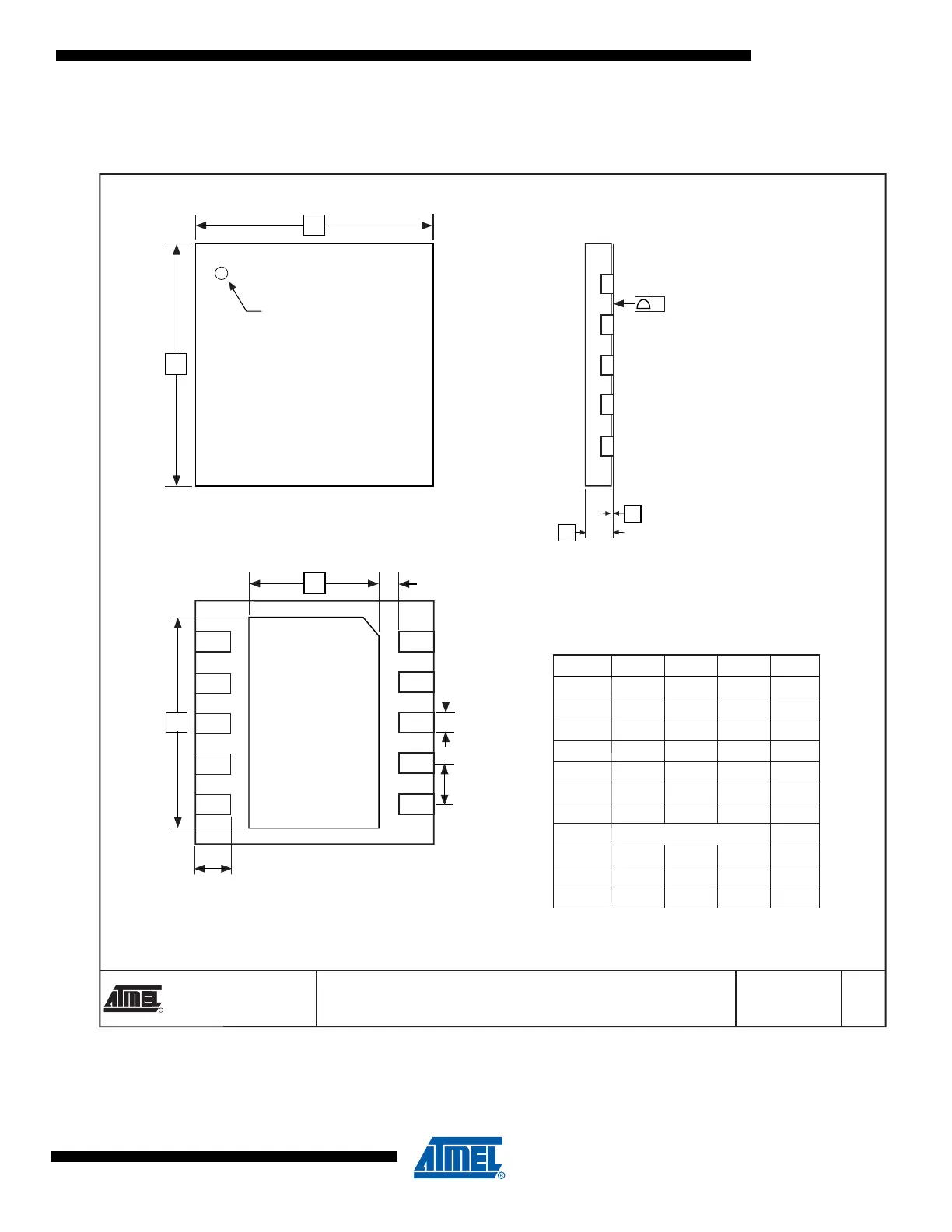

10M1, 10-pad, 3 x 3 x 1.0 mm Body, Lead Pitch 0.50 mm,
1.64 x 2.60 mm Exposed Pad, Micro Lead Frame Package
A
10M1
7/7/06
COMMON DIMENSIONS
(Unit of Measure = mm)
SYMBOL
MIN
NOM
MAX
NOTE
A 0.80 0.90 1.00
A1 0.00 0.02 0.05
b 0.18 0.25 0.30
D 2.90 3.00 3.10
D1 1.40 – 1.75
E 2.90 3.00 3.10
E1 2.20 – 2.70
e 0.50
L 0.30 – 0.50
y – – 0.08
K 0.20 – –
Pin 1 ID
TOP VIEW
D
E
A1
A
SIDE VIEW
BOTTOM VIEW
D1
E1
L
b
e
K
1
2
Notes: 1. This package conforms to JEDEC reference MO-229C, Variation VEED-5.
2. The terminal #1 ID is a Lasser-marked Feature.
y
