Audio
Audio Input Options

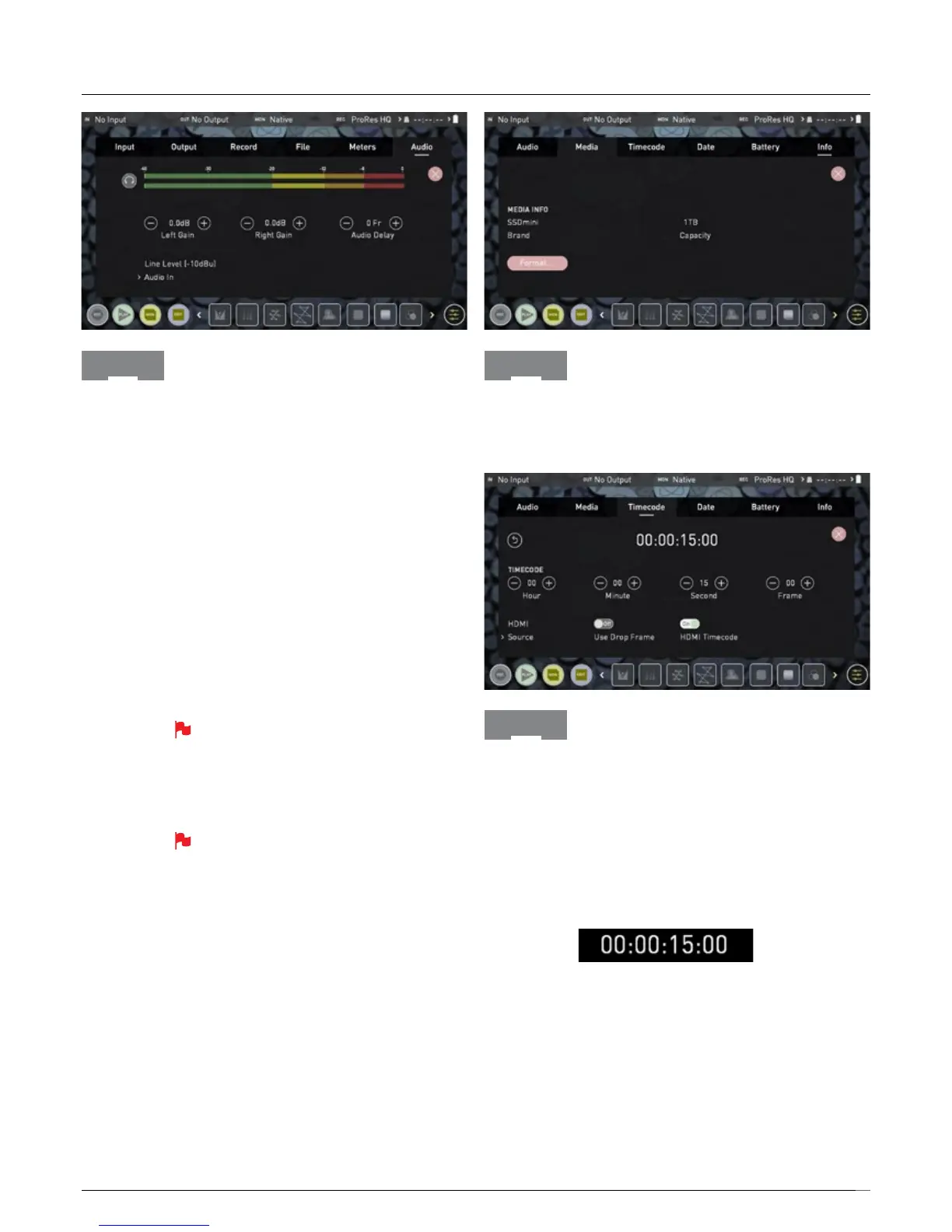

To adjust the gain on the analogue input you need to
bring up the audio options page by pressing in the
lower right corner of the audio menu.
To select the input line Level to match your device.
Options available are:
• Line Level (-10 dBu)
Sets the analogue input channel to Line Level via the
3.5mm audio jack.
• Mic Level (-40 dBu)
Sets the analogue input channel to Mic Level via the
3.5mm audio jack.
Analogue gain can then be tuned by incremental
increase or decrease of up to +/- 20dB individually for
both left and right channels.
It is not possible to vary the gain if the signal input
is from the HDMI connection because this is digital
and is embedded in the signal. You can usually
adjust this from the camera, please see your
camera manual for operational details.
Ninja V Mic input supports dynamic and powered
microphones only. When using these, audio must
be set as Mic Level
Audio Delay
This option allows you to delay the Audio to be in sync
with the video by adding in frame delays.
Audio during Playback Mode
When you enter into Playback mode on the Ninja V it will
only output channels 1/2 on the headphones, please
bear this in mind when you select the audio channels
for recording.
Media
Media menu shows current media type and capacity.
Format disks from this menu. See Format Media on
page 12. Information about compatible drives is
available at atomos.com/drives
Timecode
Using Timecode
The timecode display changes position depending on
the screen mode you are using. In monitoring mode it
appears in the center top, below the info bar. In home
screen mode the timecode display sits on the bottom
near the REC PLAY MON EDIT icons.
Touching the Timecode display on the home screen,
just below the information bar will take you to the
Timecode setup screen.
The Timecode modes supported are:
• HDMI (Embedded)
• Record Run
• Time of Day
• Auto Restart
Cycle through these modes by touching the Timecode
Source Selector.
Audio Media
Timecode
