28
The Brightness slider directly controls the intensity of the waveform while
the opacity slider adjusts the transparency values of the waveform
display on screen. Experiment with these controls to achieve your desired
monitoring setup.

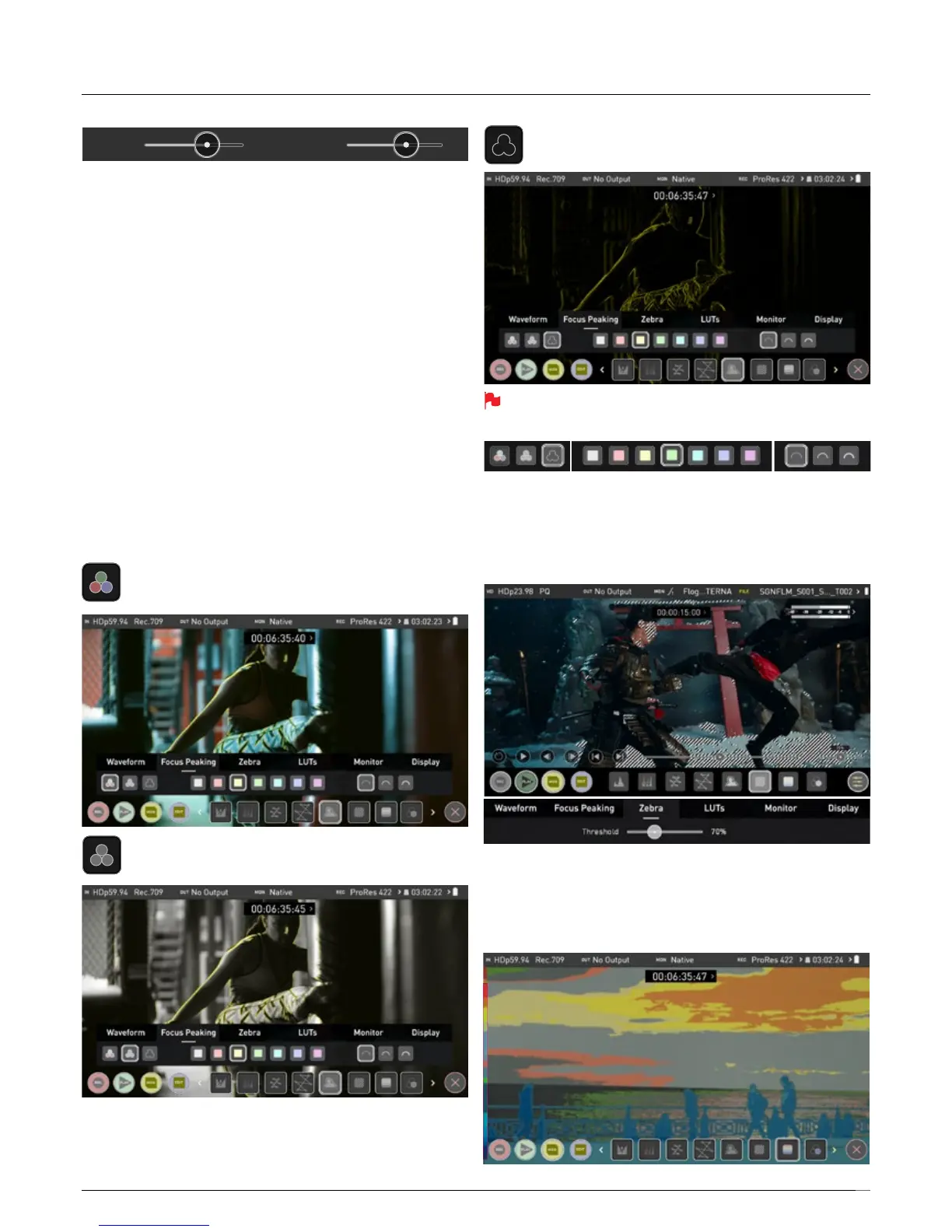

Using Monitor Assist tools
AtomOS10 features monitoring tools that help with making your shot
picture perfect. Easily access Focus Peaking, Zebra, False Color and
Blue Only Exposure to check image is in focus, noise free and correctly
exposed. Options for safe area/ title area markers along with aspect ratio
markers and anamorphic desqueeze functions are also available.
Focus Peaking
Focus peaking allows the user to ensure their recordings are always in
focus. The parts of the image in focus are highlighted by the selected
color (can be adjusted by dragging the slider). There are a number of
options for how peaking is displayed, it can overlayed over the color
video image, over a greyscale image or just show the peaking my
selecting the corresponding icon.
Focus Peaking Color
Focus Assist Outline
You can change the focus peaking colors and modes by touching the
icons in the focus peaking menu.
Zebra Threshold
Zebra pattern show the parts of the image that are exposed +-5% of the
target level set. The Zebra threshold value can be adjusted by moving
the slider left or right.
False Color
False Color assigns different colors to areas of different brightness in the
image. This gives a visualization of what is going on with exposure across
the image. There is a scale on the left hand side, overexposed elements
will display as red, and underexposed elements will display as blue.
BrightnessOpacity
Outline color Outline widthMode
Focus Peaking Mono
8. Monitoring & Recording
