Atomos Shogun 7 – User Manual Edition 1: November 2019 13

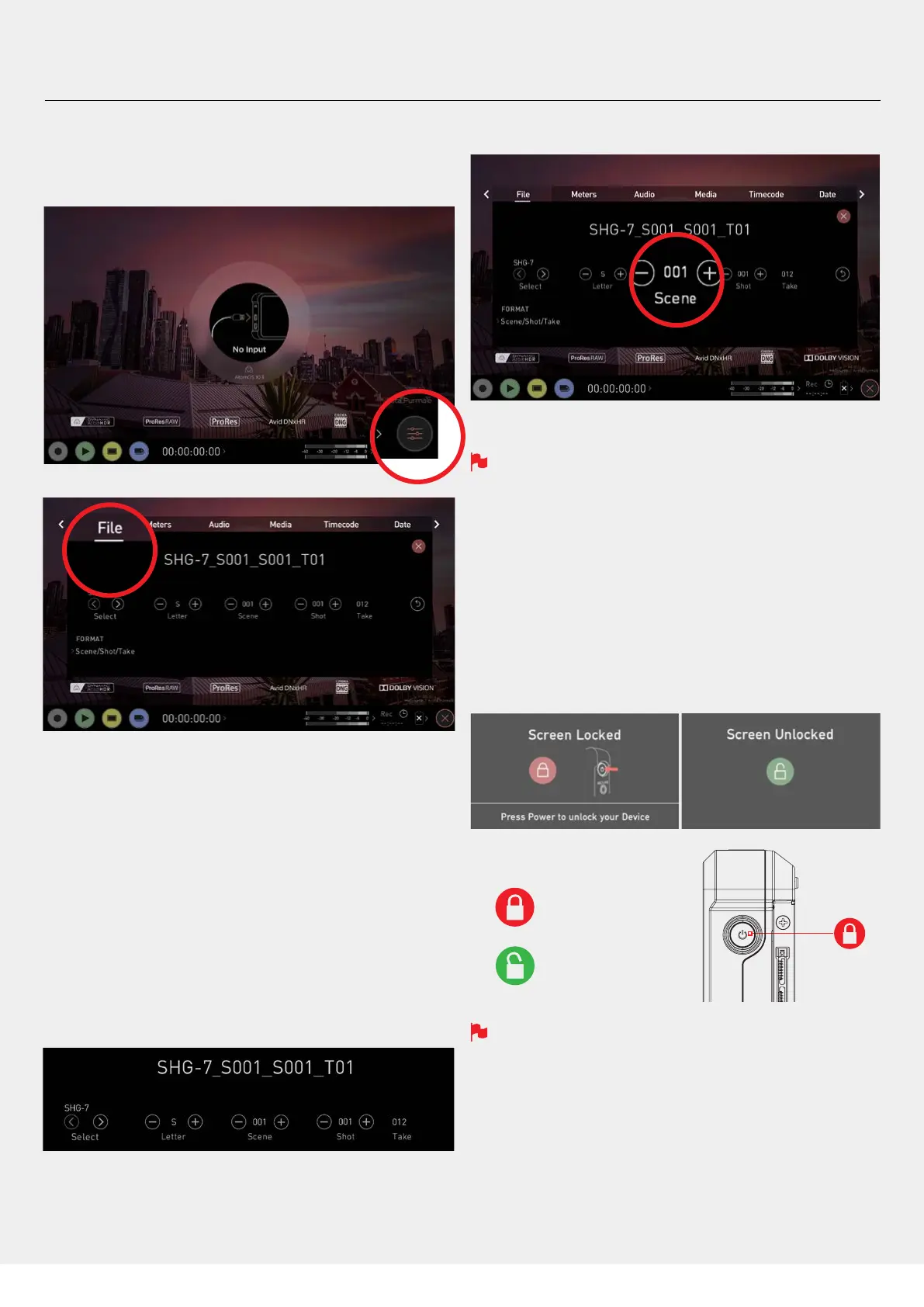

b. Unit Name
To access the unit name tap the input settings from the home screen
Information bar.
Then navigate to the FILE TAB
The unit name serves two main purposes:
• Drive Naming:Givingtheunitauniquenameaidswithidentication.
Once you have given it a name all drives subsequently formatted in the
Shogun7willbearthisnameasaprex.
• File Naming: File name is the current unit name as the start of the
recorded clip name; SHGN7_S001_S001_T001
c. File naming
Create your own unit name by pressing the arrow to change and enter
the letters in. Pressing OK will allocate the new unit name and return you
to the menu screen.
This process can be very useful when using multiple devices or with
multicamshoots.Goodlemanagementnowwillsaveyouvaluabletime
in post production.
• Scene and shot can also be set using the + - controls. Take is automated.
When changing the drive please ensure that you take note of the
last scene and take number so you can append this as formatting a
drive will reset the scene and take counter to 001,001,001.
d. Screen Lock
Lock the Display Screen
You can lock the display of the Shogun 7 by tapping the power button.
This will ensure no changes can be made by mistakenly touching the
screen. The screen lock function will simultaneously lock or unlock both
Channels of the Shogun 7.
Short tap the power button again to unlock the unit.
The lock screen can be combined with the display off function so
that when lock is engaged the display is turned off. The Tally light on
the front of the unit will still display Rec (Red) or idle (green) status.
Locking of the display can be found in the Monitor Mode.
