Atomos Shogun 7 – User Manual Edition 1: November 2019 6
Mounting drives in the Master Caddy II
If you choose to use your own disks instead of a pre-built AtomX SSDmini,
follow this procedure to install it in the provided Master Caddy II.
Insert the disk into the caddy, and secure with four screws. These screws
shouldbetightenedsothescrewheadsareushwiththecasingofthe
caddy. The caddy is light and the disk just needs to be held securely.
Don’t over-tighten the screws. There are no connections to make because
sliding the Master Caddy II into the Shogun 7 or the docking station makes
all the connections for you.
The Master Caddy can’t be inserted the wrong way round. Always make
sure that the disk connector faces the slot in the Shogun 7. Push the Master
Caddy II into place, but never force the disk just in case something isn’t
set up or aligned properly.
There is very little that can cause problems and the most likely thing is
thattheMasterCaddyisn’tproperlyushwiththedriveinside.Aquick
visualcheckwillconrmthis.
SSDs and spinning disks are very sensitive to damage from
static electricity. Please observe all the usual precautions
when handling them. DO NOT touch the exposed SATA connector
as static electricity may be harmful to your disk.
Master Caddy II drives are backwards compatible with previous
Atomos recorders, however Master Caddy 1 is not forward
compatible with the Shogun 7 due to the compact latch design.

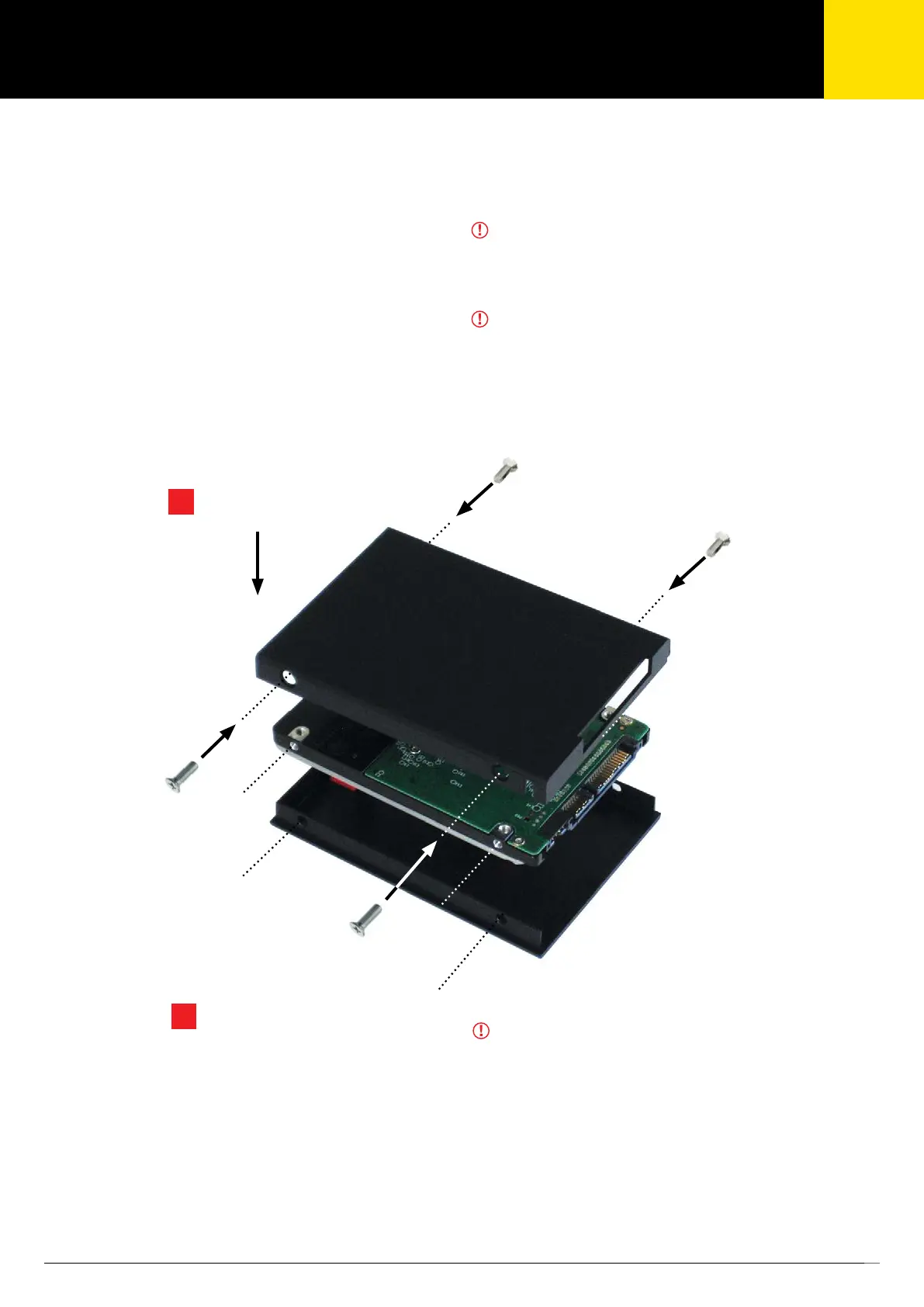

3. Mounting disks in the Master Caddy II
1
Carefully assemble the
Master Caddy II and disk
Ensure all 3 parts aligned
and insert 4 x screws (supplied)
Do not over-tighten screws or alignment
can not be guaranteed. We suggest
squeezing the corners together near the
screwyouaretighteningforoptimalt.
Insert screw
Align all parts
Insert screw
2
If using Master Caddy II with Shogun 7 ensure all screws are tight
and not protruding from casing. Loose screws may cause the caddy
to become lodged in the disk slot.
