Main Controls
REC (Record):
Jump to Record Home Screen
PLAY:
Play and pause the current clip
MON (Monitor):
Reveal/hide monitoring tools. Toggle on/off
EDIT:
Reveal/hide Edit tools. Toggle on/off
Settings:
Touch to access Playback settings and tools.
Playback mode
Pressing the Play button switches the device into playback mode and the
last clip recorded on to the drive will instantly begin to playback.
Once within Play mode the complete Monitoring and Edit tool sets are
available by tapping the buttons. Switch from Monitor to Edit tools by
toggling the MON and EDIT buttons. Playback allows you to instantly analyze
the content. This is key for establishing if takes are correctly focused, lighting
has changed, or previewing recorded content with LUTs applied.
Clips/Playlist can be selected by tapping the folder icon in the lower right
of the screen, or skip to the next or previous clip via the on screen controls.
Additional controls allow you to scrub through clips, set the playback speed
and direction, as well as the ability to set the play mode to Loop.
All these functions can also be used in ‘Playout’ mode, and you footage can
be viewed on a larger screen or monitor for review and appraisal. You can
even apply Log curves and LUTs to you clips as they are being played back.

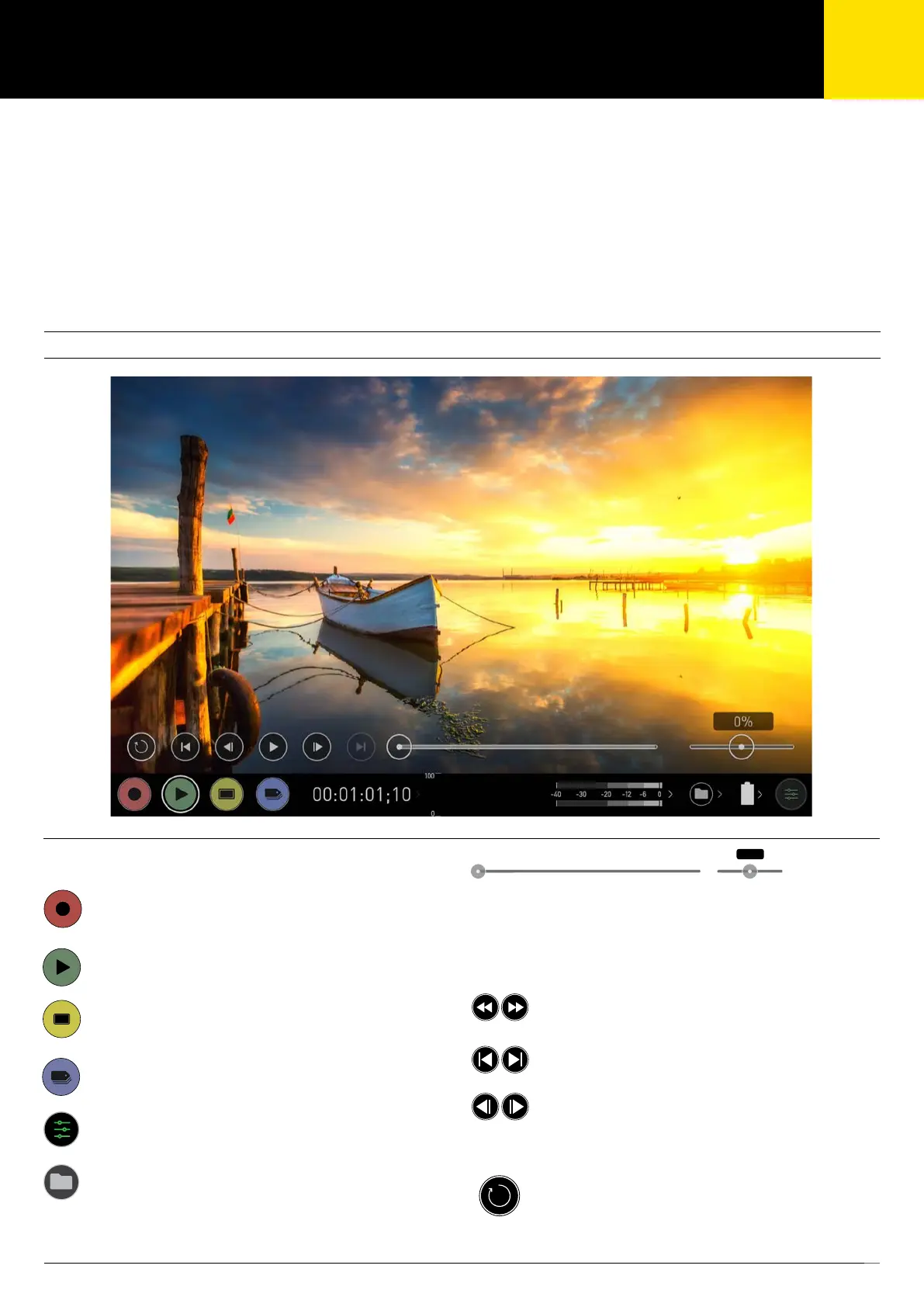

Playback Mode / Home
Recorded Files
Browserecordedles
Scrub bar | Speed/direction control
Available during playback. Scrub forward and back.
Set playback direction and speed. The percentage slider allows for you to set
the playback speed. This is perfect for previewing high frame rate at half or
quarter speed such as 60p at 30p in either forward or reverse directions.
2x/4x
Play back at 2 x or 4x speeds both forward and in reverse.
Next/Previous
Jump to next our previous take.
Advance
Whilst a clip is Paused these buttons have the ability to step
the clip by 1 second either forward or reverse to give you
chance to analyse the clip in more detail.
Loop
Tap to enable loop playback. In and out markers can also
be utilized.
9. Playback & Playout
0%
0%
0%
0%
0%
0%

Atomos SHOGUN 7 Specifications

General

Internal	No
Product color	Black
Video capturing speed	60 fps
Maximum video resolution	3840 x 2160 pixels
Operating temperature (T-T)	0 - 40 °C
Power consumption (max)	33 W
Built-in display	Yes
Display diagonal	7.2 \

Weight and Dimensions

Depth	45 mm
Width	214 mm
Height	127 mm
Weight	709 g
