Atomos SHOGUN 7 User Manual

Atomos Shogun 7 – User Manual Edition 1: November 2019 21

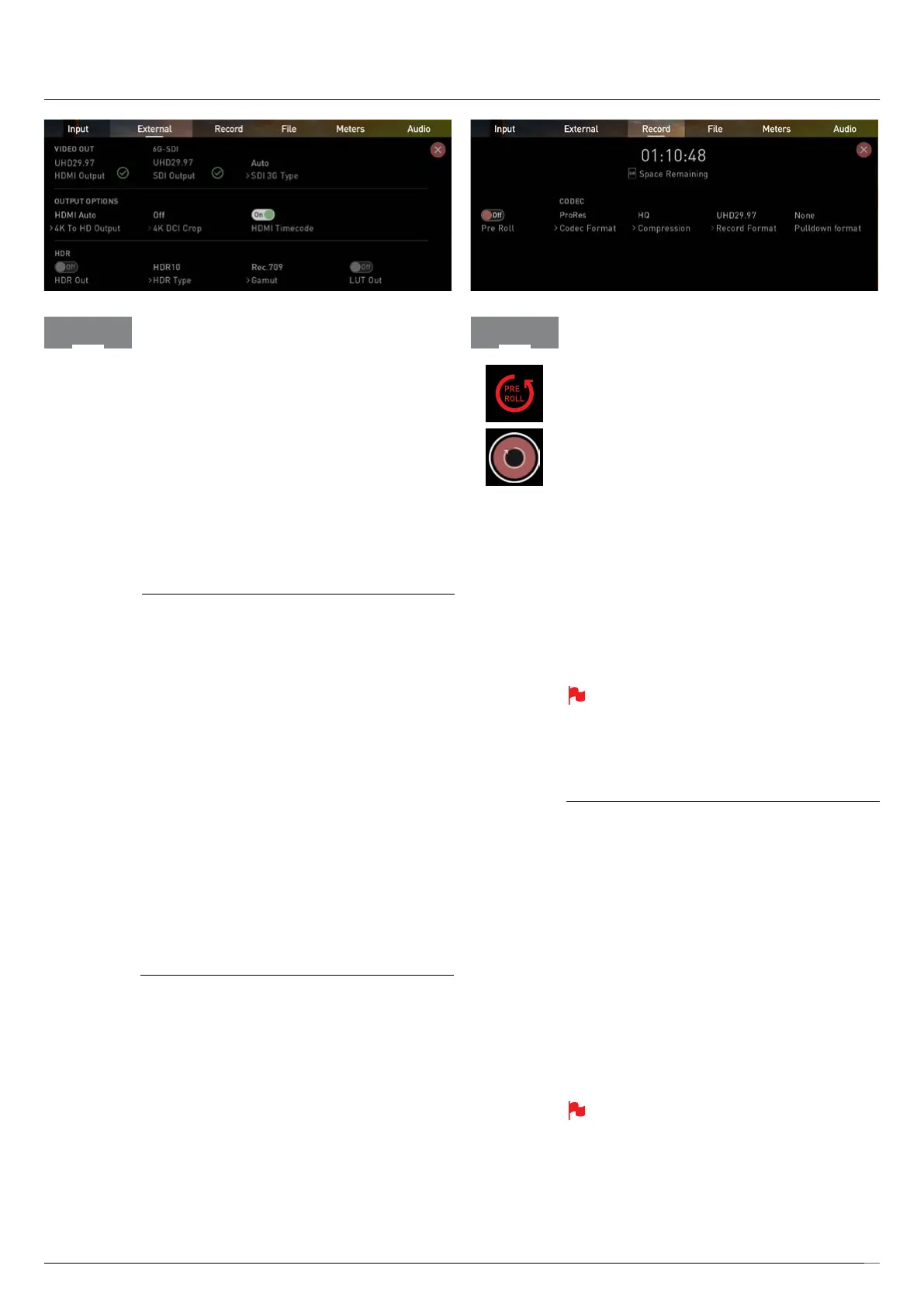

External
This menu displays the active video format being output
from HDMI. A 4K to HD down conversion can be applied
to the output. This enables you to send a 4K input signal
to a HD device. When working in HDR a signal will be
outputwiththecorrectHDRagtoactivateacompatible
HDR display’s settings. This can be useful if you wish to
monitor log footage in the studio.
VIDEO OUT
this option will show the resolution of the Input. When
processing options are applied below it will be adjusted
accordingly.
OUTPUT OPTIONS
4KorUHDinputscanbescaledforoutputusingtherst
option. This will scale 4K to 2K and UHD will be scaled to
HD 1080p. The 4K DCI crop will trim the 17:9 DCI input
to 16:9 converting the signal to UHD or with the other
option selected down scale to HD.
4K DCI Crop
Crop the output signal from UHD 4K down to DCI 4K
HDMI timecode
Allows for the embedded time code or in unit generated
time code to be looped out. The option is present to
allow you to turn the time code of as this can disrupt
some consumer equipment that is not intended to
receive embedded timecode.
Audio Embed
Choose the audio channels to embed for output.
HDR
Here you are able to set a conversion from your LOG
input to a HDR display standard such as HLG or PQ.
Youcanalsodenetheoutputcolorgamutfromyour
camera’s gamut to a display standard for BT2020,
DCI-P3 or Rec709.
Record
Pre-Roll
With this option turned on you will see a red Pre-Roll icon
ashinthetoplefthandcornerandawhitecircular
arrow around the record button. Whilst enabled the input
is constantly been recorded with approximately the last 8
seconds in HD and 2-3 seconds in 4K being cached into
memory. The frame rate and codec selected will
determine the number of seconds being cached for
Pre-Roll. Using a lower bit rate codec setting and shooting
at lower frame rate will increase the length of Pre-Roll.
When the record button is pressed or trigger is sent,
the buffered Pre-Roll data in memory will be written out
to the start of the recording. This means if you are few
seconds slow hitting the record button when something
interesting happens you will still capture the shot.
With Pre-Roll mode activated the recorder is
constantly caching frames internally to the unit and
as such any feature that can not be changed whilst
recording is disabled. This includes audio channel
select, 3D LUT record, codec, disk options etc.
CODEC (Recording Format)
To select a codec simply tap on the currently displayed
codec to toggle between ProRes, ProRes RAW or Avid
DNxHD*. The Quality menu allows you to toggle codec
compression.
- Apple ProRes HQ, 422 & LT
- Apple ProRes RAW RAW, RAW HQ
- Avid DNx 220x, 220, 145, 36
- Avid DNxHR HQX, HQ, SQ and LB
The expected record time available from each codec
selection is automatically calculated from the available
space on the media inserted.
More information regarding Apple ProRes and
ProRes RAW data rates can be obtained online
from Apple ProRes whitepaper documents.
* If Avid DNxHD / DNxHR is required, you must
activate it rst. This can be done at
www.atomos.com/support
Record
External
7. Using the Shogun 7

Atomos SHOGUN 7 Specifications

General

Internal	No
Product color	Black
Video capturing speed	60 fps
Maximum video resolution	3840 x 2160 pixels
Operating temperature (T-T)	0 - 40 °C
Power consumption (max)	33 W
Built-in display	Yes
Display diagonal	7.2 \

Weight and Dimensions

Depth	45 mm
Width	214 mm
Height	127 mm
Weight	709 g
