Connect
To access and edit your recorded material, connect the Master Caddy
Docking Station to a Mac
®
or Windows
®
editing workstation via USB 2.0,
USB 3.0 or UBS-C 3.1.
Eject the Master Caddy or SSD mini from your Shogun 7 and insert it into
the Docking Station. After a short wait, the recorded video will be
accessibletothetargetcomputerviaastandarddisk(exFAT)lesystem.
NLE supported
We have chosen the Apple ProRes
®
, Apple ProRes RAW, Avid DNxHD
®
and Avid DNxHR+ codecs as they are both not only visually lossless, but
also edit-ready formats. All major NLEs support ProRes and DNxHD/
DNxHR.
• Final Cut Pro (version 7)
• Final Cut X
• Davinci Resolve 8.0 +
• Adobe CS5 (with 5.51 update or later)
• EDIUS 6
• Vegas 10
• Lightworks
• Avid Media Composer 6 (version 8.3 or later for DNxHR)
• Autodesk Smoke
Avid DNxHD / DNxHR support requires online activation.
ExFAT compatibility
TheShogun7formatsyourdiskasexFAT.Wehavechosenthisle
systemtoovercomethe4GBlelimitationofFAT32andkeep
compatibility on both Windows and MAC OS.
The Operating Systems that support exFAT are:
• Windows 10
• MacOS 10.6.5 or higher
The Master Caddy Docking Station is a sophisticated device
supporting two different data interfaces: USB 2 and USB 3. When
using the Master Caddy Docking Station you may need to connect
both USB connectors. This is because when it has to power a disk
drive and its interface electronics, the Docking Station may consume
more power than is available from a single USB port.
Transferring les
Now your docking station is connected and your disk is recognized by
your operating system, you can edit directly from the drive or copy the
lestoyourownstorage.
Windows
OpenthediskinMyComputer>Selectallthelesorjusttheonesyou
wish to transfer, copy and paste them to your desired location.
(ctrl+c copy, ctrl+v paste).
Mac OS
YourShogun7diskwillshowinFinder.Selectthelesyouwishto
transfer,dragthelestoyourdesiredlocationorusethecopyandpaste
commands. (COMMAND + C copy, COMMAND + V paste).
12. Connecting & Editing

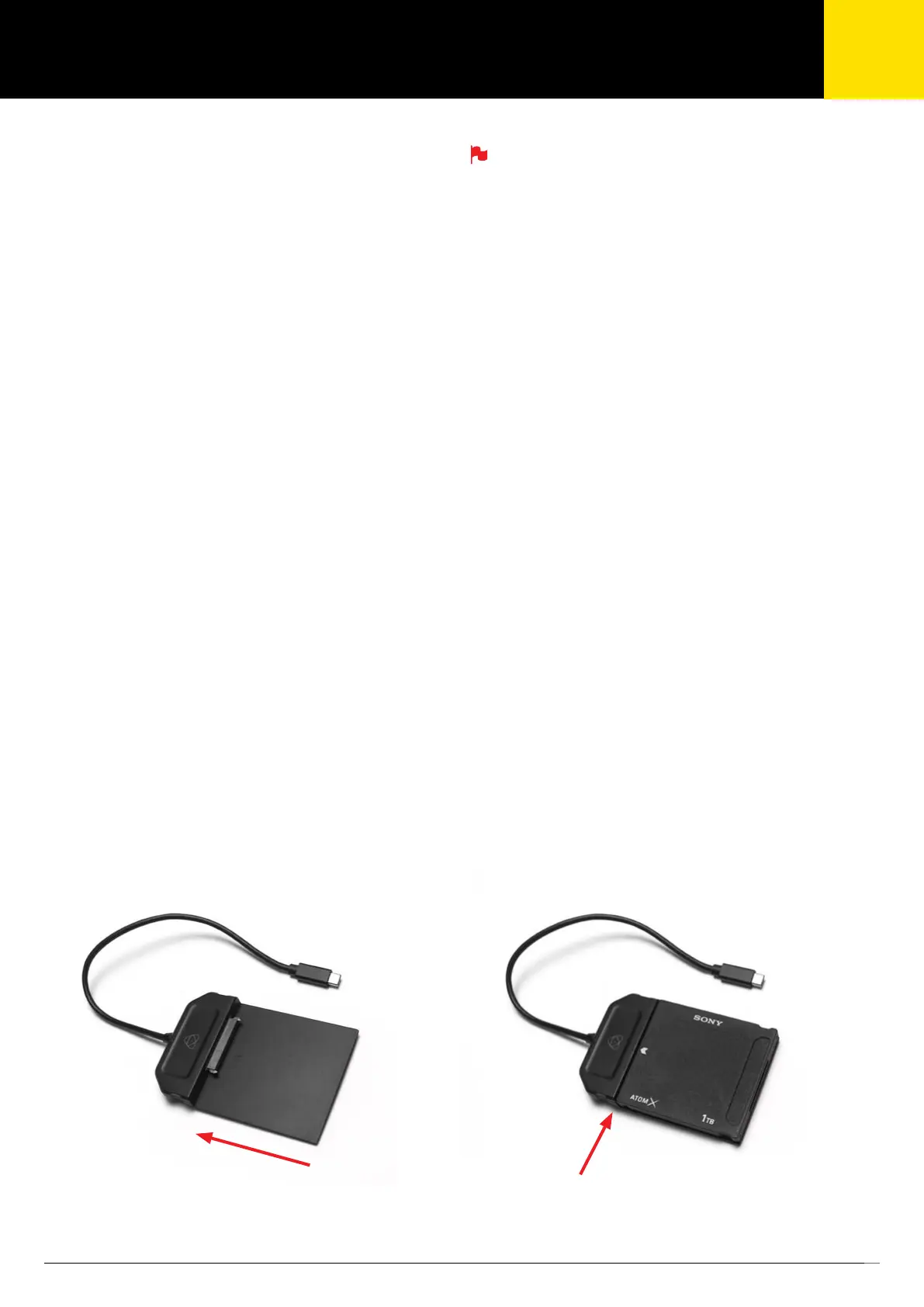

Attach AtomX SSDmini or Master Caddy
Ensure disk is properly attached
* When using the AtomX USB-C 3.1 Docking Station II with older computers a USB 3.0 Male to Type C Female adaptor is required.
Connect to Laptop/
Workstation*
USB 2.0, 3.0 and
USB-C 3.1 compatible

Atomos SHOGUN 7 Specifications

General

Internal	No
Product color	Black
Video capturing speed	60 fps
Maximum video resolution	3840 x 2160 pixels
Operating temperature (T-T)	0 - 40 °C
Power consumption (max)	33 W
Built-in display	Yes
Display diagonal	7.2 \

Weight and Dimensions

Depth	45 mm
Width	214 mm
Height	127 mm
Weight	709 g
