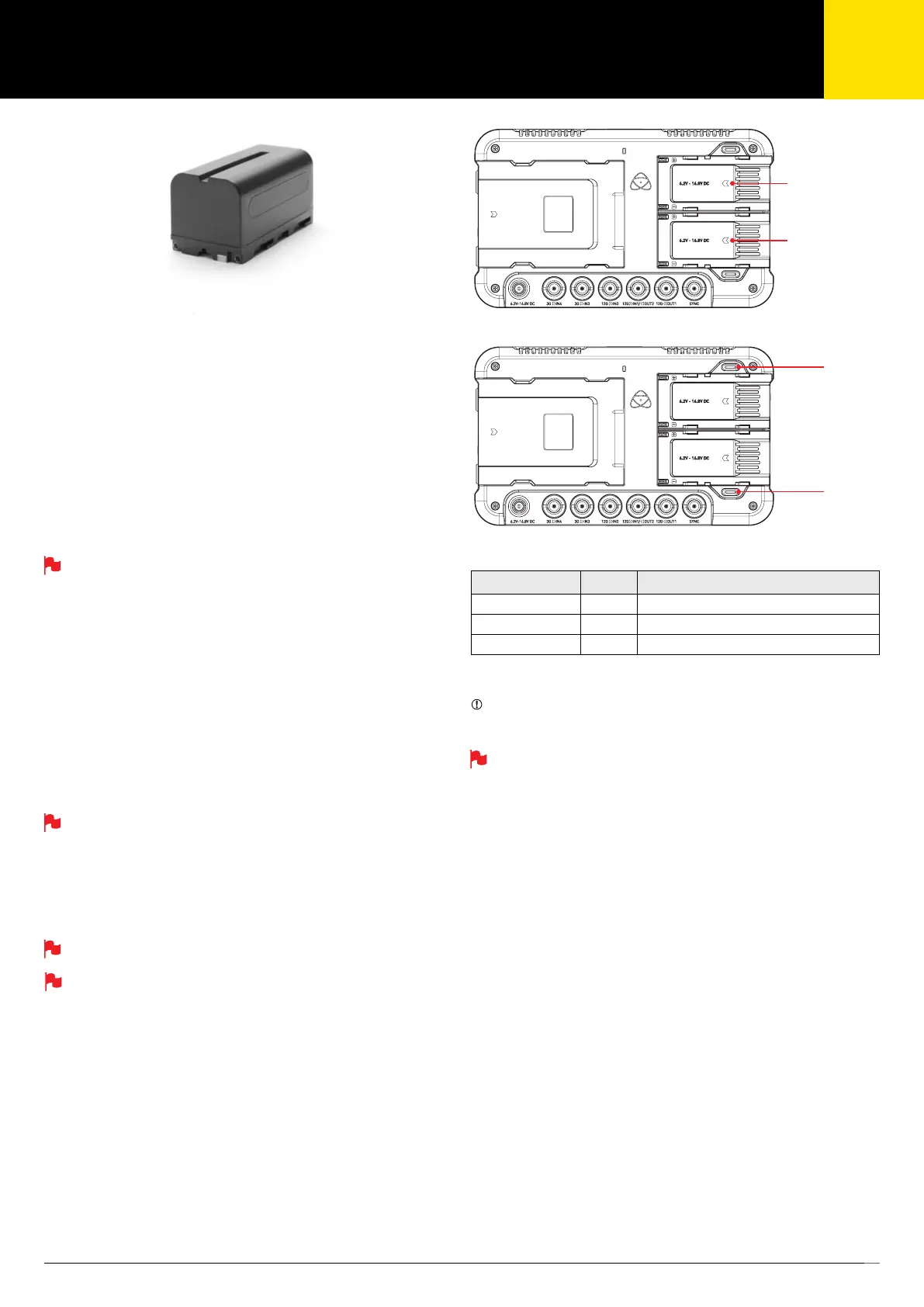

Atomos Shogun 7 – User Manual Edition 1: November 2019 7
Choosing your power source
The Shogun 7 can be powered by the included AC-powered adaptor, or
by using a compatible DC battery. If you are the owner of other Atomos
devices, the batteries you have for these devices (NP-F series) will be
compatible with your new Shogun 7.
Batteries
We recommend the use of optional Atomos NP-F type batteries and the
Atomos Power Kit with the Shogun 7. The Shogun 7 can also use standard
NP-F compatible batteries. Charge new batteries before using them, using
a compatible battery charger. To attach the battery, gently slide it down
into the slot until it locks into position. To remove a battery, push the latch
to release it.
Before any type of disposal the battery should be discharged
completely. Tape the contacts with electrical tape and package so as
to prevent contacts accidentally coming together at any time.
Incineration must be performed by an approved and permitted waste
treatment facility that handles lithium ion batteries. If you are not sure
if your waste facility can handle lithium ion batteries, contact them and
verify if they are permitted or not.
Atomos NP-F Battery Charger (optional)
The Atomos NP-F Battery Charger has been designed to rapidly charge
the batteries yet be lightweight so that is easy to travel with.
In the unlikely event of a charge error the rst and fast red LEDs
ashing quickly.
Fast charging of the battery is possible up to 80% capacity and the
remaining 20% will then charge at a slower rate to maintain good
battery life.
Batteries do not charge in a linear way. At rst they charge very
quickly, and then the rate slows down to a trickle. While charging,
one or more red lights will blink. When 90% charge is reached, all the
lights will ash. It is perfectly OK to use the batteries at this point and
we recommend stopping at this stage for the longest battery life. If
you leave the batteries on charge after all four lights are ashing, the
charger goes into trickle charging mode for the nal 10%. When trickle
charging is complete and the batteries are at 100% charge all the
lights will go out.
Choosing the right battery for your application
Size Cells Battery Life*
5200mAh 4 Up to 1hr 10minutes
7800mAh 6 Up to 1hr 50minutes
D-Tap - Source dependent
* Battery life tested during Monitor/Record 4Kp60 operation (AtomOS10.2).
We recommend using Atomos NP-F series batteries.
DC to D-Tap Coiled Cable
An optional Atomos accessory is a DC to D-Tap Coiled Cable.
This is designed to allow you to power your device from an external
battery system. To use this simply connect the D-Tap connector to
your power source. Ensure that the output of the power source does
not exceed 16.8V DC.
Shogun 7 batteries are held in place tightly because they are on
the outside of the device. To ensure that there is no possibility the
components are able to come loose, you may have to be quite rm
with the battery latches. We suggest that you familiarize yourself
with the force required to remove the batteries and accessories so
hat you can do this quickly in the eld.
4. Powering the Shogun 7
Battery slots
Position battery
over lugs and
gently slide
down into battery
slot and lock into
position
Battery release
Push the release
buttons to unlock
the batteries and
slide battery away
from device to
remove.
