Atomos Shogun 7 – User Manual Edition 1: November 2019 17

7. Using the Shogun 7

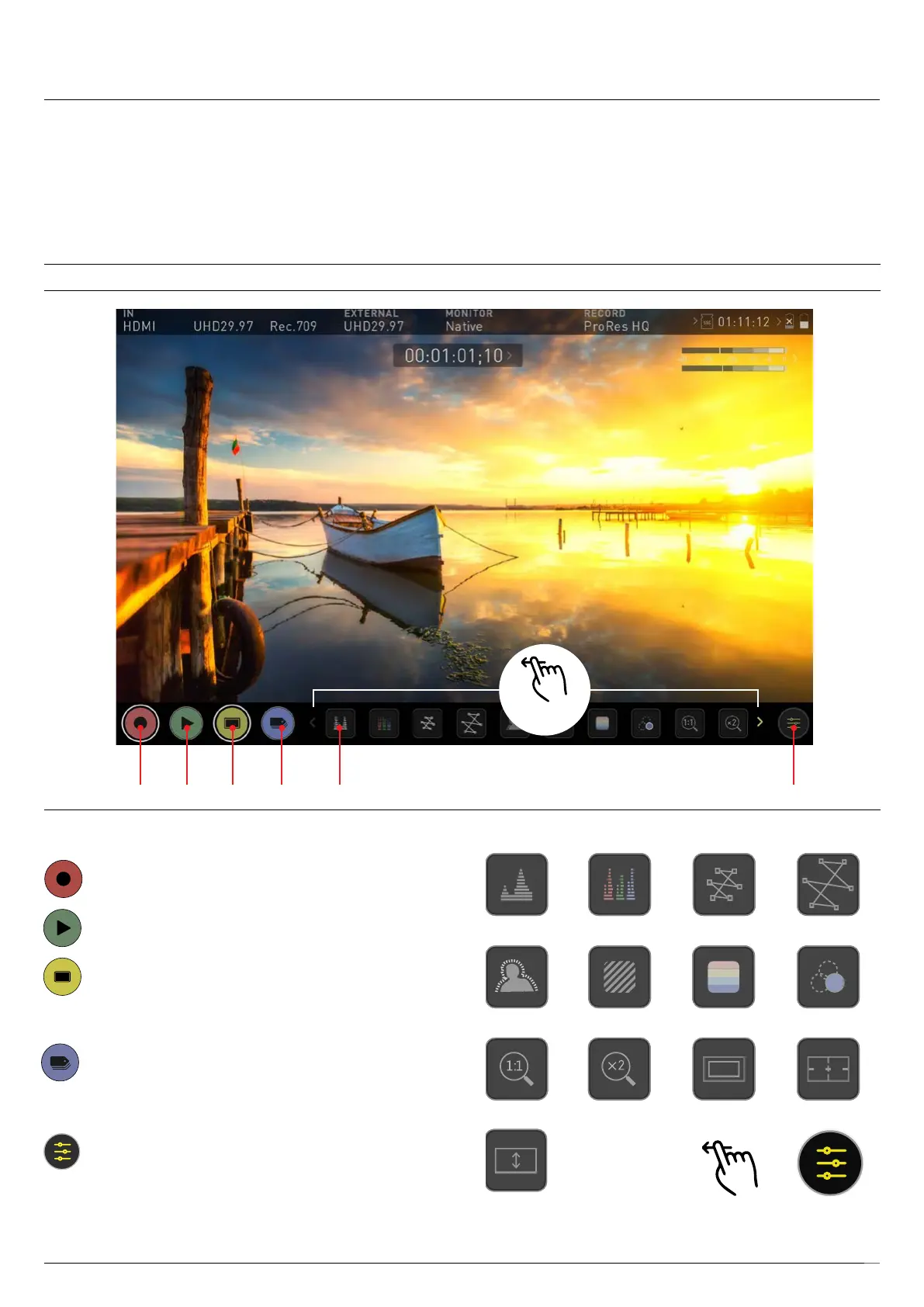

The Main Screen - Monitoring Features

At the bottom of the Monitoring screen are the Monitoring Features,

accessible by toggling the MON icon. Monitoring Features do not affect your

recordedleandcanbeturnedonandoff,oradjustedwhilstrecording

(unlessyouchoosetoburnaLUTleintoyourfootage).NotallMonitoring

featuresareavailableatrstglance–torevealallMonitoringfeatures,swipe

monitoring icons to the left. The icons will behave in a carousel like manner

and you can swipe left and right to access any of the features. At the bottom right

is the Settings button. Press Settings to adjust behaviours of Monitoring Tools.

Monitor Mode / Info

REC PLAY MON EDIT MONITORING FEATURE ACTIVATION ICONS SETTINGS

Main Controls

REC (Record):

Press to begin recording. Jump to Record Home Screen.

PLAY:

Jump to the most recently recorded clip / Playback Home Screen.

MON (Monitor):

At this screen, press once to revert to home screen view.

For Monitor settings press the Settings button. Any Monitoring

functions you have enabled will remain active until deactivated.

EDIT:

Press to show Editing Features and Information Bar.

Press again to return to home. Any Monitoring functions you have

activated will remain active until they are turned off.

SETTINGS (yellow):

Touch to access Monitoring Feature Settings. Set histogram sizes,

adjust transparency, LUTs, Focus Peaking and more.

MONITORING FEATURE ACTIVATION ICONS:

Luma Waveform RGB Parade Vectorscope Vectorscope Zoom

Focus Peaking Zebra False Color Blue Only

Zoom In Zoom X 2 Safe area Guides

Desqueeze Settings

Swipe left to reveal

Swipe left
