Atomos Shogun 7 – User Manual Edition 1: November 2019 5
HDMI cables
Take care to use HDMI cables of the appropriate grade and take care to
protect them from damage. Signal issues can often result from damaged
HDMI cables, or using cables that are too long.
Atomos makes a range of professional HDMI cables which are ideal for
connecting your camera to the Shogun 7. For 4Kp50/60 recordings, the
use of Atomos HDMI 2.0 cables would be most optimal.
Not all HDMI cables are created equal and there are a variety of different
qualities available. Please make sure you test your cables prior to shooting.
This is particularly important when recording 4kp50/60. Many cables will
claim to be high speed but will lack the required shielding on both the cable
and connector to maintain a high quality signal.
Check your connectivity at both the camera connector and
the recorder/monitor connector to make sure you have a rm
connection to avoid any signal drop out.
If the HDMI or SDI cable is removed while recording the “Skippy”
image will also be displayed. To remove touch Skippy and he will
disappear, ready for his next notication.
Refer to page 33, Atomos Anti-shock technology for more
information about “Skippy”.
4K SDI cables
SDI cables are robust physically and electrically; you should rarely have
problems with signal transmission unless your cables are either damaged
or too long. Please remember that SDI cables use locking connectors
and will not simply pull out if they are jerked or tripped over. They are a
signicanttriphazard,andalsoahazardtoyourequipment,whichmaybe
damaged if the cables are mishandled or of a low grade. Please ensure
you test and check your SDI cables for 4K. For longer runs, cables of a
Belden1694Aspecicationarerecommended.

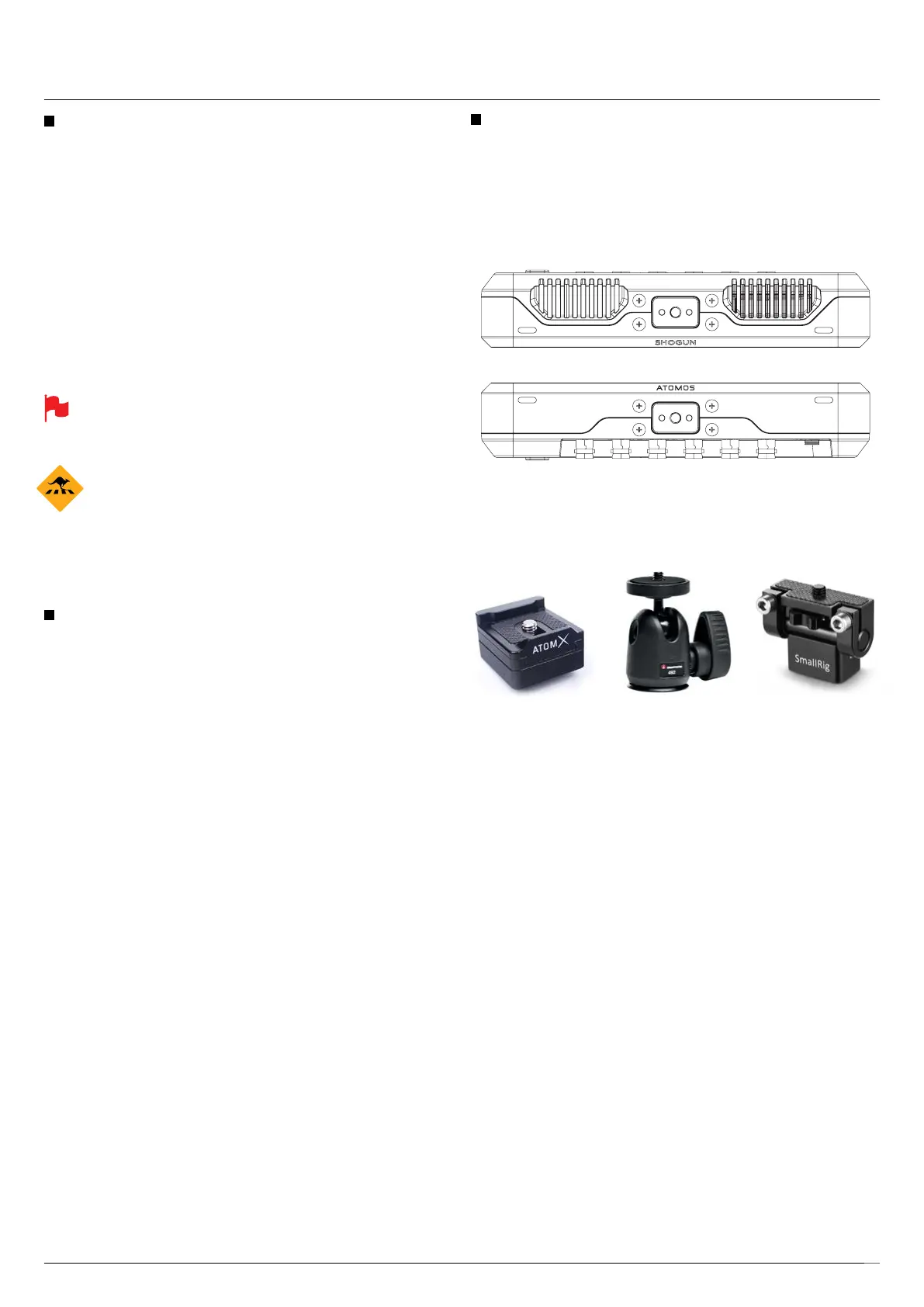

Standard 1/4” Mount/Arm
The Shogun 7 includes 1/4" -20 screw mounts top and bottom, along with
ARRI’s anti-rotational pin system for secure mounting to a wide range of
arms, mounts and cages. It is compatible with the latest mounting solutions
from companies such as Shape, SmallRig and Wooden Camera. Select the
mount type that best suits your input device, application and conditions.
2. What you also need
Below are some examples of tripod and hot shoe mounts, available from
most camera and video specialists.
A secure mount will greatly enhance usability and security of HDMI, power,
remote and audio connections. Related info on page 10.
