ATREA DUPLEX RA5 - 3.3 RA5 and RK5 Configuration Options

11

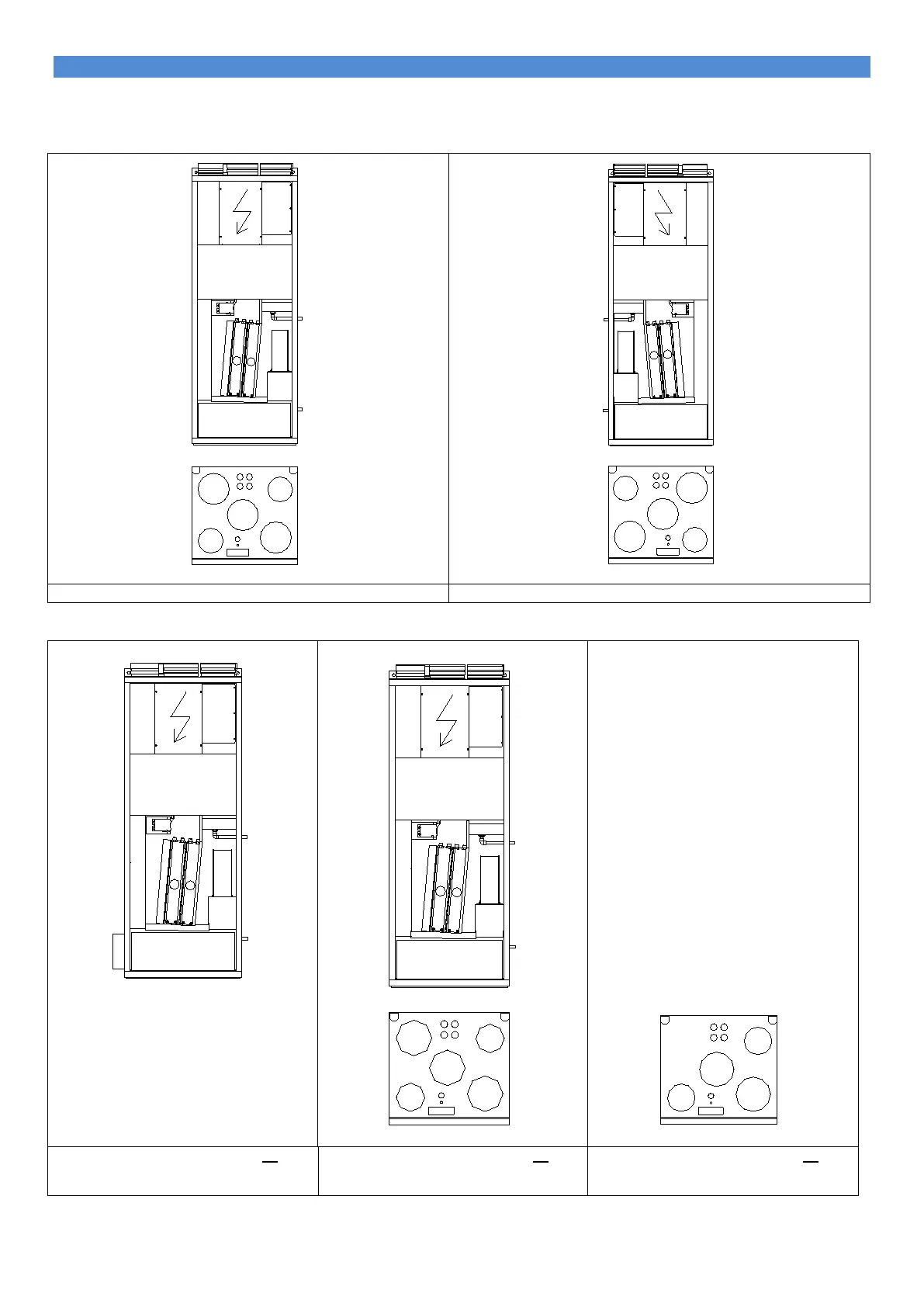

3.3 Configuration options 10 / 11 for RA5 and RK5 units
The basic configuration (that is, configuration 0) of RA5 and RK5 units has five circular duct connection collars from the top and one
rectangular connection from the bottom. This configuration can be arranged in a mirror-wise fashion to position 10 or 11 – this must
be specified when ordering as this cannot be done on site.
Configuration 10
Configuration 11
Below are further configuration options. Each modification must be specified when ordering as they cannot be carried out on site.
Duct connection configuration 01 –
bottom outlet C2 from the side
(RA5=D200, RK5=D250)
Duct connection configuration 02 –
without bottom outlet C2
Duct connection configuration 03 –
without top connection collar C2
K1
K2
+
-
C2
C1
E1
I1
I2
EL
UT
C2
K1
K2
+
-
C2
C1
E1
I1
I2
EL
UT
C2
K1
K2
+
-
2
K1
K2
+
-
C2
C1
E1
I1
I2
EL
UT
C1
E1
I1
I2
EL
UT
