ATREA DUPLEX RA5 - 3.4 RB5 Optional Configurations

12
3.4 Optional configurations of RB5 units
There are two basic configurations – 30/0 and 31/0, arranged in a mirror-wise fashion – must be specified when ordering as no
changes are possible on site.
.
Configuration 30/0
Configuration 31/0
The following two configurations can be arranged on site; they are versions with different positions of C2+E2 30/1 and 31/1
connections.
.
Configuration 30/1
Configuration 31/1

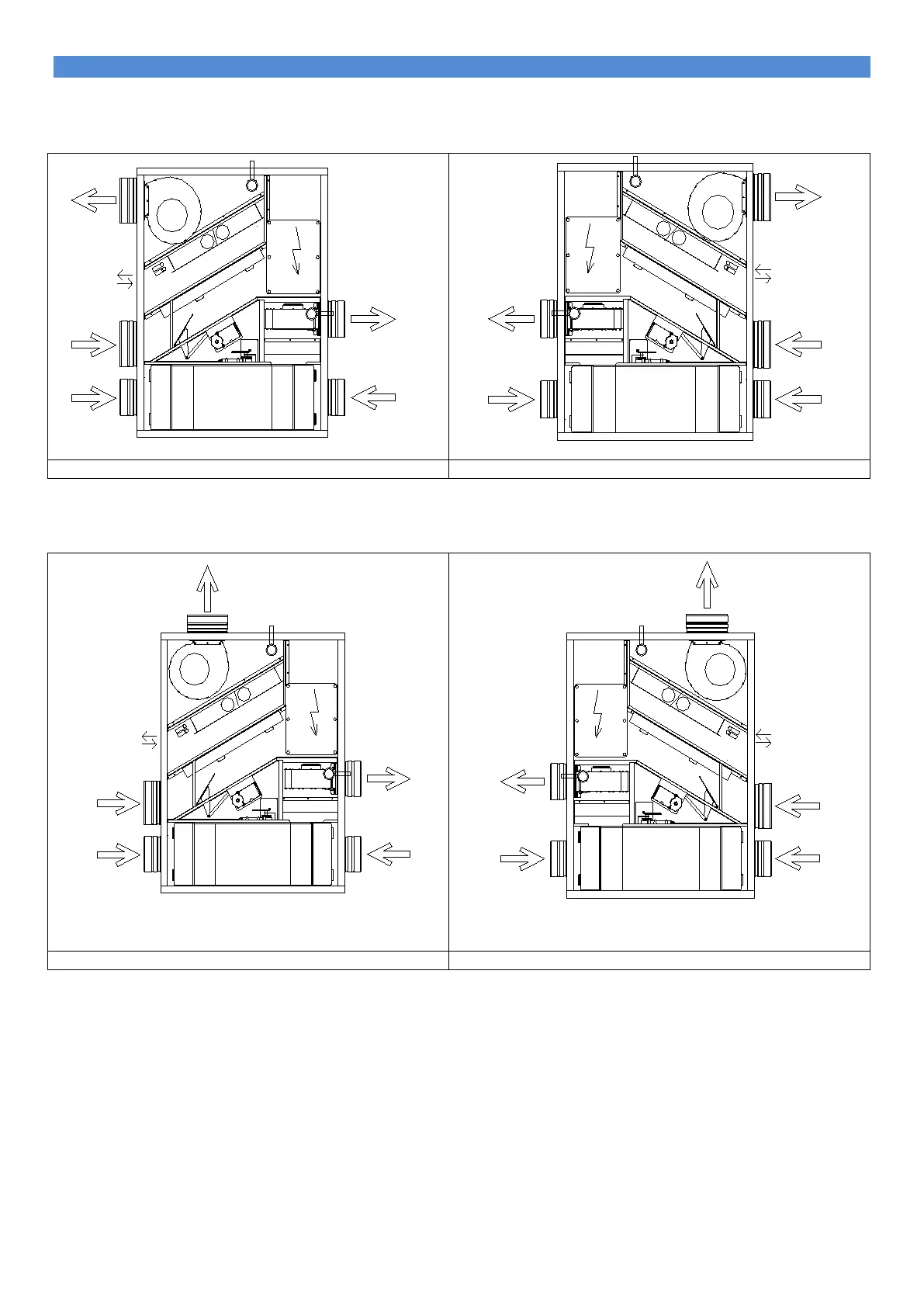

The drawings show the unit in a plan view, seen from the ceiling.
C2
C1
E1
I1
I2
K1
K2
RB4
30/0
-
+
C2
C1
E1
I1
I2
K1
K2
+
-
RB4
31/0
C1
E1
I1
I2
K1
K2
RB4 CHW
30/0
C2
-
+
C1
E1
I1
I2
K1
K2
+
-
RB4
31/0
C2
31/1
