ATREA DUPLEX RA5 - 4.42 Condensate Drain Line Connection; 4.5 Wiring and Cable Entry Point

17

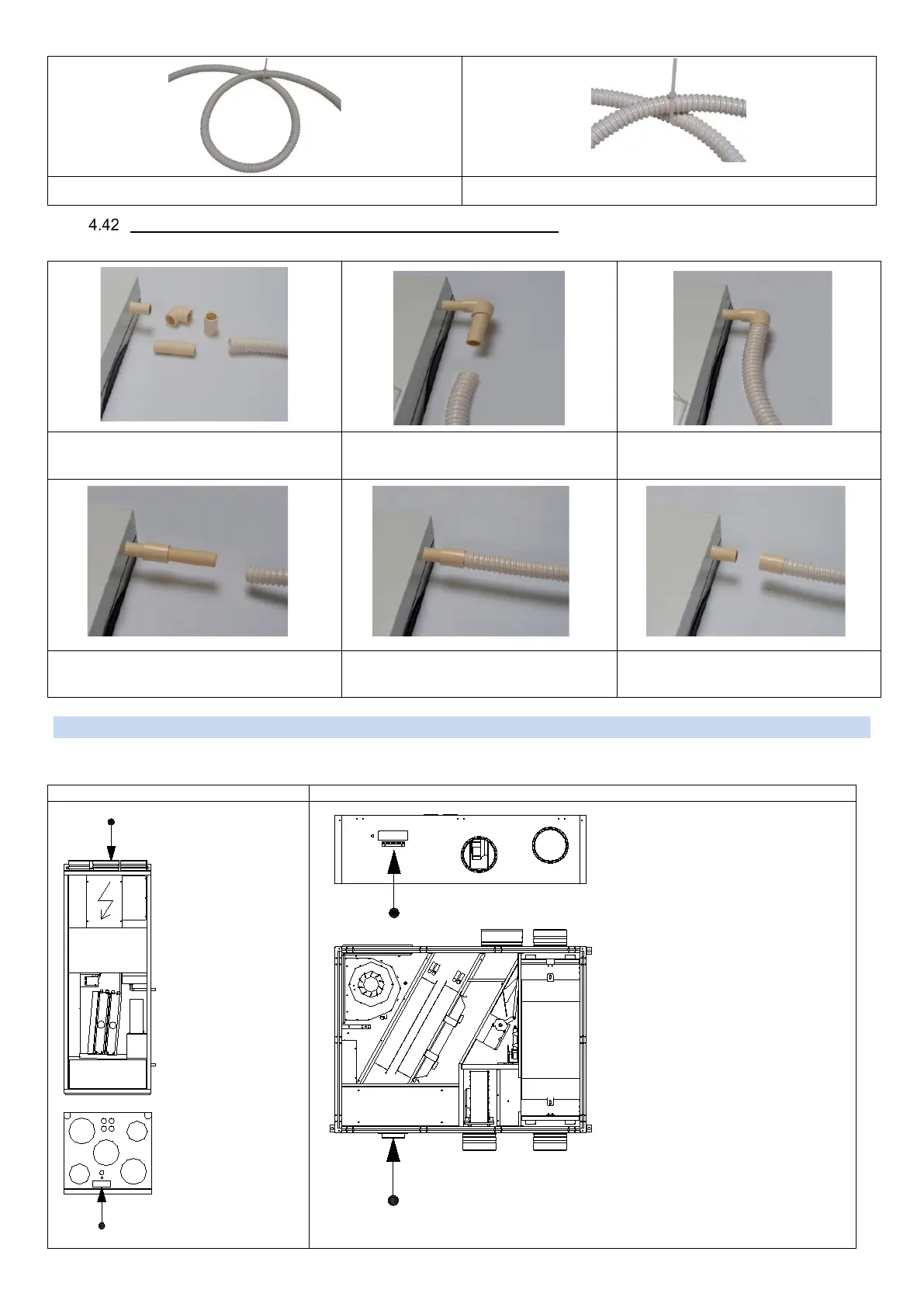

A trap on a flexible hose Close-up of trap attachment using a clip
Connecting the condensate drain line in DUPLEX R5 units
The condensate drain line is fitted identically in all DUPLEX R5 units.
a) Condensate drain from door on side i
2
+
condensate drain fittings
b) Condensate drain connection with
a 90° elbow the slide the hose onto
c) Sliding on the hose and securing it
with a clip (supplied by the installer)
Straight condensate drain connection with
a hose connector
Sliding on the hose and securing it with
a clip (supplied by the installer)
Disconnecting the condensate drain
line from the unit
4.5 Wiring and cable entry point
Do not connect the wiring until the unit has been completely mechanically installed and ducts tight-connected. The wiring must be
connected with the power supply switched off.
DUPLEX RA5 and DUPLEX RK5
DUPLEX RB5
K1
K2
+
-
C2
C1
E1
I1
I2
UT
EL
EL
EL
EL
