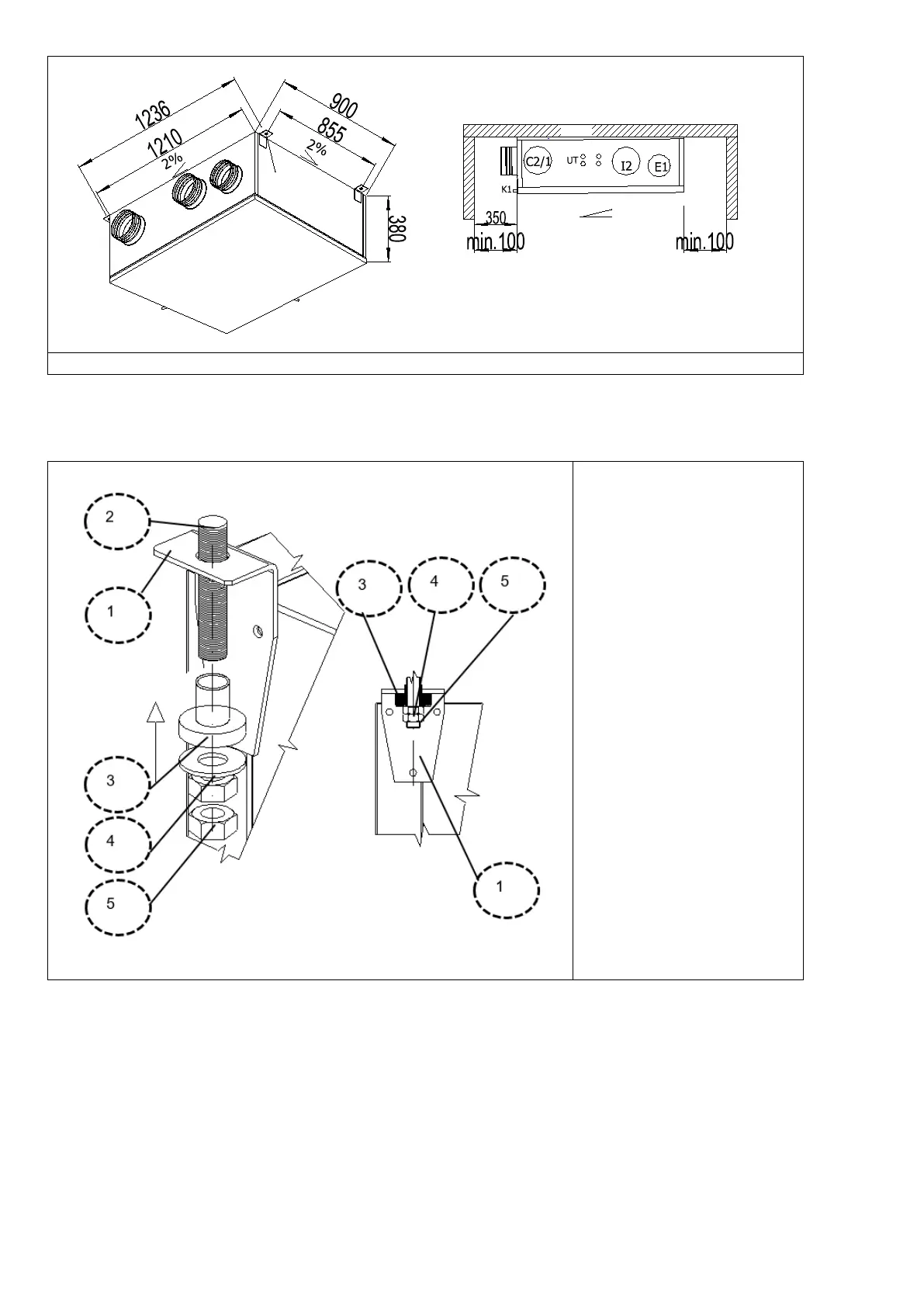

Distance between securing brackets in RB5 including clearances
The unit is suspended using M8 threaded suspension rods, if possible with vibration insulators (available as optional accessory
A160530).
KEY:
1 – Suspension bracket
2 – Threaded rod M8
3 – Vibration insulator – available
as a set under code A160530
4 – M8 washer – part of A160530
5 – Nut M8
K2
K1
C2/1
C1
I1
ceiling
2%
On the side without
the connection ports
4x
∅
12
On the side without
the connection ports
