Audient ASP8024 HERITAGE EDITION - Main Mix Inserts

47

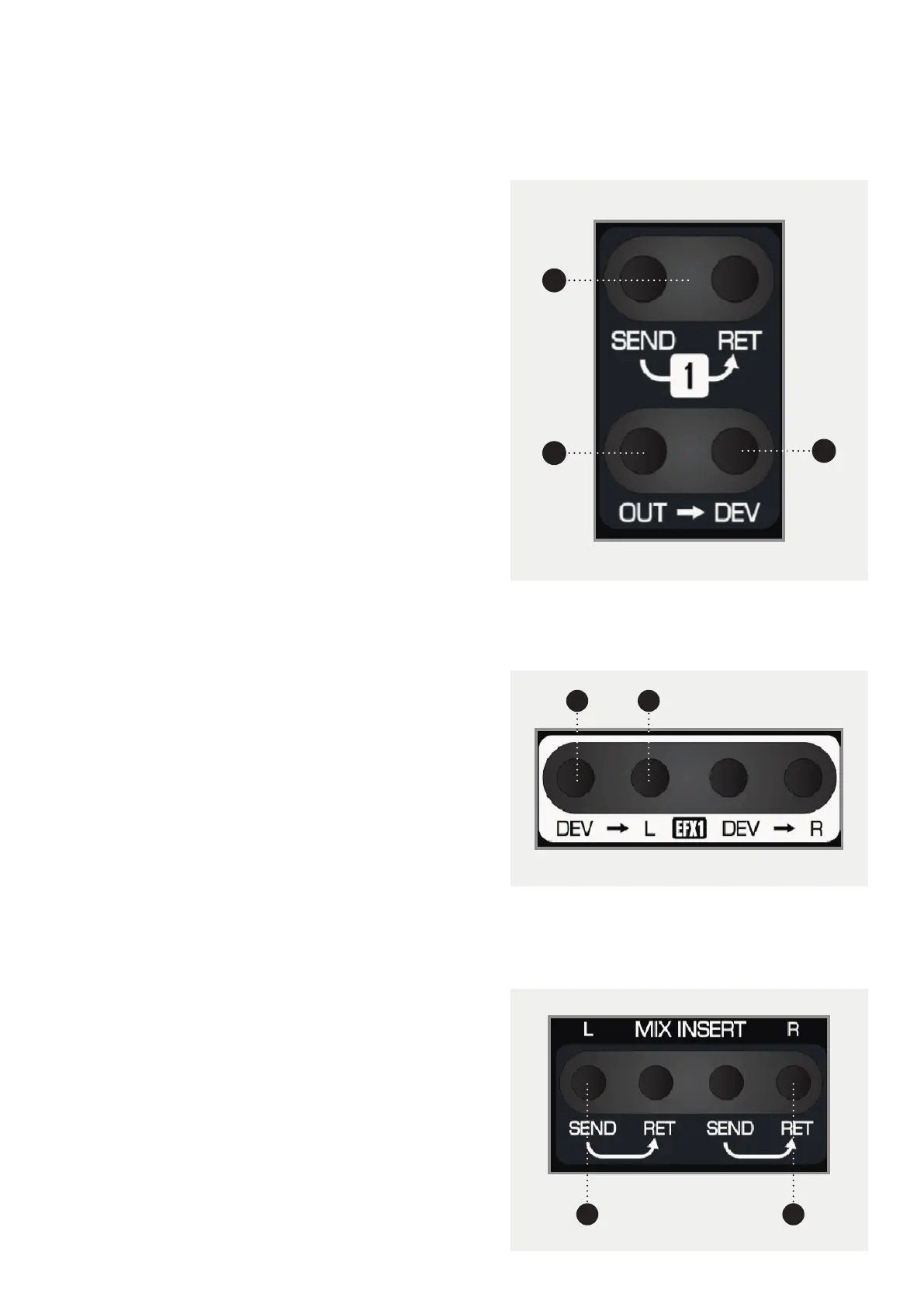

Sub Group Inserts and Outputs
Stereo Eects Inputs
4 DEV. This is the signal directly from the device
plugged into the Stereo Eects jack on the rear
of the console.
5 L, R. Left and right inputs for the Stereo Eects
Input.
1 SEND/RET. Each Sub Group has its own insert
point allowing you to send the Sub Group signal
to outboard gear.
2 OUT. The output of the Sub Group can be found
here, allowing you to send the Sub Group signal
anywhere on the Patchbay.
3 DEV. This output sends signal to whatever device
is connected to the Sub Group outputs. If nothing
is plugged into the ‘OUT’ jack, this is where the
Sub Group is sent to.
Main Mix Inserts
6 SEND The sends are found after the Heritage
Card in the signal chain, so if RETRO IRON is
engaged, it will be present on the sent signal.
7 RET The return comes before the Bus Compressor,
so any signal coming into the return will be
compressed if the Compressor is switched in.
4 5
2
3
1
6 7
