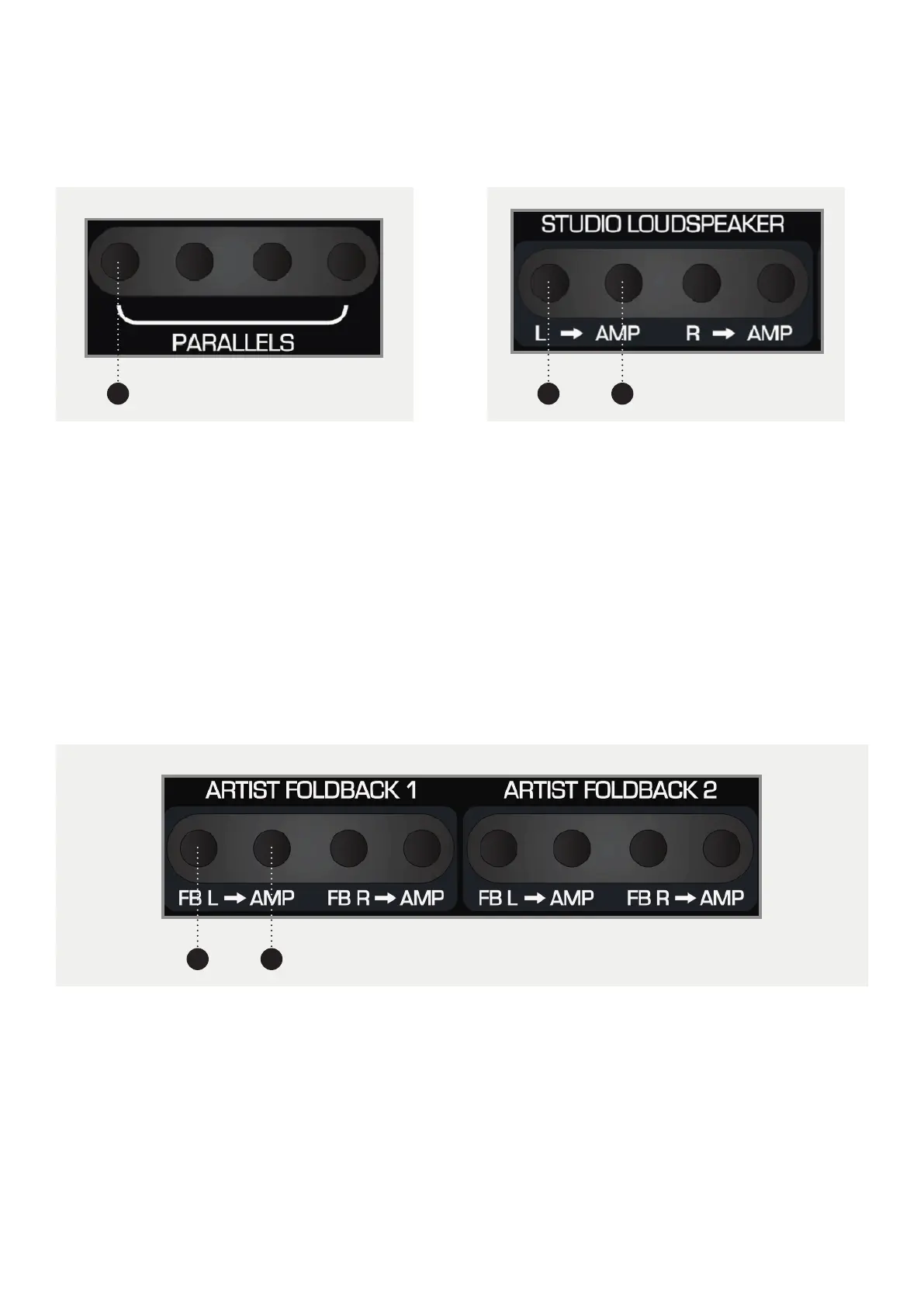

Parallels Studio Loudspeaker
2 L, R. The left and right channels of the Studio
Loudspeaker send.
3 AMP. A direct output to any equipment connected
to the Studio Loudspeaker connector on the
rear of the console. In most cases this will be an
amplifier for the speaker itself.
1 Any signal patched into one of the Parallel Jacks
will be sent out of the other three jacks allowing
signals to be duplicated. Do not plug in more than
one signal send at the same time as this will short
the outputs together!
Artist Foldback 1,2
4 FB L, FB R. The left and right channels of each
Foldback Send.
5 AMP. A direct output to the device connected
to the Foldback connectors on the rear of the
console. In most cases this will be a line level
headphone amplifier.
1 2 3
4 5
