50

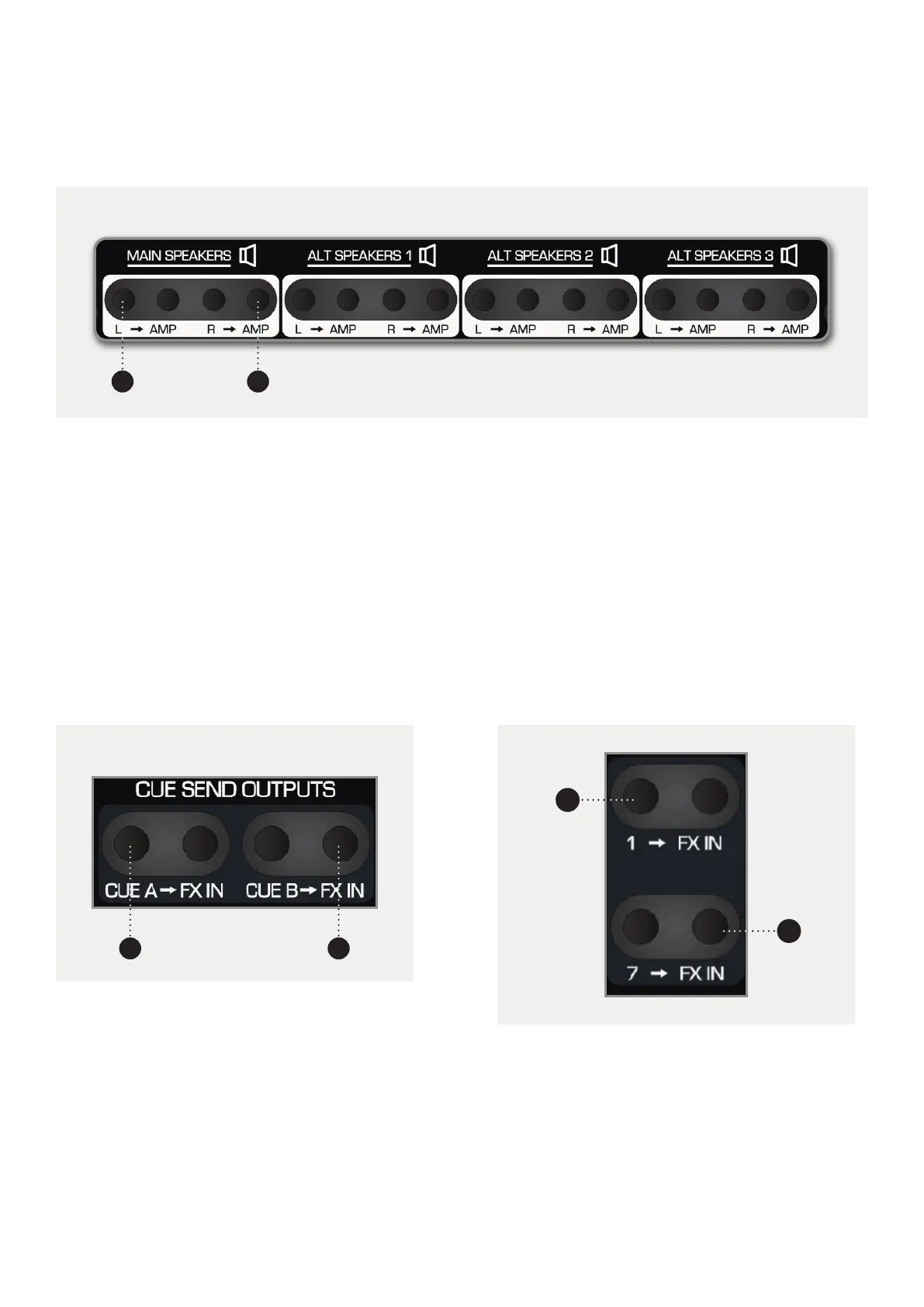

Cue Send Outputs
3 Cue A, B. The signals from the two Cue Mixes.
The send output is after the Cue Master Trim.
4 FX IN. Patches directly to the device plugged into
the Cue Outputs on the rear of the console.
AUX Send Outputs
5 1, 2, 3, 4..... ETC. The outputs from the 12 Aux Sends
found on each channel of the desk.
6 FX IN. Patches directly to the device plugged into
the Aux Outputs on the rear of the console.
Speaker Outputs
1 L, R. Contains the signal for the left and right
channels of the Speaker Outputs.
2 AMP. A direct output to any equipment
connected to the Speaker Connectors on the
rear of the console. In most cases this will be
an amplifier, either a stand alone unit or built
into a pair of active monitors.
1
3
2
4
6
5
