3.3 Rear Panel Description

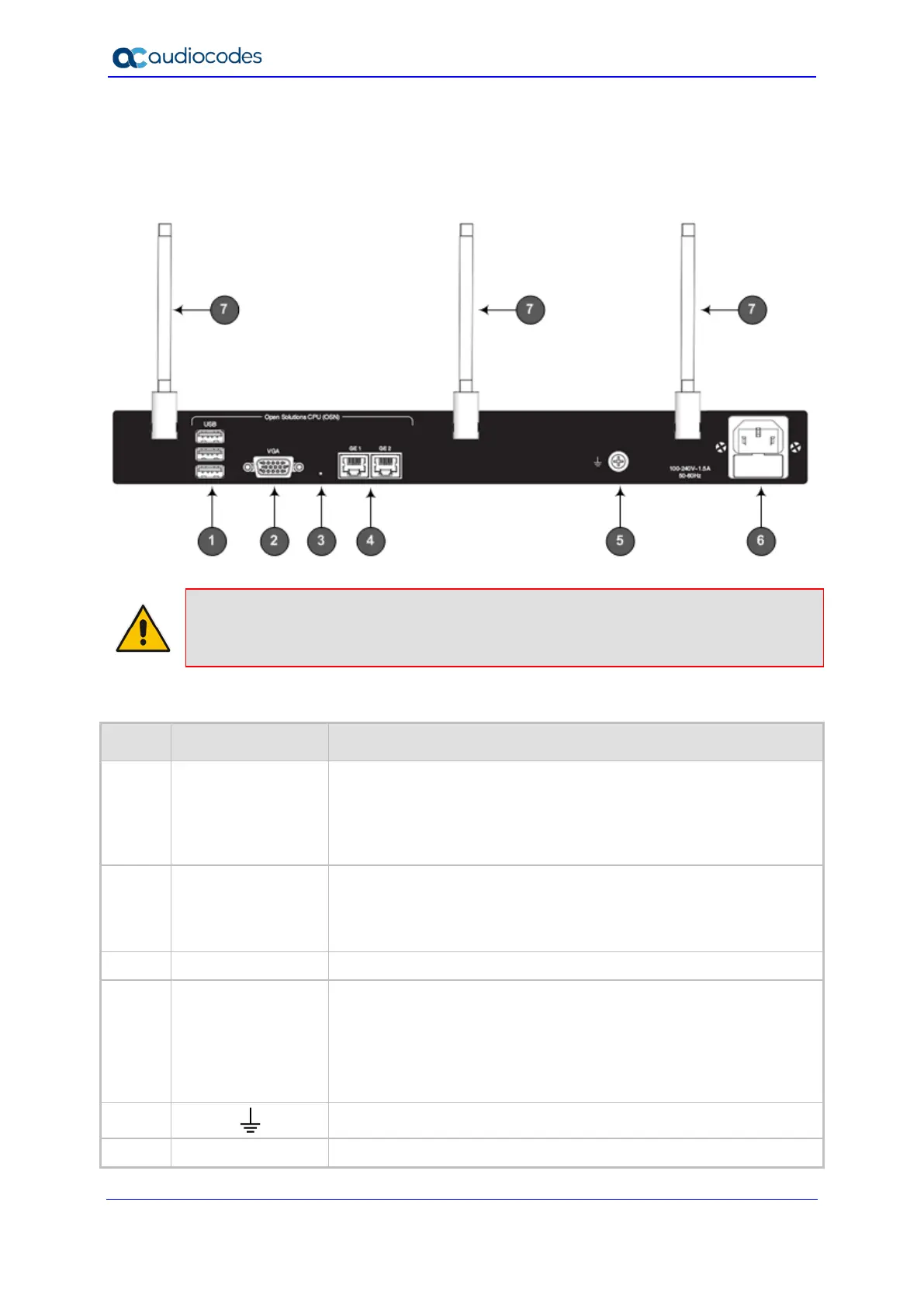

The device's rear panel is shown in the figure below and described in the subsequent table.
Figure 3-3: Rear Panel
Note: The figure above is used only as an example. The OSN server ports and Wi-Fi
antennas are customer ordered items.
Table 3-17: Rear Panel Description
Item # Label Description
1
OSN USB
Three USB ports (Standard-A type) for connecting computer
peripherals (e.g., mouse and keyboard). These are used when
implementing the OSN.
Note: These ports are available only if the device is equipped with
the OSN server (customer ordered).
2
OSN VGA
15-Pin DB-type female VGA port for connecting to a monitor
(screen). This port is used when implementing the OSN.
Note: This port is available only if the device is equipped with the
OSN server (customer ordered).
3
-
Reset button for resetting the OSN server.
4
GE 1
GE 2
10/100/1000Base-T Ethernet ports (RJ-45) for connecting directly to
the OSN server. For example, one port can be connected to the LAN
(to IP Phones) and the second port to the WAN interface (to an IP
PBX).
Note: The number of ports depends on ordered OSN server platform
(see Section 6.10 on page 55).
5
Protective earthing screw.
6
100-240V~1.5A
3-Prong AC power supply entry.
