AudioCodes Mediant 800 Hardware Installation Manual

MSBR Series 51 Mediant 800 MSBR
Hardware Installation Manual 6. Cabling the Device
6.8 Connecting the Serial Interface to a PC
The device provides an RS-232 serial interface port on its front panel for serial
communication with a PC. The serial port interface connector depends on your device's
hardware chassis platform:

Mediant 800B MSBR:
• Port Type: RJ-45
• Cable: RJ-45 to DB-9

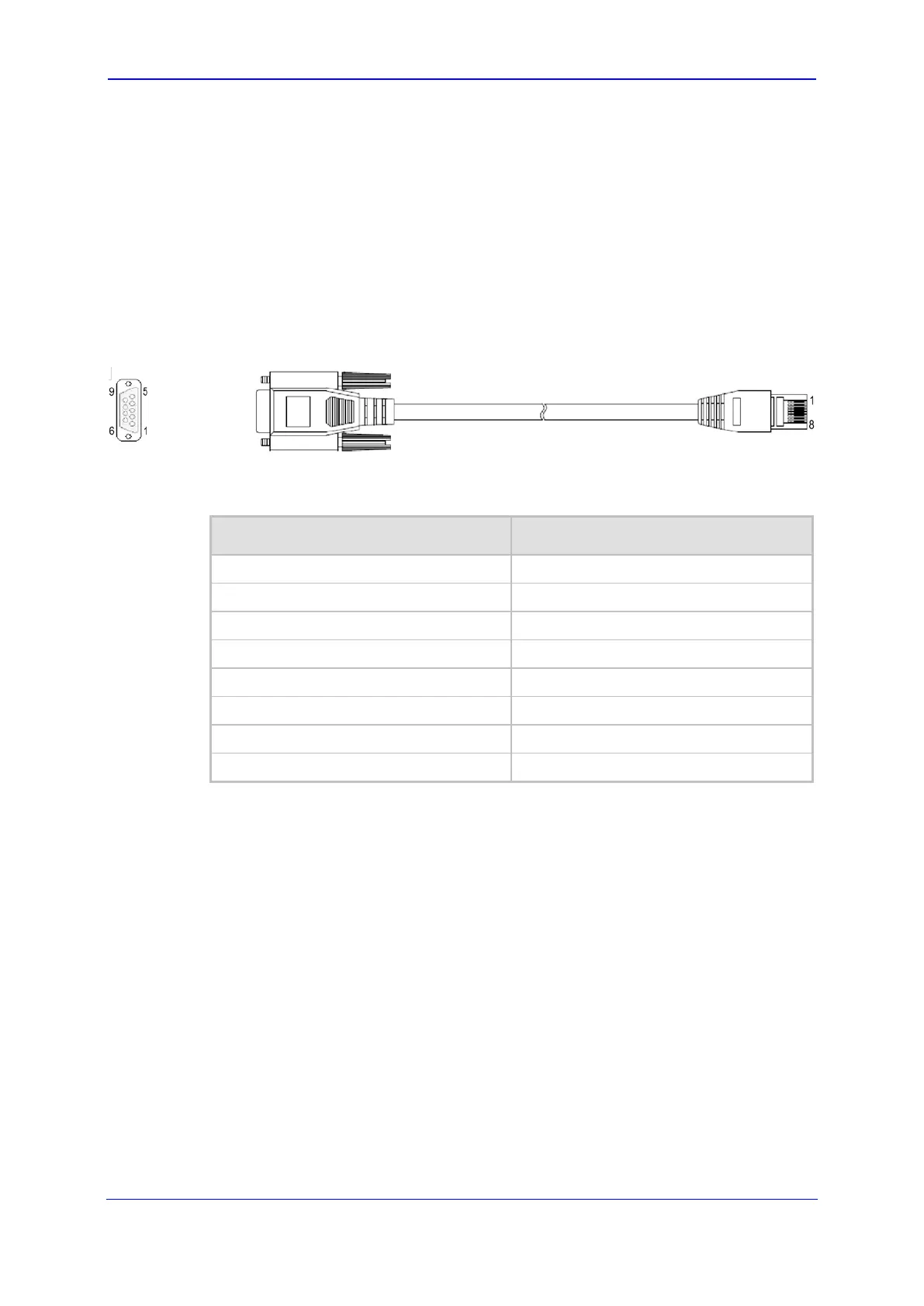

The serial cable adapter used for connecting the RS-232 interface is shown below:
Figure 6-23: RS-232 Cable Adapter
Table 6-6: RJ-45 to DB-9 Serial Cable Connector Pinouts
RJ-45 DB-9 Female
1 8
2 6
3 2
4 5
5 5
6 3
7 4
8 7

AudioCodes Mediant 800 Specifications

General

Protocols	SIP, H.323
Digital Interfaces	1/2 E1/T1 PRI
Management	Web, CLI, SNMP
Mounting	19-inch rack
Codecs	G.711, G.729, G.722, G.723.1
Power Supply	100-240V AC
Operating Temperature	0 to 40°C
Storage Temperature	-25 to 70°C
Humidity	10% to 90% non-condensing
