MSBR Series 43 Mediant 800 MSBR
Hardware Installation Manual 6. Cabling the Device
6.3 Connecting to LAN
The device provides up to four Gigabit Ethernet (10/100/1000Base-T) LAN RJ-45, ports and
eight RJ-45 10/100Base-TX (Fast Ethernet) LAN ports for connection to the LAN (e.g.,
computers, switches, and IP phones). These ports support half- and full-duplex modes,
auto-negotiation, and straight or crossover cable detection. The LAN ports can also support
PoE. For connecting PoE-enabled equipment to the LAN ports, see Section 6.4 on
page 44.
Cable specification:
Cable: Cat 5e or Cat 6 Ethernet cable
Connector: RJ-45
Connector Pinouts:
Table 6-5: RJ-45 Connector Pinouts for GbE/FE with PoE
Pin Signal Name
1
Ethernet signal pair (10/100/1000Base-T) and PoE NEG
2
3
Ethernet signal pair (10/100/1000Base-T) and PoE POS
6
4
Ethernet signal pair (1000Base-T)
5
7
Ethernet signal pair (1000Base-T)
8
Shield
Chassis ground
To connect the device to the LAN:
1. Connect one end of a straight-through RJ-45 Cat 5e or Cat 6 cable to the RJ-45 port
labeled GE (for Gigabit Ethernet ports) and/or FE (for Fast Ethernet ports).

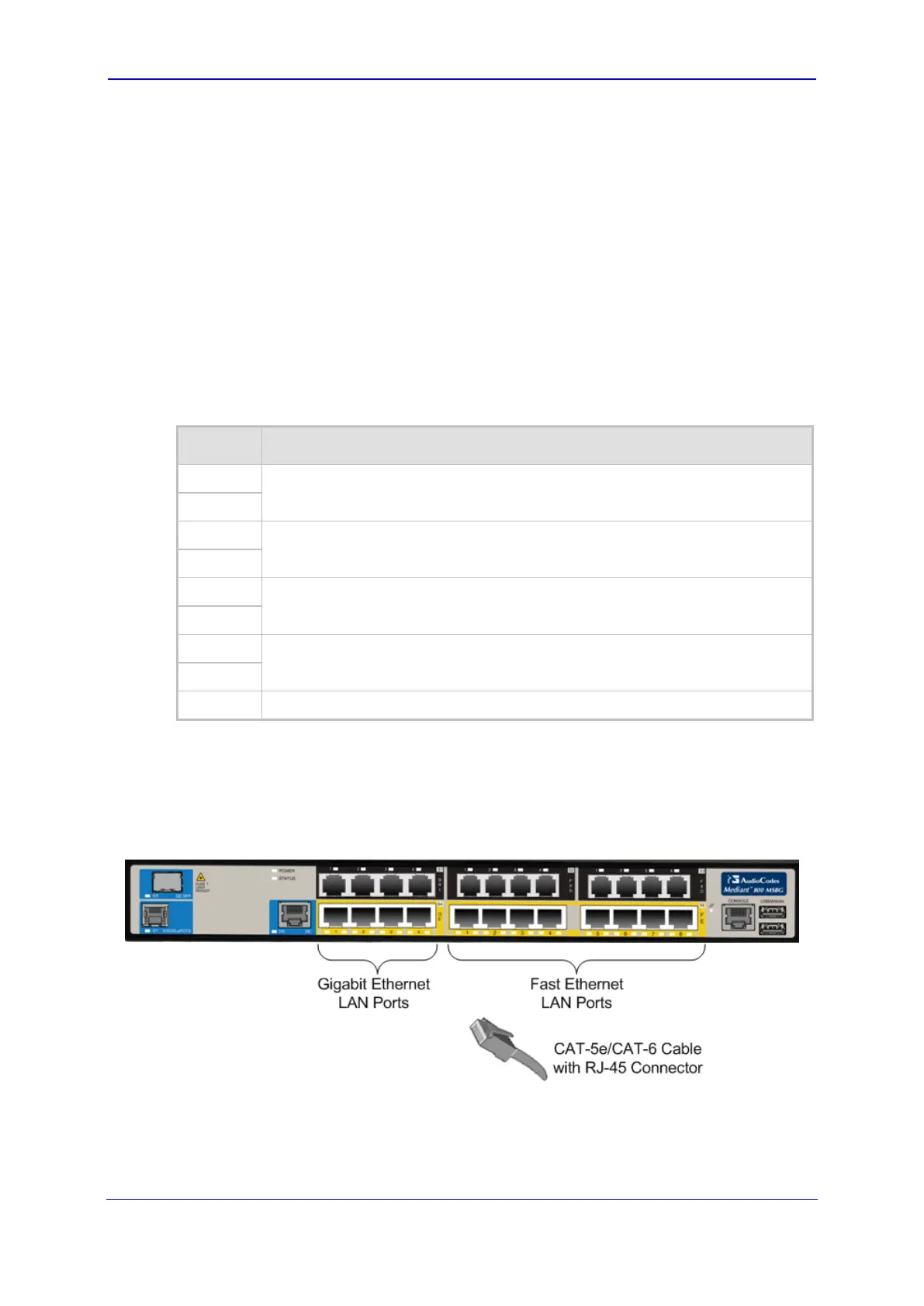

Figure 6-11: Cabling the LAN Ports
2. Connect the other end of the cable to the Gigabit Ethernet network (for the GE ports)
and/or Fast Ethernet network (for the FE ports).
